Product Details
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-AB
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With NITTO HI-CUPLA Series, CEJN 315 Series |
Material: |
Brass |
Size: |
1/8"-1/2" |
WP: |
Working Pressure To145 Psi (10 Bar) |
Standard: |
Compatible With NITTO HI-CUPLA Series, CEJN 315 Series |
Material: |
Brass |
Size: |
1/8"-1/2" |
WP: |
Working Pressure To145 Psi (10 Bar) |

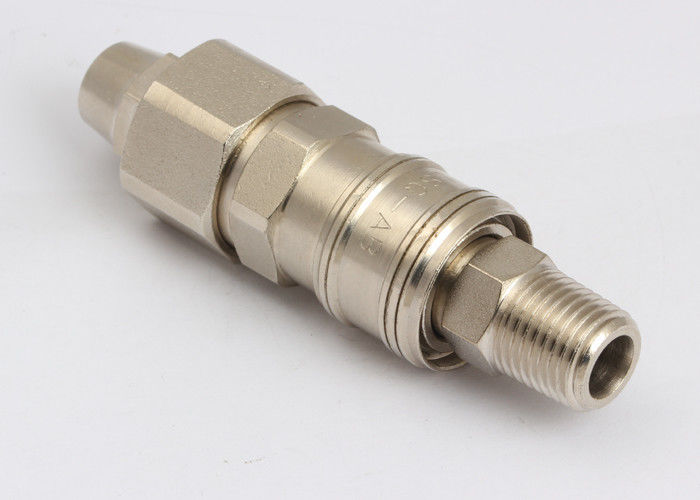

LSQ-AB Nitto Hi-Cupla, Semi-Automatic Type, Pneumatic Quick Couplings in Brass, Nickle plated
Descripton:
LSQ-AB single handed and semiautomatic type quick coupling(brass)
→ Features: Single hand operation.
→ Advantages: single hand operation
→ Application: pneumatic tools
→ Interchangeability: Nitto HI-CUPLA series, CEJN 315 Series. Rectus 13KA series.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.
PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
LSQ-AB-01SH | 72 | 22 | 22 | 20 | 7 | 3 |
LSQ-AB-02SH | 77 | 22 | 22 | 25 | 9 | 5 |
LSQ-AB-03SH | 77 | 22 | 22 | 25 | 11.2 | 7 |
PARTNO. | LS | ¢D | HEX1 | A | T(BSP) | d |
LSQ-AB-02SF | 60 | 22 | 22 | 13 | BSP1/4" | 10 |
LSQ-AB-03SF | 60 | 22 | 22 | 13 | BSP3/8" | 10 |
LSQ-AB-04SF | 62 | 22 | 22 | 14 | BSP1/2" | 10 |
PARTNO. | LS | ¢D | HEX1 | A | T(PT) | d |
LSQ-AB-02SM | 60 | 22 | 22 | 13 | PT1/4" | 7 |
LSQ-AB-03SM | 60 | 22 | 22 | 13 | PT3/8" | 10 |
LSQ-AB-04SM | 61 | 22 | 22 | 14 | PT1/2" | 14 |
PARTNO. | LS | ¢D | HEX1 | A | T(BSP) | d |
LSQ-AB-01SP | 60 | 22 | 22 | 13 | 6*4 | 2.8 |
LSQ-AB-02SP | 62 | 22 | 22 | 15 | 8*5 | 3.8 |
LSQ-AB-03SP | 64 | 22 | 22 | 17 | 10*6.5 | 5 |
LSQ-AB-04SP | 64 | 22 | 22 | 17 | 12*8 | 6.5 |
PARTNO. | LP | C | CP | A | ¢T | d |
LSQ-AB-01PH | 47.5 | 20.5 | ¢16 | 20 | 7 | 7.5 |
LSQ-AB-02PH | 52.5 | 20.5 | ¢16 | 25 | 9 | 7.5 |
LSQ-AB-03PH | 52.5 | 20.5 | ¢16 | 25 | 11.2 | 7.5 |
PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
LSQ-AB-02PF | 36.5 | 20.5 | 17 | 13 | BSP1/4" | 7.5 |
LSQ-AB-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8" | 7.5 |
LSQ-AB-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2" | 7.5 |
PARTNO. | LP | C | HEX2 | A | T(PT) | d |
LSQ-AB-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4" | 7.5 |
LSQ-AB-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8" | 7.5 |
LSQ-AB-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2" | 7.5 |
PARTNO. | LP | C | HEX2 | A | T | d |
LSQ-AB-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
LSQ-AB-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
LSQ-AB-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
LSQ-AB-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
