Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: QKD-Z

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Payment Terms: L/C, T/T

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

air quick disconnect couplings

,

parker quick disconnect couplings

Material:
Carbon Steel
Standard:
Chinese Standard
WP:
Working Pressures To 3.5MPA
WT:
-20℃ To +120℃
Material:
Carbon Steel
Standard:
Chinese Standard
WP:
Working Pressures To 3.5MPA
WT:
-20℃ To +120℃
Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel

QKD-Z Semi-Automatic type Pneumatic couplings in Carbon Steel, Chrome Plated



Descripton:

QKD-Z SINGLE HANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(STEEL)
→ Features: Single hang operation.
→ Advantages: Single hand operation. High flow valve.
→ Application: steel manufacture, metallurgy, machinery equipments.
→ Working Pressure:3.5MPa.
→ Working Temperature: -20℃ to +120℃.

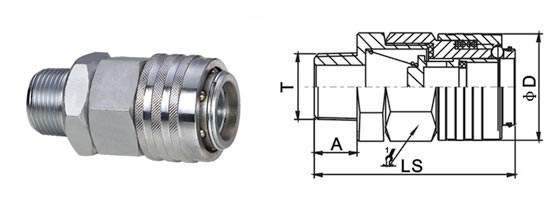

Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel 0

PARTNO. LS ¢D HEX1 A T
QKD-Z-SM 99 57.5 46 21 ZG1"

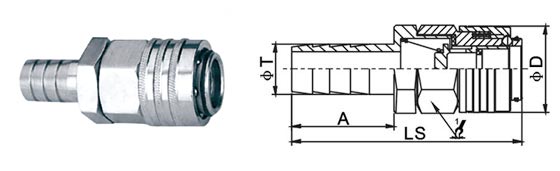

Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel 1

PARTNO. LS ¢D HEX1 A ¢T
QKD-Z-SH 134.5 50.5 46 57.5 27

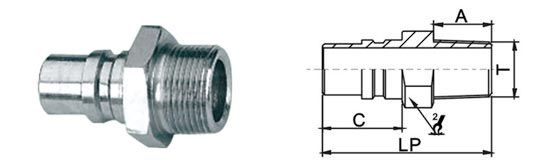

Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel 2

PARTNO. LP A HEX1 C T
QKD-Z-PM 72.5 21 36 37.5 ZG1"

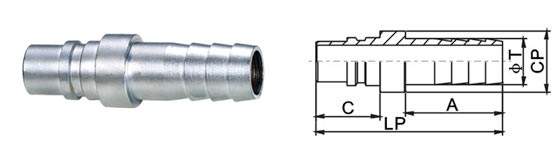

Semi - Automatic Type Pneumatic Quick Disconnect Couplings QKD-Z In Carbon Steel 3

PARTNO. LP A C CP ¢T
QKD-Z-PH 110 57.5 37.5 34.5 27
