Product Details
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-C
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With NITTO HI-CUPLA Series, CEJN 315 Series |
Material: |
Carbon Steel |
Size: |
1/8"-1/2" |
WP: |
Working Pressure To145 Psi (10 Bar) |
Standard: |
Compatible With NITTO HI-CUPLA Series, CEJN 315 Series |
Material: |
Carbon Steel |
Size: |
1/8"-1/2" |
WP: |
Working Pressure To145 Psi (10 Bar) |

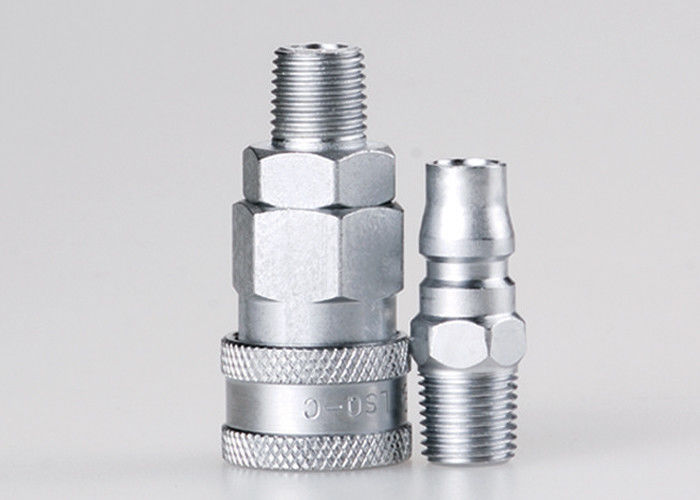

LSQ-C Nitto Hi-Cupla, Manual Type, Pneumatic Couplings in Carbon Steel, Chrome Three
Descripton:
LSQ-C SINGLE SHUT-OFF PNEUMATIC QUICK COUPLING(STEEL)
→Features: it is widely used in Asia Market.
→Advantages: Simple structure, light weight, various of connection.
→ Application: pneumatic tools, automotive, compressed air, machinery equipments and compressor.
→ Interchangeability: Nitto HI-CUPLA series, CEJN 315 Series. Rectus 13KA series.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.
→ SS304 and brass material is optional

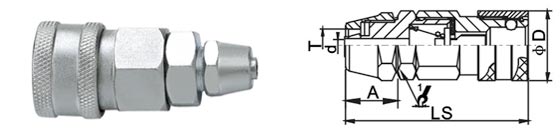

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-C-01SH | 62 | 25.5 | 19 | 20 | 7 | 4 |
| LSQ-C-02SH | 67.5 | 25.5 | 19 | 25 | 9 | 5 |
| LSQ-C-03SH | 67.5 | 25.5 | 19 | 25 | 11 | 7 |

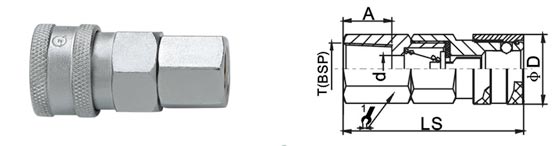

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-C-02SF | 52.5 | 25.5 | 19 | 13 | BSP1/4"19P | 9 |
| LSQ-C-03SF | 52.5 | 25.5 | 19 | 15 | BSP3/8"19P | 9 |
| LSQ-C-04SF | 55.5 | 25.5 | 24 | 16 | BSP1/2"14P | 9 |

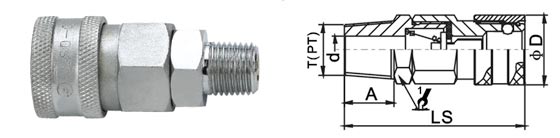

| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | d |
| LSQ-C-02SM | 55.5 | 25.5 | 19 | 13 | PT1/4"19P | 7 |
| LSQ-C-03SM | 56 | 25.5 | 19 | 13 | PT3/8"19P | 10 |
| LSQ-C-04SM | 58.8 | 25.5 | 22 | 16 | PT1/2"14P | 14 |

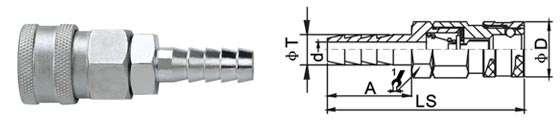

| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-C-01SP | 56.5 | 25.5 | 19 | 14 | 6*4 | 2.8 |
| LSQ-C-02SP | 57.5 | 25.5 | 19 | 15 | 8*5 | 4 |
| LSQ-C-03SP | 59.5 | 25.5 | 19 | 17 | 10*6.5 | 5 |
| LSQ-C-04SP | 61.5 | 25.5 | 19 | 19 | 12*8 | 6.5 |

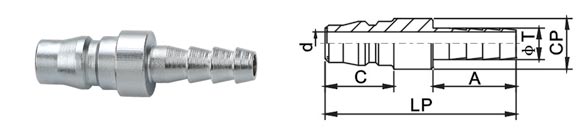

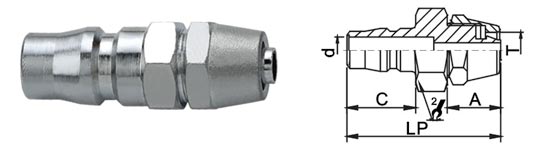

| PARTNO. | LP | C | CP | A | ￠T | d |
| LSQ-C-01PH | 47.5 | 20.5 | ￠116 | 20 | 7 | 7.5 |
| LSQ-C-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-C-03PH | 52.5 | 20.5 | ￠16 | 25 | 11 | 7.5 |

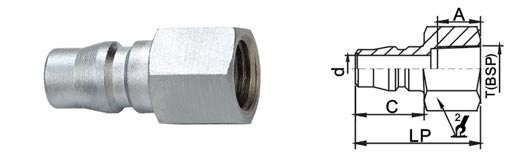

| PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
| LSQ-C-02PF | 36.5 | 20.5 | 17 | 15 | BSP1/4"19P | 7.5 |
| LSQ-C-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8"19P | 7.5 |
| LSQ-C-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2"14P | 7.5 |

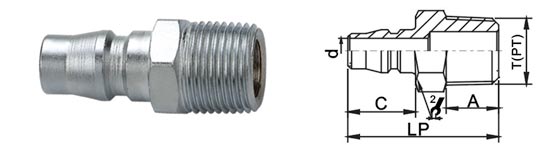

| PARTNO. | LP | C | HEX2 | A | T(PT) | d |
| LSQ-C-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4"19P | 7.5 |
| LSQ-C-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8"19P | 7.5 |
| LSQ-C-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2"14P | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-C-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-C-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-C-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-C-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
