Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: QKD-X

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Payment Terms: L/C, T/T

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

air quick disconnect couplings

,

parker quick disconnect couplings

Material:
Brand
Standard:
Compatible With Rectus 21KA Series
WP:
Working Pressures To 1MPA
WT:
-20℃ To +120℃
Material:
Brand
Standard:
Compatible With Rectus 21KA Series
WP:
Working Pressures To 1MPA
WT:
-20℃ To +120℃
Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air

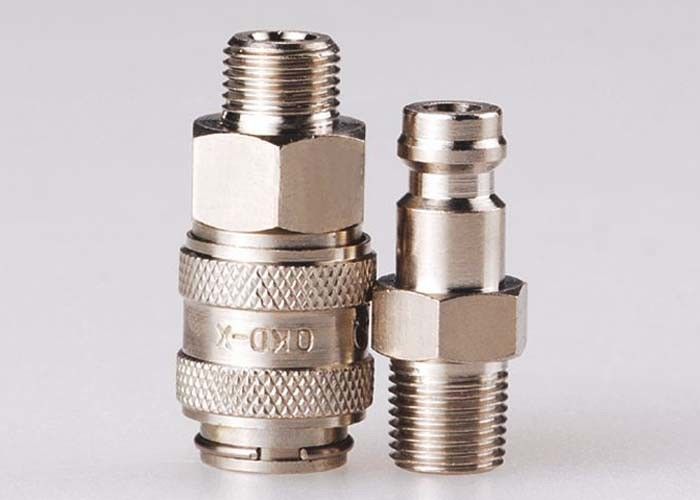

QKD-X Semi-Automatic type, Textile Equipment Type, Pneumatic couplings in Brass, Nickle plated



Descripton:

QKD-X MINI TYPE SINGLE HANDED AND SEMIAUTOMATIC PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Single hang operation, it suitable used in restricted space, straight through, single shut-off.
→ Advantages: Single hand operation. Small dimensions,High flow valve,various of connections.
→ Application: medical equipments,dentistry equipments,laboratory equipments, chemical, measure and control equipments, analyze project, mini-pneumatic, machinery equipments.
→ Interchangeability: Rectus 21KA series
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.

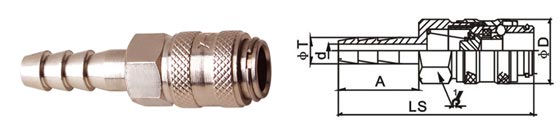

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 0

PARTNO. LS ¢D HEX1 A ¢T d
QKD-X-01SH 55 16 14 20 6.3 ¢3.8
QKD-X-02SH 57 16 14 25 9 ¢4.8

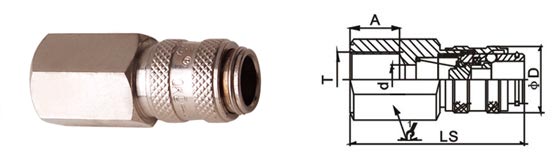

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 1

PARTNO. LS ¢D HEX1 A T d
QKD-X-01SF 43.5 16 14 10 G1/8 ¢5
QKD-X-02SF 41 16 17 12 G1/4 ¢7

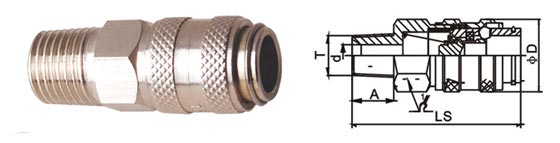

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 2

PARTNO. LS ¢D HEX1 A T(BSP) d
QKD-X-01SM 40 16 14 9 ZG1/8 ¢5
QKD-X-02SM 41 16 14 13 ZG1/4 ¢7

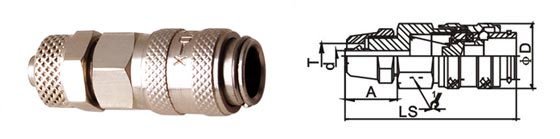

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 3

PARTNO. LS ¢D HEX1 A T) d
QKD-X-01SP 46 16 14 13 6*4 ¢2.8
QKD-X-02SP 48 16 14 15 8*6 ¢4.8

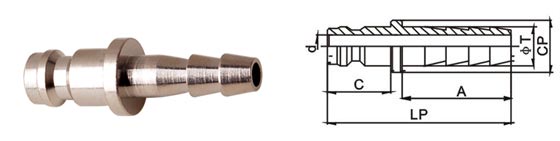

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 4

PARTNO. LP C CP A ¢T d
QKD-X-01PH 37 14.3 ¢12 20 6.3 ¢3.8
QKD-X-02PH 42 14.3 ¢12 25 9 ¢5

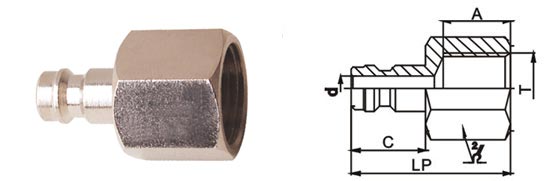

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 5

PARTNO. LP C HEX2 A T d
QKD-X-01PF 27.5 14.3 14 10 G1/8 ¢4.8
QKD-X-02PF 30.5 14.3 17 13 G1/4 ¢4.8

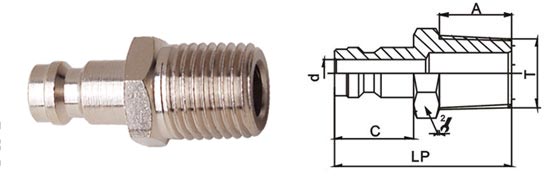

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 6

PARTNO. LP C HEX2 A T d
QKD-X-01PM 29.5 14.3 10 9.5 ZG1/8 ¢4.8
QKD-X-02PM 32 14.3 14 13 ZG1/4 ¢4.8

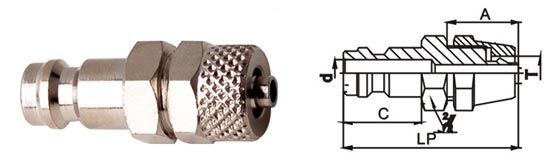

Straight Through Pneumatic Quick Disconnect Couplings , High Flow Quick Disconnect Air 7

PARTNO. LP C HEX2 A T d
QKD-X-01PP 32 14.3 12 13 6*4 2.8
QKD-X-02PP 34 14.3 14 15 8*6 ¢4.8
