Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: QKD-T
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Material: |
Carbon Steel |
Standard: |
Chinese Standard |
WP: |
Working Pressures To 3.5MPA |
WT: |
-20℃ To +120℃ |
Material: |
Carbon Steel |
Standard: |
Chinese Standard |
WP: |
Working Pressures To 3.5MPA |
WT: |
-20℃ To +120℃ |

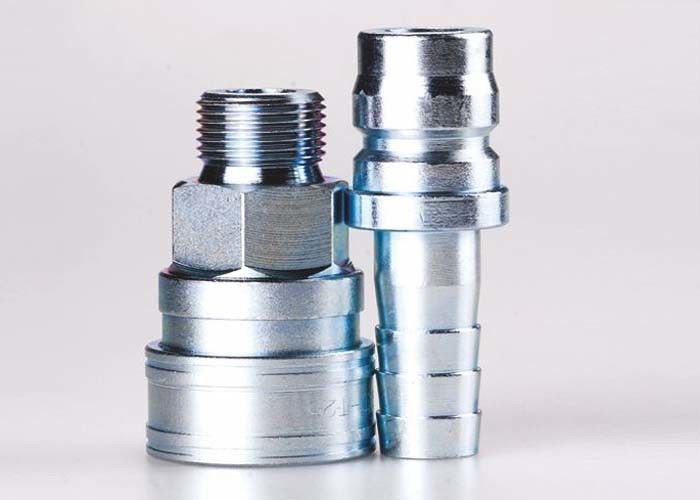

QKD-T High Flow, Non-Valve type Pneumatic couplings in Carbon Steel, Chrome Plated
Descripton:
QKD-T PNEUMATIC QUICK COUPLING(STEEL)
Features: straight through. Non valve.
Advantages: simple structure. High flow valve.
Application: steel manufacture, metallurgy, machinery equipments.
Working Pressure: 3.5Mpa.
Working Temperature: -20℃ to +120℃.

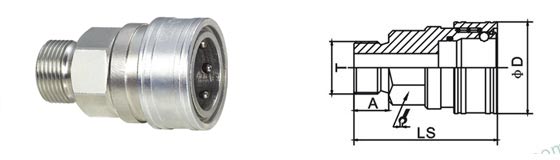

| PARTNO. | LS | A | ￠D | HEX | T |
| QKD-T25-SM | 91 | 22 | 58 | 41 | G1" |

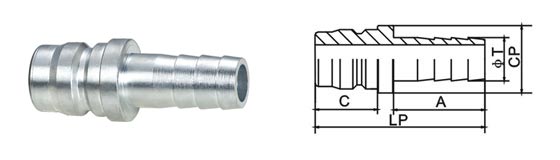

| PARTNO. | LP | A | C | CP | ￠T |
| QKD-T25-PH | 106 | 57 | 39 | 42 | 27 |

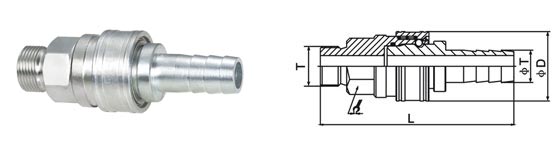

| PARTNO. | L | T | ￠D | HEX | ￠T |
| QKD-T25 | 160 | G1" | 58 | 41 | 27 |
