Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: QKD-158
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Material: |
Carbon Steel |
Standard: |
Chinese Standard |
WP: |
Working Pressures To 1MPA |
WT: |
-20℃ To +120℃ |
Material: |
Carbon Steel |
Standard: |
Chinese Standard |
WP: |
Working Pressures To 1MPA |
WT: |
-20℃ To +120℃ |
QKD-158 Chinese Type Pneumatic Couplings in Carbon Steel, Chrome Plated(LARGE TYPE)
Descripton:
QKD158 SINGLE SHUT-OFF PNEUMATIC QUICK COUPLING(SMALL)(STEEL)
→ Features: it is widely used in China Market.
→ Advantages: Simple structure, various of connections.
→ Application: pneumatic tools, automotive, compressd air, shipbuilding.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.

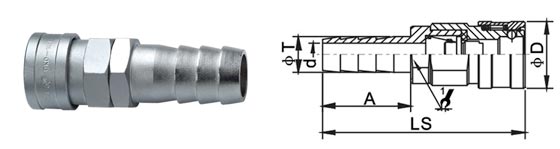

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| QKD158-06SH | 91 | 36 | 32 | 40 | 20.5 | 14 |
| QKD158-08SH | 101 | 36 | 32 | 50 | 27 | 20 |

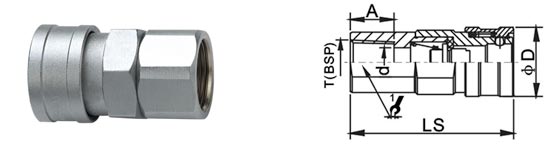

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| QKD158-06SF | 61 | 36 | 32 | 16 | BSP3/4"14P | 14 |
| QKD158-08SF | 64 | 36 | 36 | 20 | BSP1"11P | 14 |

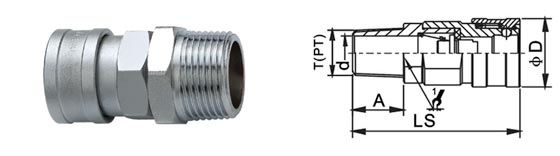

| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | d |
| QKD158-06SM | 64 | 36 | 30 | 16 | PT3/4"14P | 18 |
| QKD158-08SM | 70 | 36 | 36 | 20 | PT1"11P | 25 |

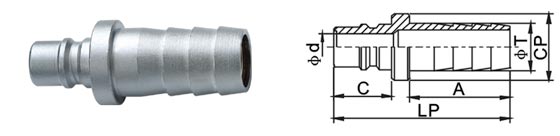

| PARTNO. | LP | C | CP | A | T | d |
| QKD158-06PH | 75 | 26 | 29.6 | 40 | 20.5 | 10.5 |
| QKD158-08PH | 85 | 26 | 33.6 | 50 | 27 | 10.5 |

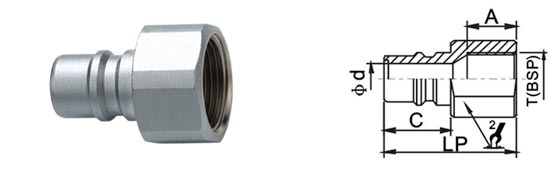

| PARTNO. | LP | C | HEX2 | A | T(BPS) | d |
| QKD158-06PF | 46 | 26 | 32 | 16 | BPS2/4"14P | 10.5 |
| QKD158-08PF | 51 | 26 | 36 | 20 | BPS1"11P | 10.5 |

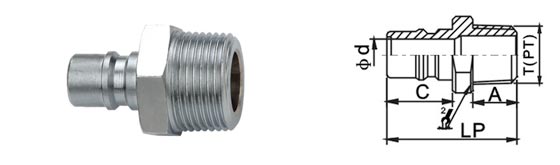

| PARTNO. | LP | C | HEX2 | T(PT) | d |
| QKD158-06PM | 50 | 26 | 27 | PT3/414P | 10.5 |
| QKD158-08PM | 56 | 26 | 36 | PT1"11P | 10.5 |
