1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: QKD-156

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Payment Terms: L/C, T/T

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

industrial quick disconnect couplings

,

parker quick disconnect couplings

Material:
Carbon Steel
Standard:
Chinese Standard
WP:
Working Pressures To 1MPA
WT:
-20℃ To +120℃
Material:
Carbon Steel
Standard:
Chinese Standard
WP:
Working Pressures To 1MPA
WT:
-20℃ To +120℃
1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling

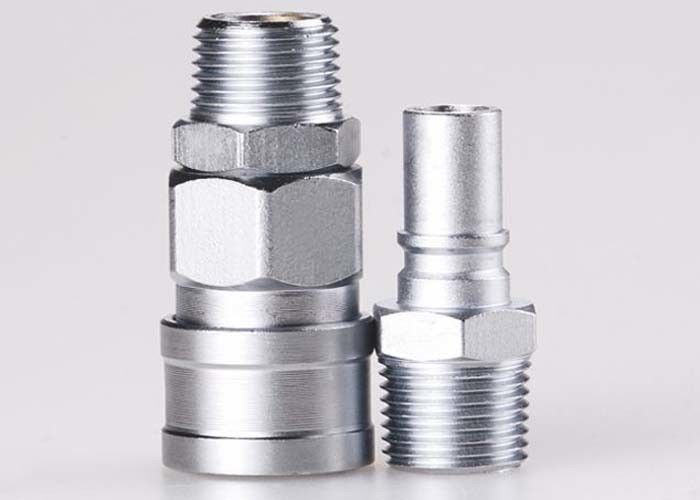

QKD-156 Chinese Type Pneumatic Couplings in Carbon Steel, Chrome Plated(MEDIUM TYPE)



Descripton:

QKD156 SINGLE SHUT-OFF PNEUMATIC QUICK COUPLING(MEDIUM)(STEEL)
→ Features: it is widely used in China Market.
→ Advantages: Simple structure, various of connections
→ Application: pneumatic tools, automotive, compressd air, shipbuilding.
→ Working Pressure:1.0MPa
→ Working Temperature: -20℃ to +120℃

1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 0

PARTNO. LS ¢D HEX1 A ¢T d
QKD156-04SH 77.5 30 24 30 16 10
QKD156-06SH 87.5 30 24 40 20.5 14


1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 1

PARTNO. LS ¢D HEX1 A T(BSP) d
QKD156-04SF 63.5 30 24 14 BSP1/2"14P 12
QKD156-06SF 65.5 30 30 16 BSP3/4"14P 12


1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 2

PARTNO. LS ¢D HEX1 A T(PT) d
QKD156-04SM 65.5 30 24 14 PT1/2"14P 11
QKD156-06SM 67.5 30 27 18 PT3/4"14P 11


1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 3

PARTNO. LP C CP A ¢T d
QKD156-04PH 65 27 24 30 16 8.5
QKD156-06PH 75 27 24 40 20.5 8.5


1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 4

PARTNO. LP C HEX2 A T(BPS) d
QKD156-04PF 45 27 24 14 BPS1/2"14P 8.5
QKD156-06PF 47 27 30 16 BPS3/4"14P 8.5


1.0 MPa Pneumatic Quick Disconnect Couplings , Medium Type Quick Connect Coupling 5

PARTNO. LP C HEX2 A T(PT) d
QKD156-04PM 50 27 22 16 PT1/2"14P 8.5
QKD156-06PM 52 27 27 18 PT3/4"14P 8.5
