Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-DD

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop

Get Best Price
High Light:

female quick release coupling

,

brass quick release coupling

Standard:
KOREA STANDARD
WP:
1.0Mpa
Material:
Brass
WT:
-20C To +120C
Standard:
KOREA STANDARD
WP:
1.0Mpa
Material:
Brass
WT:
-20C To +120C
Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors

LSQ-DD Shipping Building, Korean Type, Pneumatic couplings in Brass, Nickle plated



Descripton:

LSQ-DD CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Professional design for torch in shipbuilding industry, the plug have check valve and it can stop airflow automatically. DD5 is used for acetylene. DD11 is used for oxygen. It is widely used in Korea market.
→ Advantages: Single hand operation, DD5 have check valve and black valve to reach double insurance.
→ Application: Shipbuilding and ship repairing.
→ Working Pressure: 1.0Mpa
→ Working Temperature: -20℃ to +120℃
Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors 0

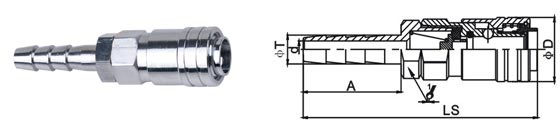

PARTNO. LS ¢D HEX1 A ¢T d
LSQ-DD5-SH 71.8 20 16 30 8.5 ¢5

Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors 1

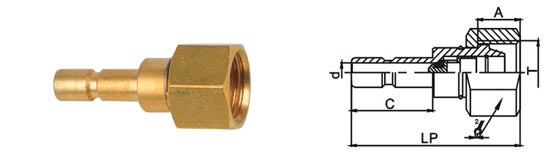

PARTNO. LP C HEX2 A T d
LSQ-DD5-PF 44 21.2 19 11 M16*1.5 ¢5.8


Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors 2

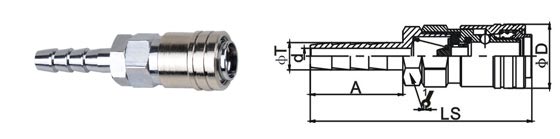

PARTNO. LS ¢D HEX1 A ¢T d
LSQ-DD11-SH 72 19 15 30 8.5 ¢5


Korean Type Pneumatic Quick Release Coupling , LSQ-DD Nickle Plated Pneumatic Connectors 3

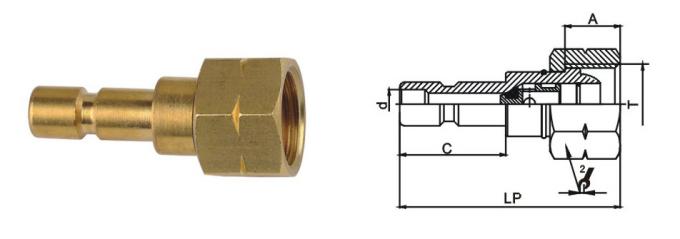

PARTNO. LP C HEX2 A T d
LSQ-DD11-PF 44 21.2 19 11 M16*1.5 ¢4.8
