Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-Q2
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Standard: |
Parker MOLDMATE Series |
WP: |
1.5Mpa |
Material: |
Brass |
WT: |
-15C To +150C |
Standard: |
Parker MOLDMATE Series |
WP: |
1.5Mpa |
Material: |
Brass |
WT: |
-15C To +150C |
LSQ-Q2 Mold Coolant Purpose Type, Parker Moldmate Series, Pneumatic Couplings in Brass(MEDIUM TYPE)
Descripton:
LSQ-Q2 MOULD QUICK COUPLING(MEDIUM)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine.
→ Advantages: simple structure. High flow. Non-valve.
→ Application: the line of modular, cooling system.
→ Interchangeability: PARKER MOLDMATE series.
→ Working Pressure: 1.5Mpa.
→ Working Temperature: -15℃ to +150℃.

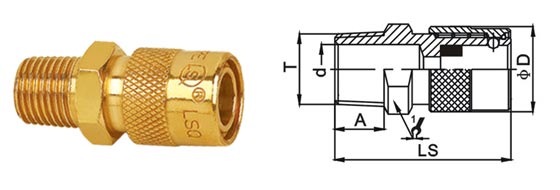

| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-Q2-03SM | 49 | 24 | 22 | 13 | ZG3/8 | ￠10 |
| LSQ-Q2-04SM | 50 | 24 | 22 | 14 | ZG1/2 | ￠14 |

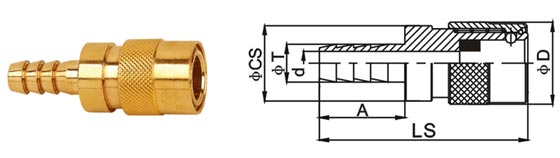

| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| LSQ-Q2-03SH | 61 | 24 | 22 | 25 | 11 | ￠7 |
| LSQ-Q2-04SH | 61 | 24 | 22 | 25 | 13.5 | ￠9.5 |

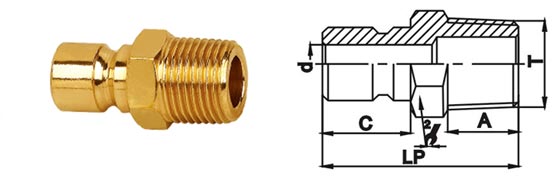

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-Q2-03PM | 36 | 16.2 | 17 | 13 | ZG3/8 | ￠7 |
| LSQ-Q2-04PM | 38 | 16.2 | 22 | 16 | ZG1/2 | ￠7 |

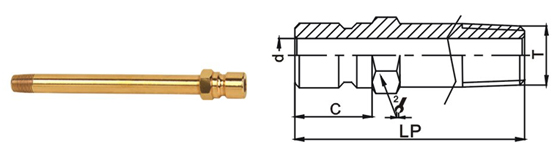

| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-Q2-03PM | 75 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 100 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 125 | 16.2 | 17 | ZG3/8 | ￠7 |
| LSQ-Q2-03PM | 150 | 16.2 | 17 | ZG3/8 | ￠7 |

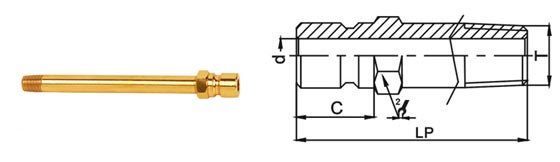

| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-Q2-04PM | 75 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 100 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 125 | 16.2 | 22 | ZG1/2 | ￠7 |
| LSQ-Q2-04PM | 150 | 16.2 | 22 | ZG1/2 | ￠7 |
