Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-CC
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Standard: |
CHINESE STANDARD |
WP: |
1.0Mpa |
Material: |
Brass |
WT: |
-20C To +120C |
Standard: |
CHINESE STANDARD |
WP: |
1.0Mpa |
Material: |
Brass |
WT: |
-20C To +120C |
LSQ-CC Shipping Building's Pneumatic couplings in Brass, Nickle plated
Descripton:
LSQ-CC CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)

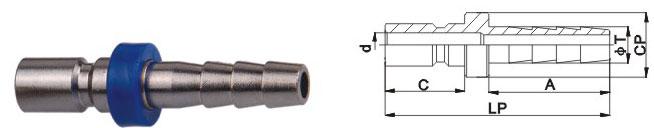

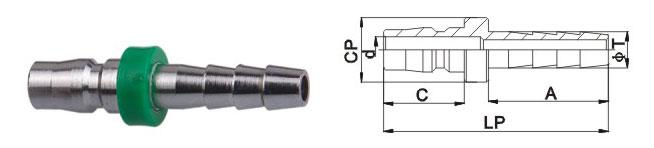

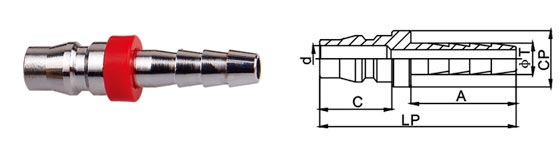

→ Features: Various specification, it use difference color to distinguish the medium. Blue couplings use for carbon dioxide. Red coupings use for acetylene. Green couplings use for oxygen and non-plastic cover coupings use for water and air.
→ Advantages: it use the color to distinguish the medium, and each are diference size to avoid wrong connection, flexible and safty.
→ Application: Shipping manufacturting, repairing and other industry system need to avoid wrong connecting.
→ Working Pressure:1.0Mpa
→ Working Temerature: -20℃+120℃

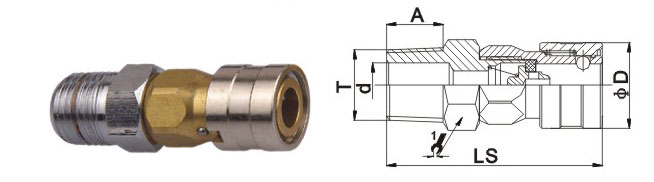

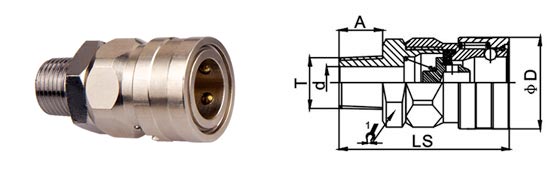

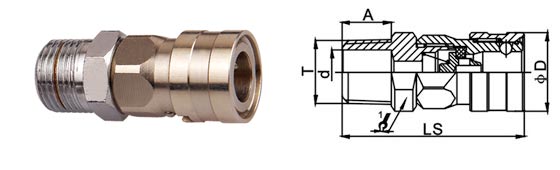

| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC1-SM | 66.2 | 36 | 30 | 17 | ZG1/2 | ￠13 |
| PARTNO. | LS | A | C | CP | ￠T | D |
| LSQ-CC3-PH | 65.6 | 34 | 23.5 | ￠22 | 14 | ￠128 |

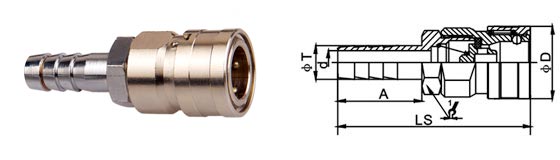

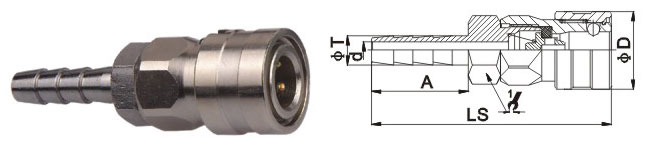

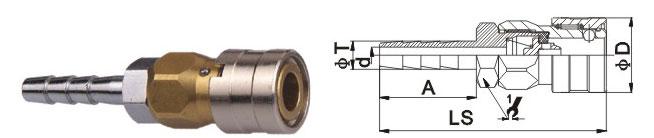

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC4-SH | 80 | 30 | 24 | 36 | 13.5 | ￠9 |

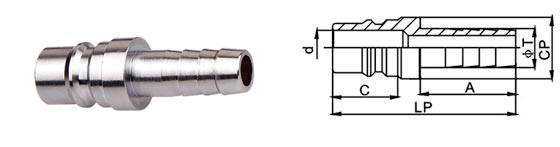

| PARTNO. | LP | A | C | CP | ￠T | d |
| LSQ-CC2-PH | 63 | 33.5 | 21.5 | ￠20 | 14 | ￠10 |
| PARTNO. | LP | ￠D | HEX1 | A | T | d |
| LSQ-CC5-SM | 59 | 25.5 | 22 | 16 | ZG1/2 | ￠14 |

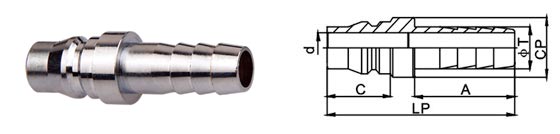

| PARTNO. | LP | A | C | CP | ￠T | d |
| LSQ-CC6-PH | 56 | 30 | 20.5 | ￠22 | 9 | ￠7.5 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC7-SH | 72.7 | 24 | 17 | 31 | 8.5 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC10-SH | 72.7 | 24 | 17 | 31 | 8.5 | ￠12.5 |
| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-CC8-SM | 60.5 | 24 | 22 | 16 | ZG1/2 | ￠12.5 |
| PARTNO. | LP | A | C | CP | ￠T | D |
| LSQ-CC9-PH | 56 | 30 | 19.8 | ￠16 | 9 | ￠6.3 |

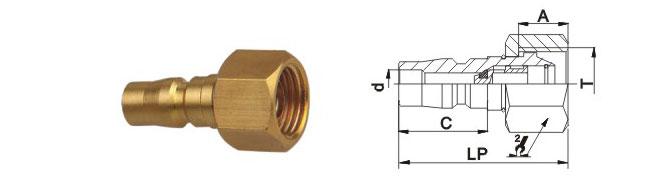

| PARTNO. | LP | A | C | HEX2 | T | D |
| LSQ-CC14-PF | 37.8 | 11 | 19.8 | 19 | M16*1.5 | ￠6.3 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC13-SH | 74.5 | 24 | 17 | 30 | 8.5 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-CC11-SM | 60.5 | 24 | 22 | 16 | ZG1/2 | ￠12.5 |
| PARTNO. | LP | A | C | CP | ￠T | D |
| LSQ-CC12-PH | 56 | 30 | 20 | ￠16 | 9 | ￠6.4 |

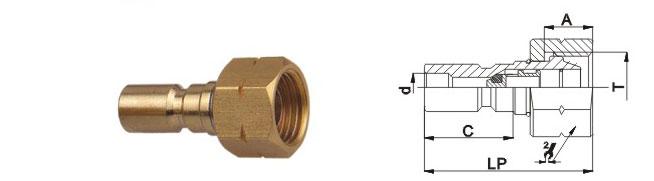

| PARTNO. | LP | A | C | HEX1 | T | D |
| LSQ-CC15-PF | 38 | 11 | 20 | 19 | M16*1.5 | ￠6.4 |
