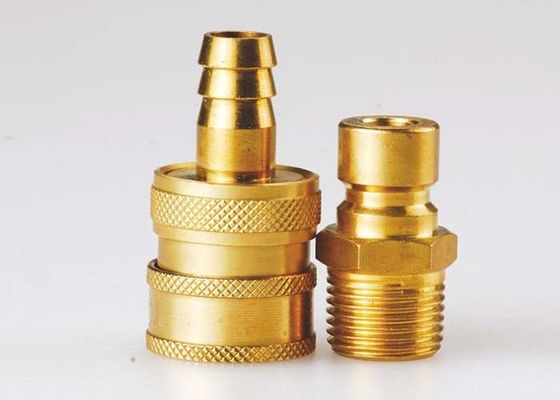

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector

China Zhejiang Songqiao Pneumatic And Hydraulic CO., LTD. certification
Professional company with nice service and high quality and high reputation. Thank you!

—— Sandy

I'm Online Chat Now

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector
1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector

Large Image :  1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-Q3
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Detailed Product Description
Standard: Parker MOLDMATE Series WP: 1.5Mpa
Material: BRASS WT: -15C To +150C
High Light:

female quick release coupling

,

brass quick release coupling

LSQ-Q3 Mold Coolant Purpose Type, Parker Moldmate Series, Pneumatic Couplings in Brass(LARGE TYPE)



Descripton:

LSQ-Q3 MOULD QUICK COUPLING(LARGE)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine.
→ Advantages: simple structure. High flow. Non-valve.
→ Application: the line of modular, cooling system.
→ Interchangeability: PARKER MOLDMATE series.
→ Working Pressure:1.5Mpa.
→ Working Temperature: -15℃ to +150℃

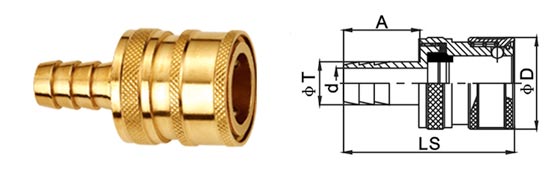

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector 0

PARTNO. LS ¢D HEX1 A T d
LSQ-Q3-04SM 50.5 30 27 14 ZG1/4 ¢14

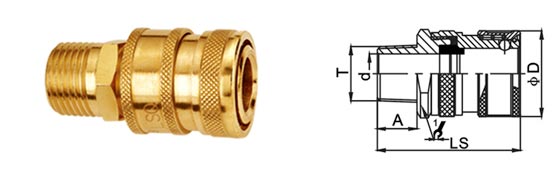

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector 1

PARTNO. LS ¢D HEX1 A ¢T d
LSQ-Q3-04SF 48.5 30 30 14 G1/2 ¢14

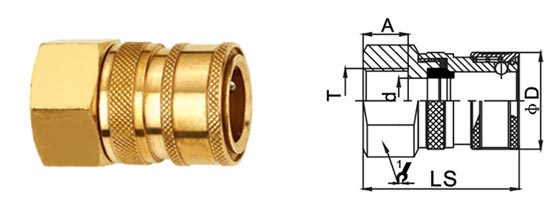

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector 2

PARTNO. LS ¢D A ¢T d
LSQ-Q3-03SH 56 30 25 14 ¢10
LSQ-Q3-04SH 56 30 25 20.5 ¢14

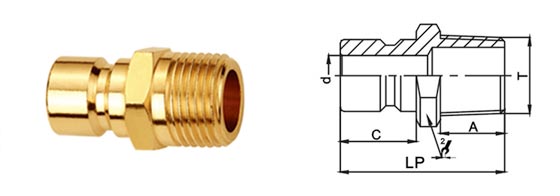

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector 3

PARTNO. LP C HEX2 A T d
LSQ-Q3-04PM 41 19 22 16 ZG1/2 ¢10

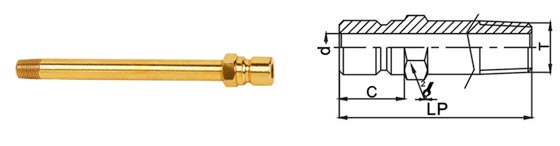

1.5 Mpa Pneumatic Quick Release Coupling , LSQ-Q2 Quick Release Connector 4

PARTNO. LP C HEX2 T d
LSQ-Q3-04PM 75 19 22 ZG1/2 ¢10
LSQ-Q3-04PM 100 19 22 ZG1/2 ¢10
LSQ-Q3-04PM 125 19 22 ZG1/2 ¢10
LSQ-Q3-04PM 150 19 22 ZG1/2 ¢10
