Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-K
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Standard: |
NITTO K Series |
WP: |
1.0Mpa |
Material: |
Brass |
WT: |
-20C To +120C |
Standard: |
NITTO K Series |
WP: |
1.0Mpa |
Material: |
Brass |
WT: |
-20C To +120C |
LSQ-K Mold Coolant Purpose Type, NITTO K Series, Pneumatic Couplings in Brass(SMALL TYPE)
Descripton:
LSQ-K MOULD QUICK COUPLING(SINGLE SHUT-OFF)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine, single shut-off.
→ Advantages: Single hand operation, Small dimensions.
→ Application: the line of modular, cooling system.
→ Interchangeability: NITTO K series.
→ Working Pressure:1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

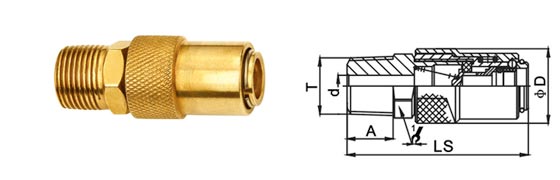

PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-K-02SM | 51 | 21 | 17 | 13 | ZG1/4 | ¢6 |
LSQ-K-03SM | 51 | 21 | 17 | 13 | ZG3/8 | ¢6 |

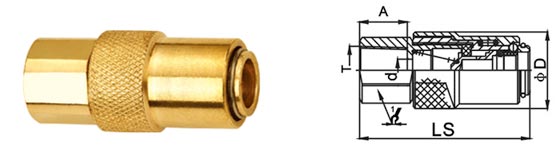

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
LSQ-K-02SF | 46.5 | 21 | 17 | 13 | G1/4 | ¢6 |
LSQ-K-03SF | 51 | 21 | 19 | 13 | G3/8 | ¢6 |

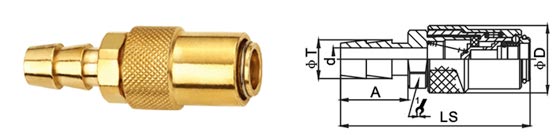

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
LSQ-K-02SH | 68 | 21 | 17 | 21 | 8 | ¢5 |
LSQ-K-03SH | 59 | 21 | 17 | 21 | 12 | ¢7 |

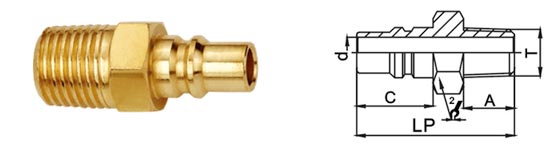

PARTNO. | LP | C | HEX2 | A | T | d |
LSQ-K-01PM | 31 | 15 | 14 | 10 | ZG1/8 | ¢6 |
LSQ-K-02PM | 33 | 15 | 14 | 13 | ZG1/4 | ¢6 |

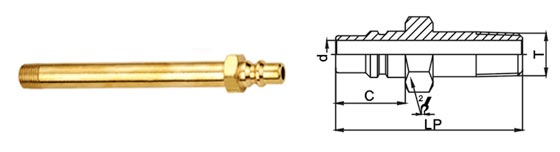

PARTNO. | LP | C | HEX2 | T | d |
LSQ-K-02PM | 75 | 15 | 14 | ZG1/4 | ¢6 |
LSQ-K-02PM | 100 | 15 | 14 | ZG1/4 | ¢6 |
LSQ-K-02PM | 125 | 15 | 14 | ZG1/4 | ¢6 |
LSQ-K-02PM | 150 | 15 | 14 | ZG1/4 | ¢6 |

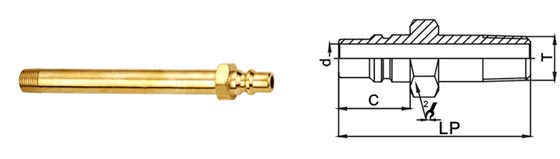

PARTNO. | LP | C | HEX2 | T | d |
LSQ-K-03PM | 75 | 15 | 17 | ZG3/8 | ¢6 |
LSQ-K-03PM | 100 | 15 | 17 | ZG3/8 | ¢6 |
LSQ-K-03PM | 125 | 15 | 17 | ZG3/8 | ¢6 |
LSQ-K-03PM | 150 | 15 | 17 | ZG3/8 | ¢6 |
