Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type

Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type
Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type

Large Image :  Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-CC50
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Detailed Product Description
Standard: JAPANESE STANDARD WP: 1.0Mpa
Material: Brass WT: -20C To +120C
High Light:

female quick release coupling

,

brass quick release coupling

LSQ-CC50 Shipping Building, Japanese Type, Pneumatic couplings in Brass, Nickle plated



Descripton:

LSQ-CC50 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Various specification, it use difference color to distinguish the medium. Red coupling is used for acetylene; yellow coupling is used for carbon dioxide; gray coupling is used for oxygen. It is widely used in Japanese market.
→ Advantages: Single hand operation. Japanese type.
→ Application: Shipbuilding, repairing and other industry system need to avoid wrong connecting.
→ Working Pressure:1.0Mpa
→ Working Temperature: -20℃ to +120

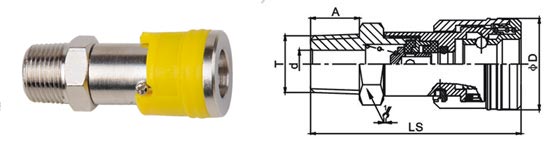

Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 0

PARTNO. LS ¢D HEX1 A T d
LSQ-CC51-SM 56.5 24.5 19 13 ZG3/8 ¢7.5



Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 1

PARTNO. LP C CP A ¢T d
LSQ-CC51-PH 64 30.5 ¢12.2 33.5 9 ¢5



Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 2

PARTNO. LS ¢D HEX1 A T d
LSQ-CC52-SM 56.5 24.5 19 13 ZG3/8 ¢7.5



Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 3

PARTNO. LP C CP A ¢T d
LSQ-CC52-PH 64 30.5 ¢13.2 33.5 9 ¢4.5



Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 4

PARTNO. LS ¢D HEX1 A T d
LSQ-CC50-SM 59.5 24.5 19 13 ZG3/8 ¢7.5



Small Dimensions Female Quick Release Coupling LSQ-CC50 Japanese Type 5

PARTNO. LP C CP A ¢T d
LSQ-CC50-PH 64 30.5 ¢128 33.5 9 ¢4.5
