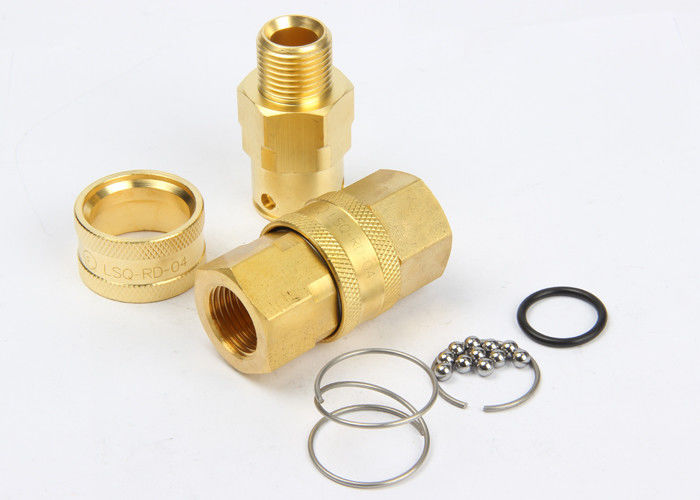

1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LST

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

Dye Transfer Lines Hydraulic Couplings

,

1/2" High Flow Hydraulic Couplings

,

SS304 High Flow Hydraulic Quick Couplers

Standard:
Compatible With PARKER ST Series, HANSEN ST Series, FOSTER FST Series
WP:
Working Pressure To 1000 Psi (69 Bar)
Material:
Brass Or SS304
Size:
1/8"-1/2"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
Compatible With PARKER ST Series, HANSEN ST Series, FOSTER FST Series
WP:
Working Pressure To 1000 Psi (69 Bar)
Material:
Brass Or SS304
Size:
1/8"-1/2"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines

LST, High Flow, Low Pressure Drop, American Type, Hydraulic Couplings in Brass or SS304

Specifications:

Body Size(in) 1/8 1/4 3/8 1/2
Rate Pressure(PSI)
Brass Cplr/ Npl 1000 1000 1000 1000
Steel Npl 2000 2000 1500 1500
Rated Flow(GPM) 3 6 12 12
Temperature Range(std seals) -20℃ to +120℃



Descripton:
LST American type hydraulic quick coupling

Applications:
Food industry
High pressure water and steam washers
Dye transfer lines
Mold coolant lines
Carpet cleaners
LST Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
2. LST couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LST nipples are available in brass and zinc-Plated steel. The ball locking grooves of the steel LST nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
4. The LST is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines 0
Socket
1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines 1

PART NO. LS ¢D HEX1 A T
LST-01SF 27 18 14 10 NPT1/8
LST-02SF 37 24 19 12 NPT1/4
LST-03SF 41.5 29 24 13 NPT3/8
LST-04SF 51 33 29 15 NPT1/2
LST-06SF 53.4 40.9 38 19 NPT3/4
LST-08SF 66 50.5 44.45 22 NPT1


1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines 2

PART NO. LS ¢D HEX1 A T
LST-01SM 29 18 14 10 NPT1/8
LST-02SM 39.5 24 19 12 NPT1/4
LST-03SM 43 29 24 13 NPT3/8
LST-04SM 53 33 29 15 NPT1/2
LST-06SM 56.7 40.9 38 19 NPT3/4
LST-08SM 61.1 50.5 44.45 24 NPT1

Plug
1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines 3

PART NO. LS ¢D HEX1 A T
LST-01PF 27 17 14 10 NPT1/8
LST-02PF 37 19.5 17 12 NPT1/4
LST-03PF 41.5 22.5 22 13 NPT3/8
LST-04PF 51 26 27 15 NPT1/2
LST-06PF 52 28.5 30 20 NPT3/4
LST-08PF 60 30.5 38 22 NPT1


1/8"-1/2" High Flow Hydraulic Couplings Brass / SS304 For Dye Transfer Lines 4

PART NO. LS ¢D HEX1 A T
LST-01PM 29 17 11 10 NPT1/8
LST-02PM 39.5 19.5 14 12 NPT1/4
LST-03PM 43 22.5 17 13 NPT3/8
LST-04PM 53 26 22 15 NPT1/2
LST-06PM 57.2 28.5 27 19 NPT3/4
LST-08PM 62.4 30.5 35 22

NPT1
