Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-RD
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With NITTO TSP Series |
WP: |
Working Pressure To 1000 Psi (69 Bar) |
Material: |
Brass Or SS304 |
Size: |
1/8"-1/2" |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
Standard: |
Compatible With NITTO TSP Series |
WP: |
Working Pressure To 1000 Psi (69 Bar) |
Material: |
Brass Or SS304 |
Size: |
1/8"-1/2" |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
LSQ-RD, For Medium Pressure General Application, Hydraulic Couplings in Brass or SS304
Descripton:
LSQ-RD Japanese type hydraulic quick coupling
Applications:
High-pressure water and steamwashers
Carpet cleaners
Mold coolant lines
Many other non-valved applications.
Specifications:
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 |
| Rate Pressure(PSI) | ||||
| Brass Cplr/Npl | 1000 | 1000 | 1000 | 1000 |
| SS Cplr/Npl | 2000 | 2000 | 1500 | 1500 |
| Rated Flow(GPM) | 3 | 6 | 12 | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ | |||
LSQ-RD Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2. LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4. LSQ-RD nipples are available in 304 stainless steel, brass.
5. The LSQ-RD is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6. Compatible with NITTO TSP Series.

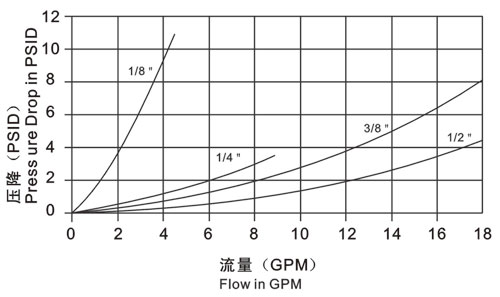

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa

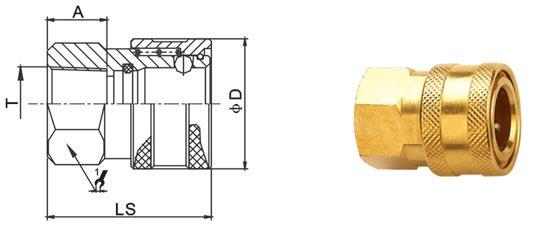

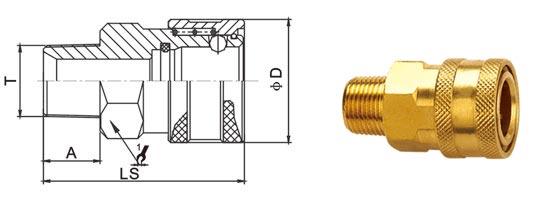

LSQ-RD series (1/8",1/4",3/8",1/2") Socket
| PART NO. | LS | ￠D | HEX1 | A | T |
| LSQ-RD-01SF | 27 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SF | 32 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SF | 35.8 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SF | 42.6 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SF | 49.5 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SF | 59.3 | 57.8 | 50 | 22 | ZG1 |
| PART NO. | LS | ￠D | HEX1 | A | T |
| LSQ-RD-01SM | 30 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SM | 42 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SM | 46.3 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SM | 56.1 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SM | 61 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SM | 67.3 | 57.8 | 50 | 22 | ZG1 |

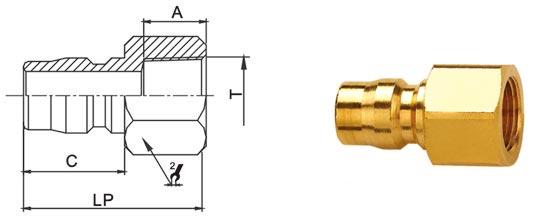

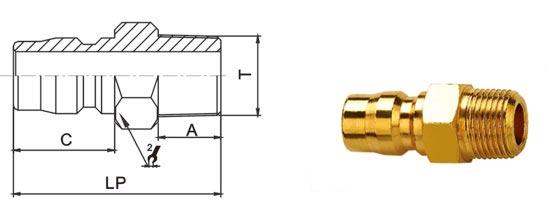

Plug
| PART NO. | LP | C | HEX2 | A | T |
| LSQ-RD-01PF | 26 | 15.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02PF | 35 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PF | 38 | 21.2 | 21 | 13 | ZG3/8 |
| LSQ-RD-04PF | 45 | 24.5 | 29 | 17 | ZG1/2 |
| LSQ-RD-06PF | 50 | 28 | 32 | 18 | ZG3/4 |
| LSQ-RD-08PF | 61 | 36 | 41 | 22 | ZG1 |
| PART NO. | LP | C | HEX1 | A | T |
| LSQ-RD-01PM | 32 | 15.5 | 12 | 9 | ZG1/8 |
| LSQ-RD-02PM | 38 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PM | 43 | 21.2 | 19 | 13 | ZG3/8 |
| LSQ-RD-04PM | 52 | 24.5 | 23 | 17 | ZG1/2 |
| LSQ-RD-06PM | 56 | 28 | 29 | 18 | ZG3/4 |
| LSQ-RD-08PM | 73 | 36 | 41 | 22 | ZG1 |
