American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

China American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass supplier

Large Image :  American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

Product Details:

Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LST

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With PARKER ST Series, HANSEN ST Series, FOSTER FST Series WP: Working Pressure To 1000 Psi (69 Bar)
Material: Brass Or SS304 Size: 1/8"-1/2"
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls

LST, High Flow, Low Pressure Drop, American Type, Hydraulic Couplings in Brass or SS304

Descripton:
LST American type hydraulic quick coupling

Applications:
Food industry
High pressure water and steam washers
Dye transfer lines
Mold coolant lines
Carpet cleaners

Specifications:

Body Size(in)1/81/43/81/2
Rate Pressure(PSI)
Brass Cplr/ Npl1000100010001000
Steel Npl2000200015001500
Rated Flow(GPM)361212
Temperature Range(std seals)-20℃ to +120℃


LST Features:

1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
2. LST couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LST nipples are available in brass and zinc-Plated steel. The ball locking grooves of the steel LST nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
4. The LST is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.

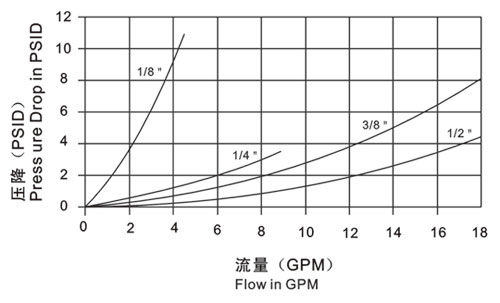

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

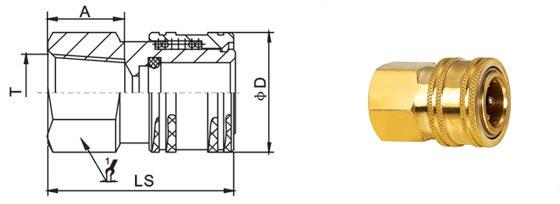

Socket
American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

PART NO.LS¢DHEX1AT
LST-01SF27181410NPT1/8
LST-02SF37241912NPT1/4
LST-03SF41.5292413NPT3/8
LST-04SF51332915NPT1/2
LST-06SF53.440.93819NPT3/4
LST-08SF6650.544.4522NPT1

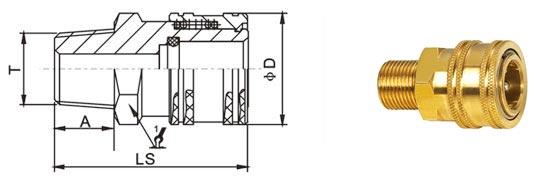

American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

PART NO.LS¢DHEX1AT
LST-01SM29181410NPT1/8
LST-02SM39.5241912NPT1/4
LST-03SM43292413NPT3/8
LST-04SM53332915NPT1/2
LST-06SM56.740.93819NPT3/4
LST-08SM61.150.544.4524NPT1

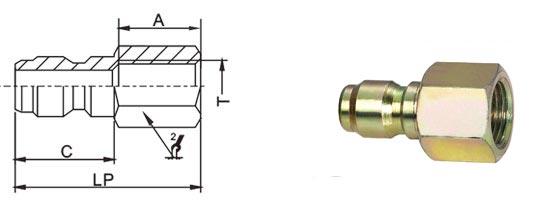

Plug
American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

PART NO.LS¢DHEX1AT
LST-01PF27171410NPT1/8
LST-02PF3719.51712NPT1/4
LST-03PF41.522.52213NPT3/8
LST-04PF51262715NPT1/2
LST-06PF5228.53020NPT3/4
LST-08PF6030.53822NPT1


American Type High Flow Quick Connect Low Pressure Drop LST Hydraulic In SS304 / Brass

PART NO.LS¢DHEX1AT
LST-01PM29171110NPT1/8
LST-02PM39.519.51412NPT1/4
LST-03PM4322.51713NPT3/8
LST-04PM53262215NPT1/2
LST-06PM57.228.52719NPT3/4
LST-08PM62.430.53522

NPT1
