Product Details
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: TPL
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With 3/8" TEMA 3800 KEW |
WP: |
Working Pressure To 2000 Psi (138 Bar) |
Material: |
Carbon Steel |
Size: |
3/8" |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
Standard: |
Compatible With 3/8" TEMA 3800 KEW |
WP: |
Working Pressure To 2000 Psi (138 Bar) |
Material: |
Carbon Steel |
Size: |
3/8" |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
TPL, High Flow, Easy Cleaning,Hydraulic couplings
Descripton:

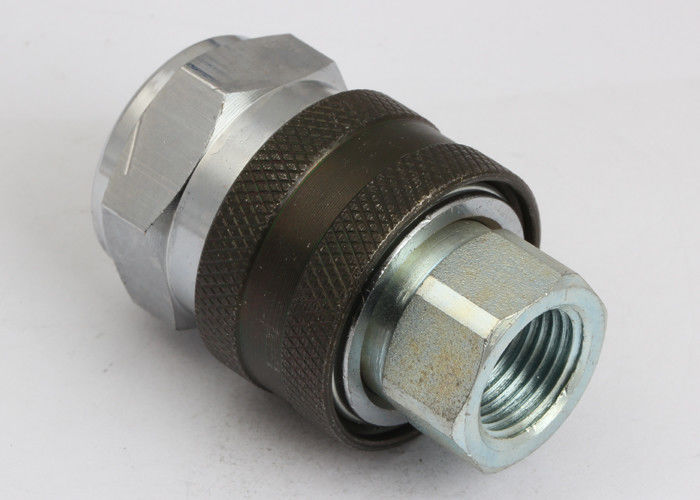

TPL straight-through hydraulic quick coupling
Specifications:
| Body Size(in) | 3/8 |
| Rated Pressure(PSI) | 2000 |
| Rated Flow(GPM) | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ |
TPL Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
2. TPL couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. TPL nipples are available in brass and zinc-Plated steel. The ball locking grooves of the steel TPL nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
4. The TPL is an“interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
5. Compatible with 3/8” TEMA 3800 KEW
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
TPL series (3/8")
| PARTNO. | T | ￠D | HEX1 | HEX2 | L | LS | LP |
| TPL-03 | G3/8 | 35 | 30 | 22 | 53.5 | 39 | 38 |
