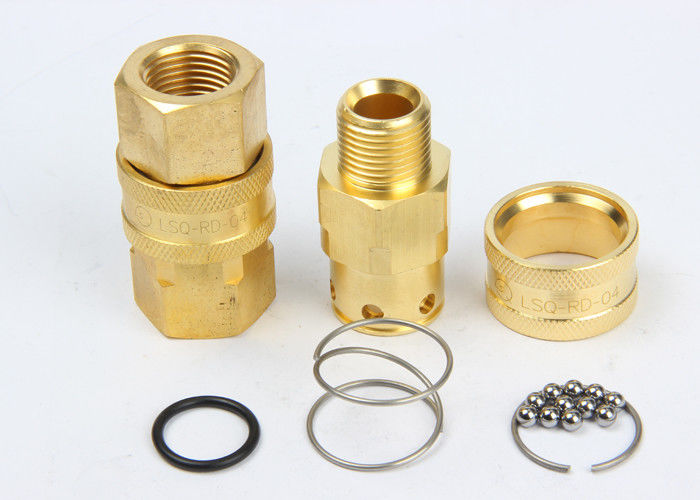

Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-RD

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop

Get Best Price
Highlight:

Valveless Structure High Flow Coupler Brass

,

SS304 LSQ-RD High Flow Coupler

,

NITTO TSP High Flow Coupler

Standard:
Compatible With NITTO TSP Series
WP:
Working Pressure To 1000 Psi (69 Bar)
Material:
Brass Or SS304
Size:
1/8"-1/2"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
Compatible With NITTO TSP Series
WP:
Working Pressure To 1000 Psi (69 Bar)
Material:
Brass Or SS304
Size:
1/8"-1/2"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Valveless Structure High Flow Coupler Brass / SS304 LSQ-RD Interchange With NITTO TSP

LSQ-RD, High Flow, Valveless Structure, Interchange with NITTO TSP, Hydraulic Couplings in Brass or SS304


Descripton:


Specifications:

Body Size(in) 1/8 1/4 3/8 1/2
Rate Pressure(PSI)
Brass Cplr/Npl 1000 1000 1000 1000
SS Cplr/Npl 2000 2000 1500 1500
Rated Flow(GPM) 3 6 12 12
Temperature Range(std seals) -20℃ to +120℃



LSQ-RD Features:
1. The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2. LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3. LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4. LSQ-RD nipples are available in 304 stainless steel, brass.
5. The LSQ-RD is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6. Compatible with NITTO TSP Series.



Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
