Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-26
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Standard: |
Rectus 26KA |
WP: |
1.6Mpa |
Material: |
BRASS |
WT: |
-20C To +120C |
Standard: |
Rectus 26KA |
WP: |
1.6Mpa |
Material: |
BRASS |
WT: |
-20C To +120C |

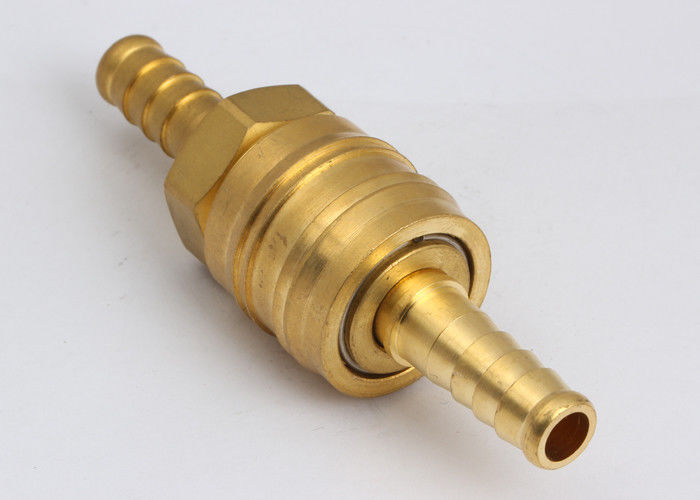

LSQ-26 Rectus 26KA, Pneumatic Quick Connect Couplings in Brass, Nickle plated
Descripton:
LSQ-26 CLOSE TYPE PNEUMATIC QUICK CONNECT COUPLING(BRASS)
→ Features: Valid diameter 7.6mm,Eurpean standard.
→ Advantages: single hand operation,steel valve locking system.
→ Application: pneumatic tools, automotive,machinery equipment.
→ Interchangeability: CEJN 320 Series,Rectus 25KA and 26KA Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-26-02SM | 42 | 24.8 | 22 | 9 | G 1/4 | Φ7.8 |
| LSQ-26-03SM | 42 | 24.8 | 22 | 9 | G 3/8 | Φ10 |
| LSQ-26-04SM | 45 | 24.8 | 22 | 12 | G 1/2 | Φ10 |
| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-26-02PM | 33 | 20 | 17 | 9 | G 1/4 | Φ7.8 |
| LSQ-26-03PM | 33 | 20 | 19 | 9 | G 3/8 | Φ7.8 |
| LSQ-26-04PM | 38 | 20 | 24 | 12 | G 1/2 | Φ7.8 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-26-02SF | 41.2 | 24.8 | 22 | 10 | G 1/4 | Φ10 |
| LSQ-26-03SF | 41.2 | 24.8 | 22 | 10 | G 3/8 | Φ10 |
| LSQ-26-04SF | 44.2 | 24.8 | 24 | 12 | G 1/2 | Φ10 |
| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-26-02PF | 33 | 20 | 17 | 9 | G 1/4 | Φ7.8 |
| LSQ-26-03PF | 32 | 20 | 19 | 9 | G 3/8 | Φ7.8 |
| LSQ-26-04PF | 35 | 20 | 24 | 12 | G 1/2 | Φ7.8 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-26-02SH | 58 | 24.8 | 21 | 25 | 7.5 | Φ4 |
| LSQ-26-02SH | 58 | 24.8 | 21 | 25 | 9.5 | Φ6 |
| LSQ-26-03SH | 58 | 24.8 | 21 | 25 | 11.5 | Φ7.8 |
| LSQ-26-04SH | 58 | 24.8 | 21 | 25 | 14.5 | Φ10 |
| PART NO. | LS | D | CP | A | T | d |
| LSQ-26-02PH | 48 | 20 | 12 | 25 | 7.5 | Φ7.8 |
| LSQ-26-02PH | 48 | 20 | 12 | 25 | 9.5 | Φ7.8 |
| LSQ-26-03PH | 48 | 20 | 12 | 25 | 11.5 | Φ7.8 |
| LSQ-26-04PH | 48 | 20 | 15 | 25 | 14.5 | Φ7.8 |
