Product Details
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-430
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With CEJN 430 Series |
Material: |
Carbon Steel |
Size: |
3/8"-1/2" |
WP: |
1.6Mpa |
Standard: |
Compatible With CEJN 430 Series |
Material: |
Carbon Steel |
Size: |
3/8"-1/2" |
WP: |
1.6Mpa |
LSQ-430 CEJN 430 Type, ISO6150B Standard, Pneumatic Couplings in Carbon Steel, Chrome Three
Descripton:
Features: Valid diameter 8.2mm, ISO 6150B standard
Advantages: large flow valve, single hand operation.
Application: pneumatic tools, automotive, machinery equipment.
Interchangeability: CEJN 430 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃

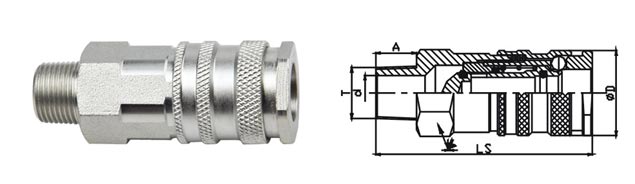

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-430-03SM | 69.3 | 27.2 | 24 | 13 | ZG3/8 | ￠11.3 |
| LSQ-430-04SM | 69.8 | 27.2 | 24 | 16 | ZG1/2 | ￠11.3 |

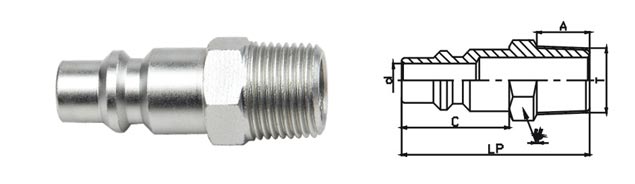

| PART NO. | LP | ￠D | HEX1 | A | T | d |
| LSQ-430-03PM | 46 | 26.3 | 17 | 13 | ZG3/8 | ￠8.2 |
| LSQ-430-04PM | 51 | 26.3 | 22 | 16 | ZG1/2 | ￠8.2 |

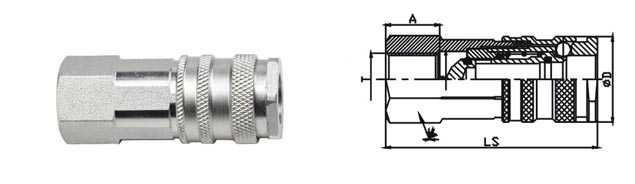

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-430-03SF | 67.3 | 27.2 | 24 | 17.1 | G3/8 | ￠14 |
| LSQ-430-04SF | 68.3 | 27.2 | 27 | 16 | G1/2 | ￠17.9 |

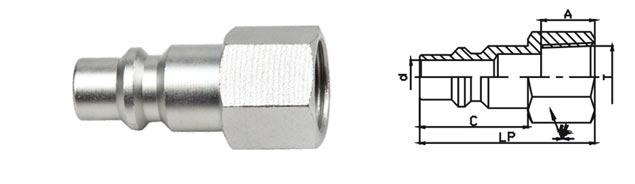

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-430-03PF | 42.5 | 26.3 | 19 | 13 | G3/8 | ￠8.2 |
| LSQ-430-04PF | 47 | 26.3 | 27 | 16 | G1/2 | ￠8.2 |

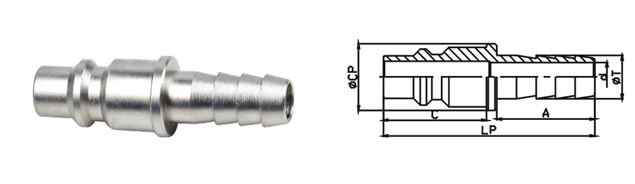

| PART NO. | LP | C | ￠CP | A | ￠T | d |
| LSQ-430-03PH | 81.3 | 27.2 | 24 | 25 | 11 | ￠7.5 |
| LSQ-430-04PH | 86.3 | 27.2 | 24 | 30 | 15 | ￠10 |

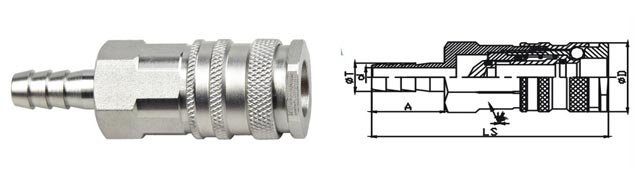

| PART NO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-430-03SH | 54 | 26.3 | 17 | 25 | 11 | ￠7.5 |
| LSQ-430-04SH | 59 | 26.3 | 17 | 30 | 15 | ￠10 |
