Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-320

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

3 8 quick connect air hose fittings

,

Pneumatic Quick Connect Coupling 1.6 Mpa

,

CEJN 320 Type Pneumatic Quick Connect Coupling

Standard:
Compatible With CEJN 320 Series, And RECTUS 25KA Series
Material:
Carbon Steel
Size:
1/8"-3/8"
WP:
1.6Mpa
Standard:
Compatible With CEJN 320 Series, And RECTUS 25KA Series
Material:
Carbon Steel
Size:
1/8"-3/8"
WP:
1.6Mpa
Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type

LSQ-320 CEJN 320 Type, Pneumatic Quick Couplings in Carbon Steel, Chrome Three



Descripton:

Features: Valid diameter 7.6mm, European standard
Advantages: Large flow valve, Automatic pneumatic Couplings
Application: pneumatic tools, automotive, machinery equipment.
Interchangeability: CEJN 320 Series, Rectus 25KA and 26KA Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃

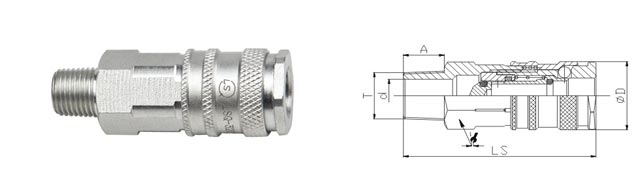

Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 0

PART NO. LS ¢D HEX1 A T d
LSQ-320-02SM 63.2 23.3 20 13 ZG1/4 ¢7.8
LSQ-320-03SM 61.2 23.3 20 13 ZG3/8 ¢11.3

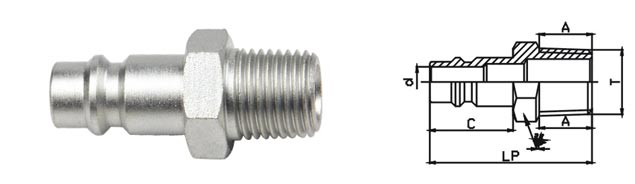

Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 1

PART NO. LP C HEX1 A T d
LSQ-320-02PM 39.5 20.5 17 13 ZG1/4 ¢7.5
LSQ-320-03PM 40 20.5 17 13 ZG3/8 ¢7.5

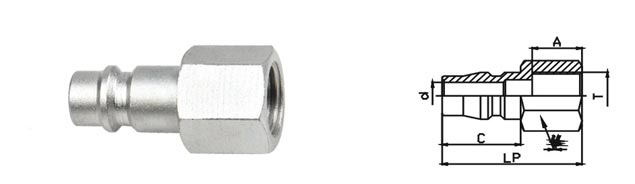

Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 2

PART NO. LP C HEX1 A T d
LSQ-320-02SF 60.2 23.3 20 13 G1/4 ¢14
LSQ-320-03SF 60.2 23.3 22 12 G3/8 ¢14

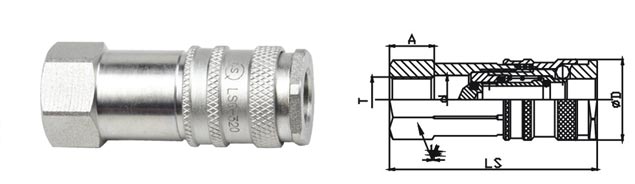

Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 3

PART NO. LS ¢D HEX1 A T d
LSQ-320-02PF 36.5 20.5 17 13 G1/4 ¢7.5
LSQ-320-03PF 36.5 20.5 19 13 G3/8 ¢7.5

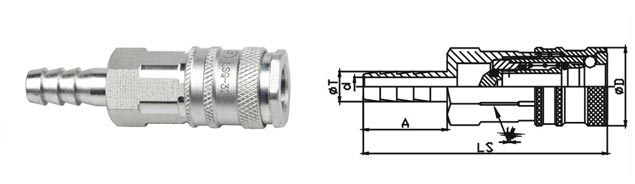

Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 4

PART NO. LS ¢D HEX1 A ¢T d
LSQ-320-01SH 67.7 23.3 20 20 7 ¢4
LSQ-320-02SH 72.7 23.3 20 25 9 ¢5.5
LSQ-320-03SH 72.7 23.3 20 25 11 ¢7.5


Chrome Three Pneumatic Quick Connect Coupling 1.6 Mpa LSQ-320 CEJN 320 Type 5

PART NO. LP C ¢CP A ¢T d
LSQ-320-01PH 43 20.5 15 20 7 ¢7.5
LSQ-320-02PH 48 20.5 15 25 9 ¢7.5
LSQ-320-03PH 48 20.5 15 25 11 ¢7.5
