Product Details
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-310
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With Parker 20 Series, Rectus 23KA Series And CEJN 310 Series |
Material: |
Carbon Steel |
Size: |
1/4"-3/8" |
WP: |
1.6Mpa |
Standard: |
Compatible With Parker 20 Series, Rectus 23KA Series And CEJN 310 Series |
Material: |
Carbon Steel |
Size: |
1/4"-3/8" |
WP: |
1.6Mpa |
LSQ-310 CEJN 310 Type, ISO6150B Standard, Pneumatic Quick Release Couplings in Carbon Steel, Chrome Three
Descripton:
Features: Valid diameter 5.3mm, ISO6150B standard
Advantages: large flow valve, Automatic Pneumatic Couplings
Application: pneumatic tools
Interchangeability: Parker 20 Series, Rectus 23KA Series, Hansen 3000 Series, CEJN 310 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃

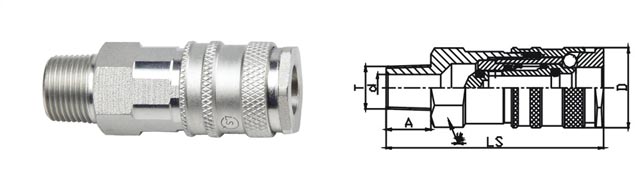

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-310-02SM | 63.2 | 23.3 | 20 | 13 | ZG1/4 | ￠7.8 |
| LSQ-310-03SM | 61.2 | 23.3 | 20 | 13 | ZG3/8 | ￠11.3 |

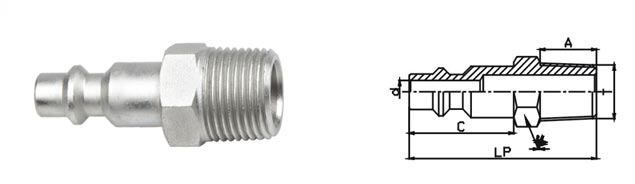

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-310-02PM | 43 | 24 | 14 | 13 | ZG1/4 | ￠5.2 |
| LSQ-310-03PM | 43.5 | 24 | 17 | 13 | ZG3/8 | ￠5.2 |

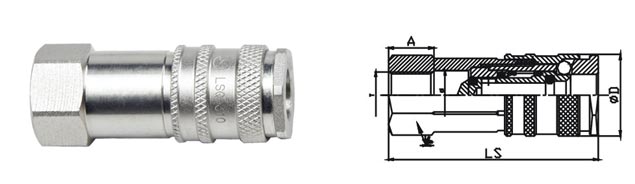

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-310-02SF | 60.2 | 23.3 | 20 | 13 | G1/4 | ￠14 |
| LSQ-310-03SF | 60.2 | 23.3 | 22 | 12 | G3/8 | ￠14 |

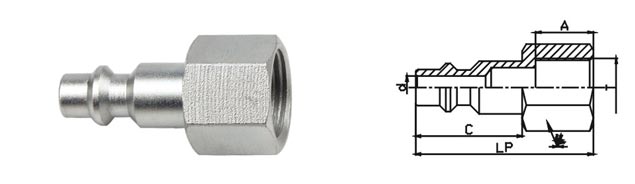

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-310-02PF | 40 | 24 | 17 | 13 | G1/4 | ￠5.2 |
| LSQ-310-03PF | 40 | 24 | 19 | 13 | G3/8 | ￠5.2 |

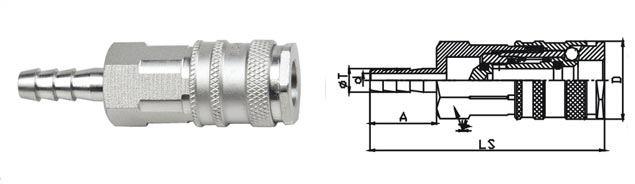

| PART NO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-310-01SH | 70.2 | 23.3 | 20 | 20 | 7 | ￠4 |
| LSQ-310-02SH | 75.2 | 23.3 | 20 | 25 | 9 | ￠5.5 |
| LSQ-310-03SH | 75.2 | 23.3 | 20 | 25 | 11 | ￠7.5 |
| PART NO. | LP | C | ￠CP | A | ￠T | d |
| LSQ-310-01PH | 46.5 | 24 | 15 | 20 | 7 | ￠4 |
| LSQ-310-02PH | 51.5 | 24 | 15 | 25 | 9 | ￠5.5 |
| LSQ-310-03PH | 51.5 | 24 | 15 | 25 | 11 | ￠7.5 |
