Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-19

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop

Get Best Price
High Light:

pneumatic air connectors

,

pneumatic quick coupling

Standard:
PCL60 Series,Rectus 19KA
WP:
1.0Mpa
Material:
BRASS
WT:
-20C To +120C
Standard:
PCL60 Series,Rectus 19KA
WP:
1.0Mpa
Material:
BRASS
WT:
-20C To +120C

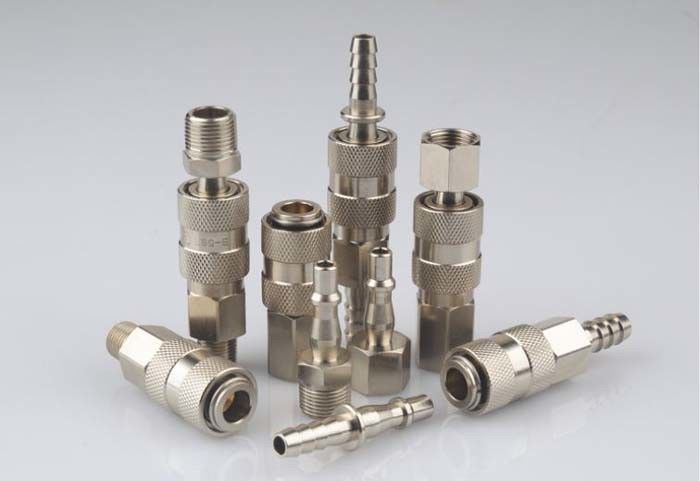

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass

LSQ-19 Rectus 19KA, Pneumatic Couplings in Brass, Nickle plated



Descripton:
LSQ-19 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Single operation, single shut-off.
→ Advantages: Single operation, High flow valve, Plug design optimised through greater insert depth.
→ Application: pneumatic tools, measure and control equipments, and compressed air.
→ Interchangeability: PCL 60 series, Rectus 19KA series.
→ Working Pressure: 1.0 Mpa.
→ Working Temperature: -20℃ to +120℃.
Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 0

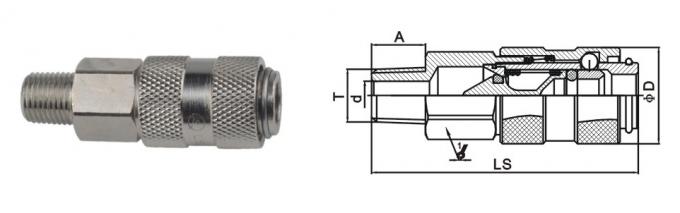

PART NO. LS D HEX1 A T d
LSQ-19-02SM 64.5 23.3 19 13 ZG1/4 7
LSQ-19-03SM 63 23.3 19 13 ZG3/8 11
LSQ-19-04SM 60.5 23.3 22 14 ZG1/3 14

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 1

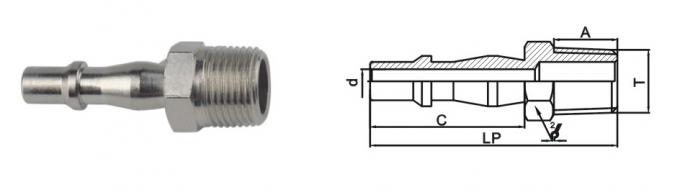

PART NO. LP D HEX1 A T d
LSQ-19-02PM 50.3 31.5 14 13 ZG1/4 4.8
LSQ-19-03PM 51 31.5 17 13 ZG3/8 4.8

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 2

PART NO. LS D HEX1 A T d
LSQ-19-02SF 58.5 23.3 19 10 G1/4 14
LSQ-19-03SF 57.5 23.3 19 9 G3/8 14
LSQ-19-04SF 60.5 23.3 24 12 G1/2 14

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 3

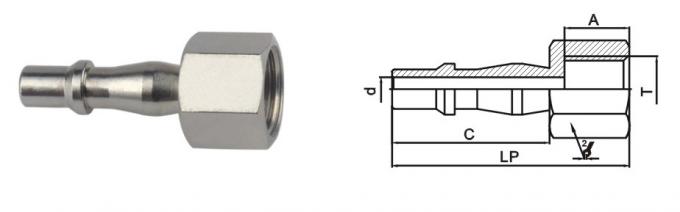

PART NO. LP D HEX1 A T d
LSQ-19-02PF 47.5 31.5 17 13 G1/4 4.8
LSQ-19-03PF 47.5 31.5 19 13 G3/8 4.8

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 4

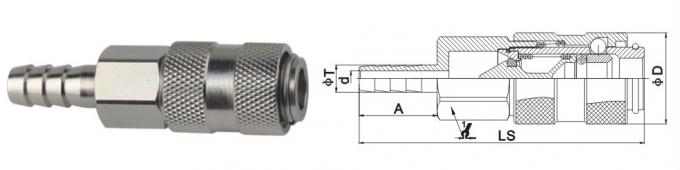

PART NO. LS D HEX1 A T d
LSQ-19-01SH 73 23.3 19 20 7 4
LSQ-19-02SH 76.5 23.3 19 25 9 5
LSQ-19-03SH 76.5 23.3 19 25 11 7.5

Single Shut - Off Pneumatic Quick Connect Coupling LSQ-19 Rectus 19KA In Brass 5

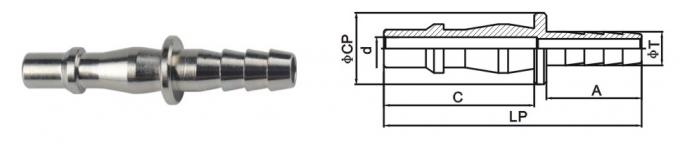

PART NO. LP D HEX1 A T d
LSQ-19-01PH 54 31.5 15 20 7 4.8
LSQ-19-02PH 59 31.5 15 25 9 4.8
LSQ-19-03PH 59 31.5 15 25 11 4.8
