Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-25

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop

Get Best Price
High Light:

Brass Convenient pneumatic air connectors

,

Rectus 25KA pneumatic quick connect

,

LSQ-25 Pneumatic Quick Disconnect Couplings

Standard:
Rectus 25KA
WP:
1.6Mpa
Material:
BRASS
WT:
-20C To +120C
Standard:
Rectus 25KA
WP:
1.6Mpa
Material:
BRASS
WT:
-20C To +120C
Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass

LSQ-25 Rectus 25KA, Pneumatic Quick Couplings in Brass, Nickle plated



Descripton:
LSQ-25 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: it is widely used in Europe Market.
→ Advantages: Simple structure, High flow valve

→ Application: pneumatic tools
→ Interchangeability: CEJN 320 Series, Rectus 25KA series and 26KA Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.

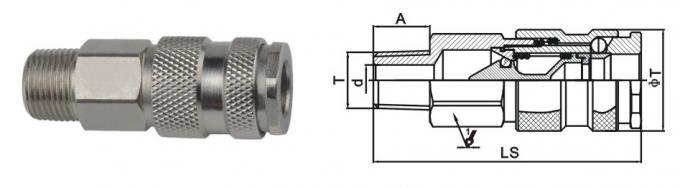

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 0

PART NO. LS D HEX1 A T d
LSQ-25-02SM 61.5 23.3 19 13 ZG 1/4 Φ7
LSQ-25-03SM 60 23.3 19 13 ZG 3/8 Φ11
LSQ-25-04SM 57.5 23.3 22 14 ZG 1/2 Φ14

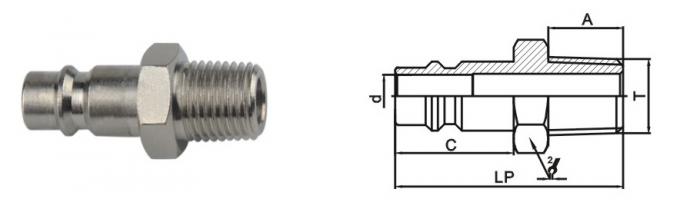

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 1

PART NO. LP C HEX2 A T d
LSQ-25-02PM 39.5 20.5 17 13 ZG 1/4 Φ7.5
LSQ-25-03PM 40 20.5 17 13 ZG 3/8 Φ7.5

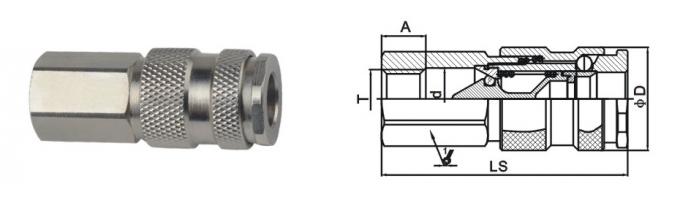

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 2

PART NO. LS D HEX1 A T d
LSQ-25-02SF 55.5 23.3 19 10 G 1/4 Φ14
LSQ-25-03SF 54.5 23.3 19 9 G 3/8 Φ14
LSQ-25-04SF 57.5 23.3 24 12 G 1/2 Φ14

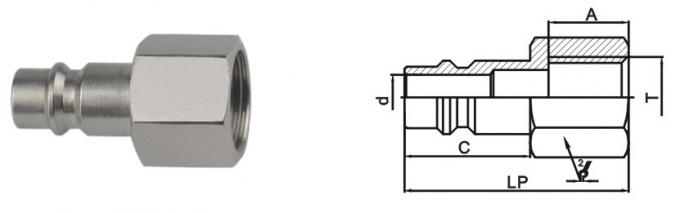

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 3

PART NO. LP C HEX2 A T d
LSQ-25-02PF 36.5 20.5 17 13 G 1/4 Φ7.5
LSQ-25-03PF 36.5 20.5 19 13 G 3/8 Φ7.5

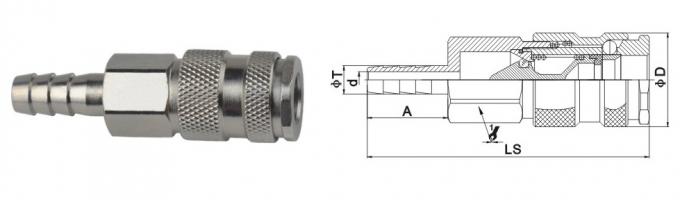

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 4

PART NO. LS D HEX1 A T d
LSQ-25-02SH 70 23.3 19 20 7 Φ4
LSQ-25-03SH 73.5 23.3 19 25 9 Φ5
LSQ-25-04SH 73.5 23.3 19 25 11 Φ7.5

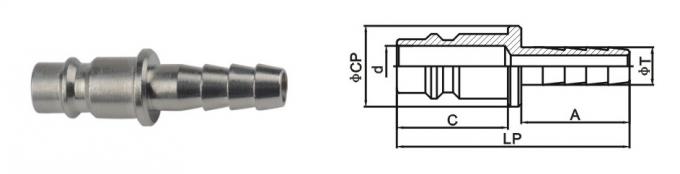

Convenient Pneumatic Quick Disconnect Couplings LSQ-25 Rectus 25KA In Brass 5

PART NO. LP C CP A T d
LSQ-25-01PH 43 20.5 15 20 7 Φ7.5
LSQ-25-02PH 48 20.5 15 25 9 Φ7.5
LSQ-25-03PH 48 20.5 15 25 11 Φ7.5
