Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-A
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Chinese Standard |
WP: |
Working Pressures To 1MPA |
Material: |
Brass |
WT: |
-20℃ To +120℃ |
Standard: |
Chinese Standard |
WP: |
Working Pressures To 1MPA |
Material: |
Brass |
WT: |
-20℃ To +120℃ |

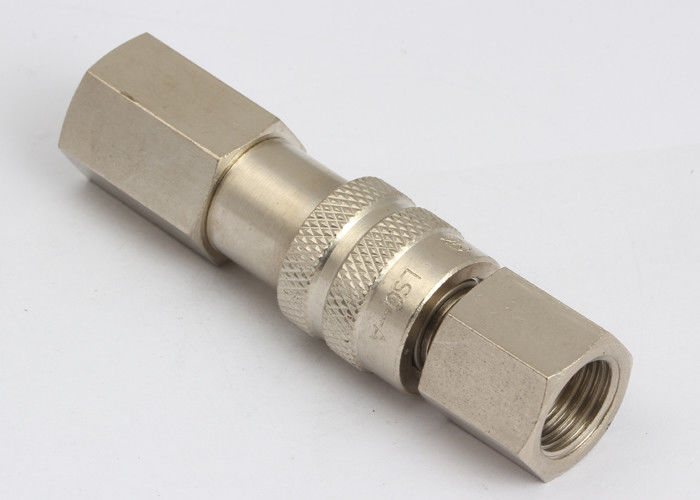

LSQ-A Semi-Automatic type Pneumatic Quick couplings in Brass, Chrome Plated
Descripton:
LSQ-A SIGLEHANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(BRASS)
→ Features: Single hand operation.
→ Advantages: Small dimensions, light weight, single hand operation,various of connections.
→ Application: Textile machinery,
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.
| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| LSQ-A-01SH | 58 | 19 | 15 | 25 | 7 | 3 |
| LSQ-A-02SH | 58 | 19 | 15 | 25 | 9 | 4.8 |
| LSQ-A-03SH | 58 | 19 | 15 | 25 | 11 | 7 |
| LSQ-A-04SH | 57 | 19 | 15 | 25 | 13.8 | 10 |
| PARTNO. | LS | ￠D | ￠CS | A | T(BSP) | d |
| LSQ-A-01SF | 43 | 19 | 15 | 10 | BSP1/8"28P | 6 |
| LSQ-A-02SF | 47 | 19 | 15 | 13 | BSP1/4"19P | 6 |
| LSQ-A-03SF | 47 | 19 | 15 | 13 | BSP3/8"19P | 6 |
| PARTNO. | LS | ￠D | ￠CS | A | T(BSP) | d |
| LSQ-A-01SM | 49 | 19 | 15 | 9.5 | BSPT1/4"28P | 5 |
| LSQ-A-02SM | 52.5 | 19 | 15 | 13 | BSPT3/8"19P | 7 |
| LSQ-A-03SM | 52.5 | 19 | 15 | 13 | BSPT1/2"19P | 10 |
| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| LSQ-A-01SP | 53.5 | 19 | 15 | 14 | 6*4 | 2.8 |
| LSQ-A-02SP | 54.5 | 19 | 15 | 15 | 8*5 | 4 |
| LSQ-A-03SP | 56.5 | 19 | 15 | 17 | 10*6.5 | 5 |
| PARTNO. | LP | C | ￠CP | A | ￠T | d |
| LSQ-A-01PH | 51.5 | 20.5 | 13 | 25 | 7 | 3 |
| LSQ-A-02PH | 51.5 | 20.5 | 13 | 25 | 9 | 5 |
| LSQ-A-03PH | 51.5 | 20.5 | 13 | 25 | 11 | 7 |
| LSQ-A-04PH | 51.5 | 20.5 | 16 | 25 | 13.8 | 10 |
| PARTNO. | LP | C | HEX1 | A | T(BSP) | d |
| LSQ-A-01PF | 33.5 | 20.5 | 14 | 10 | BSP1/8"28P | 4.8 |
| LSQ-A-02PF | 36.5 | 20.5 | 17 | 13 | BSP1/4"19P | 4.8 |
| LSQ-A-03PF | 36.5 | 20.5 | 19 | 13 | BSP3/8"19P | 4.8 |
| PARTNO. | LP | C | HEX1 | A | T(PT) | d |
| LSQ-A-01PM | 34.5 | 20.5 | 10 | 9.5 | PT1/8"28P | 4.8 |
| LSQ-A-02PM | 37.5 | 20.5 | 14 | 13 | PT1/4"19P | 4.8 |
| LSQ-A-03PM | 38 | 20.5 | 17 | 11 | PT3/8"19P | 4.8 |
| PARTNO. | LP | C | HEX1 | A | T | d |
| LSQ-A-01PP | 37.5 | 20.5 | 12 | 13 | 6*4 | 4.8 |
| LSQ-A-02PP | 40 | 20.5 | 14 | 15 | 8*5 | 4.8 |
| LSQ-A-03PP | 41.5 | 20.5 | 14 | 17 | 10*6.5 | 4.8 |
