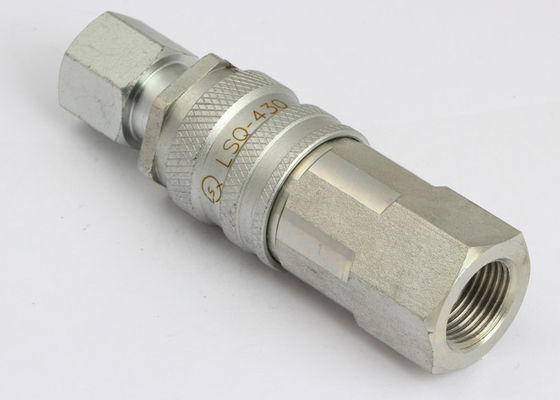

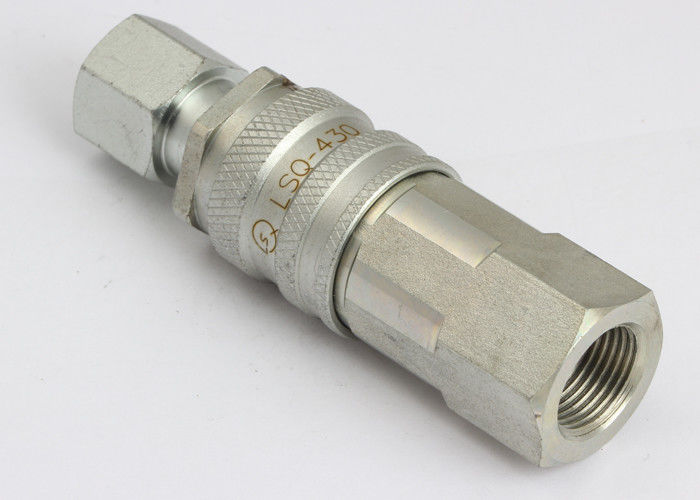

Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-430

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

Machinery Equipment pneumatic air connectors

,

Valid Diameter 8.2 mm pneumatic quick connect

,

1.6Mpa Pneumatic Quick Coupling

Standard:
Compatible With CEJN 430 Series
Material:
Carbon Steel
Size:
3/8"-1/2"
WP:
1.6Mpa
Standard:
Compatible With CEJN 430 Series
Material:
Carbon Steel
Size:
3/8"-1/2"
WP:
1.6Mpa
Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment

LSQ-430 CEJN 430 Type, ISO6150B Standard, Pneumatic Quick Couplings in Carbon Steel, Chrome Three



Descripton:

Features: Valid diameter 8.2mm, ISO 6150B standard
Advantages: large flow valve, Automatic operation quick couplings.
Application: pneumatic tools,
Interchangeability: CEJN 430 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃
Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 0

PART NO. LS ¢D HEX1 A T d
LSQ-430-03SM 69.3 27.2 24 13 ZG3/8 ¢11.3
LSQ-430-04SM 69.8 27.2 24 16 ZG1/2 ¢11.3


Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 1

PART NO. LP ¢D HEX1 A T d
LSQ-430-03PM 46 26.3 17 13 ZG3/8 ¢8.2
LSQ-430-04PM 51 26.3 22 16 ZG1/2 ¢8.2


Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 2

PART NO. LS ¢D HEX1 A T d
LSQ-430-03SF 67.3 27.2 24 17.1 G3/8 ¢14
LSQ-430-04SF 68.3 27.2 27 16 G1/2 ¢17.9


Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 3

PART NO. LP C HEX1 A T d
LSQ-430-03PF 42.5 26.3 19 13 G3/8 ¢8.2
LSQ-430-04PF 47 26.3 27 16 G1/2 ¢8.2


Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 4

PART NO. LP C ¢CP A ¢T d
LSQ-430-03PH 81.3 27.2 24 25 11 ¢7.5
LSQ-430-04PH 86.3 27.2 24 30 15 ¢10


Valid Diameter 8.2 mm Pneumatic Quick Coupling 1.6Mpa For Machinery Equipment 5

PART NO. LS ¢D HEX1 A ¢T d
LSQ-430-03SH 54 26.3 17 25 11 ¢7.5
LSQ-430-04SH 59 26.3 17 30 15 ¢10
