Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LAM
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Material: |
Brand |
Standard: |
Compatible With Parker 20 Series, Rectus 23KA Series, Hansen 3000 Series, CEJN 310 Series |
WP: |
Working Pressures To 1MPA |
WT: |
-20℃ To +120℃ |
Material: |
Brand |
Standard: |
Compatible With Parker 20 Series, Rectus 23KA Series, Hansen 3000 Series, CEJN 310 Series |
WP: |
Working Pressures To 1MPA |
WT: |
-20℃ To +120℃ |

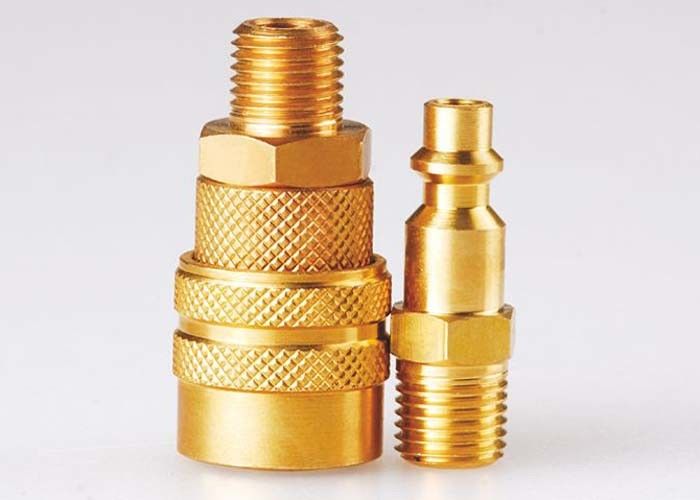

LAM American Type, ISO6150B Standard, Pneumatic couplings in Brass, Nickle plated
Descripton:
QKD156 SINGLE SHUT-OFF PNEUMATIC QUICK COUPLING(MEDIUM)(STEEL)
→ Features: it is widely used in China Market.
→ Advantages: Simple structure, various of connections
→ Application: pneumatic tools, automotive, compressd air, shipbuilding.
→ Working Temperature: -20℃ to +120℃

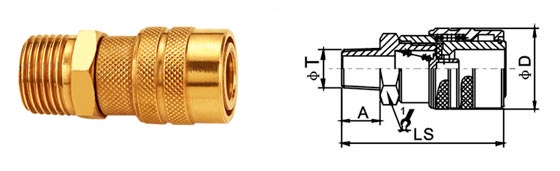

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SM | 51 | 25 | 19 | 12 | 1/4 |
| LAM-03SM | 51 | 25 | 19 | 13 | 3/8 |
| LAM-04SM | 53 | 25 | 22 | 14 | 1/2 |

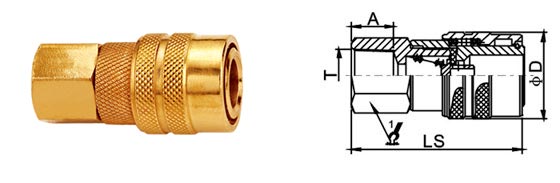

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SF | 49.5 | 25 | 19 | 12 | 1/4 |
| LAM-03SF | 49.5 | 25 | 19 | 12 | 3/8 |
| LAM-04SF | 53.5 | 25 | 24 | 15 | 1/2 |

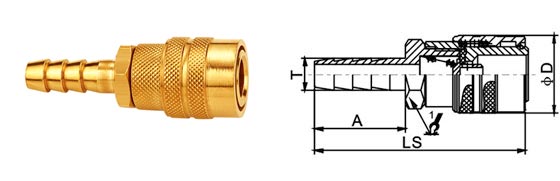

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SH | 66 | 25 | 19 | 28 | 9 |
| LAM-03SH | 68 | 25 | 19 | 30 | 10.5 |
| LAM-04SH | 68 | 25 | 19 | 30 | 13 |

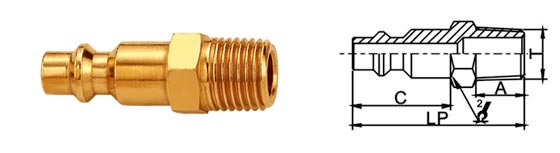

| PARTNO. | LP | C | HEX2 | A | T |
| LAM-02PM | 42 | 24 | 14 | 13 | 1/4 |
| LAM-03PM | 42 | 24 | 17 | 13 | 3/8 |
| LAM-04PM | 44 | 24 | 22 | 14 | 1/2 |

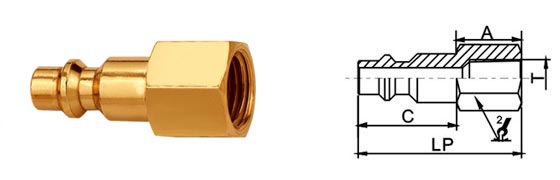

| PARTNO. | LP | C | HEX2 | A | T |
| LAM-02PF | 39 | 24 | 17 | 12 | 1/4 |
| LAM-03PF | 40 | 24 | 19 | 13 | 3/8 |
| LAM-04PF | 44 | 24 | 24 | 16 | 1/2 |

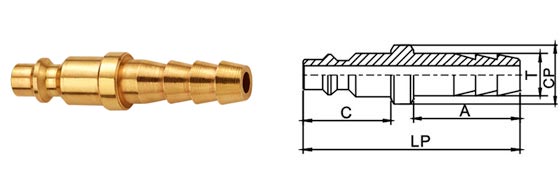

| PARTNO. | LP | C | CP | A | T |
| LAM-02PH | 59 | 24 | 19 | 30 | 9 |
| LAM-03PH | 59 | 24 | 19 | 30 | 10.5 |
| LAM-04PH | 59 | 24 | 19 | 30 | 13 |
