1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-300

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

pneumatic air connectors

,

pneumatic quick connect

Standard:
Compatible With Parker 50 Series, Rectus 22KA Series And CEJN 300 Series
Material:
Carbon Steel
Size:
1/4"-3/8"
WP:
1.6Mpa
Standard:
Compatible With Parker 50 Series, Rectus 22KA Series And CEJN 300 Series
Material:
Carbon Steel
Size:
1/4"-3/8"
WP:
1.6Mpa
1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling

LSQ-300 CEJN 300 Type, Pneumatic Couplings in Carbon Steel, Chrome Three



Descripton:

Features: Valid diameter 5.5mm, ARO210 standard
Advantages: large flow valve, single hand operation.
Application: pneumatic tools, production and assemble line, machinery equipment.
Interchangeability: Parker 50 Series, Rectus 22KA Series, CEJN 300 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃

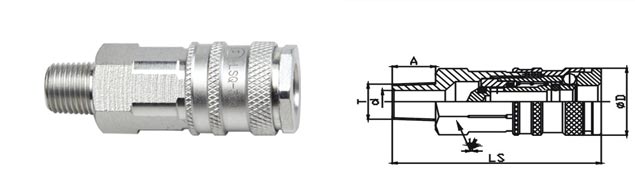

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 0

PART NO. LS C HEX1 A T d
LSQ-300-02SM 62.8 23.3 20 13 ZG1/4 ¢7.8
LSQ-300-03SM 60.8 23.3 20 13 ZG3/8 ¢11.3

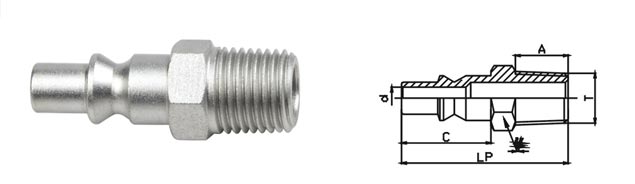

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 1

PART NO. LP C HEX1 A T d
LSQ-300-02PM 41 22 14 13 ZG1/4 ¢5.4
LSQ-300-03PM 41.5 22 17 13 ZG3/8 ¢5.4

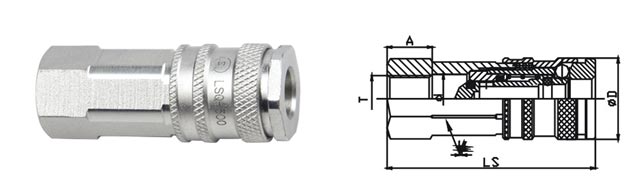

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 2

PART NO. LS ¢D HEX1 A T d
LSQ-300-02SF 59.8 23.3 20 13 G1/4 ¢14
LSQ-300-03SF 59.8 23.3 22 12 G3/8 ¢14

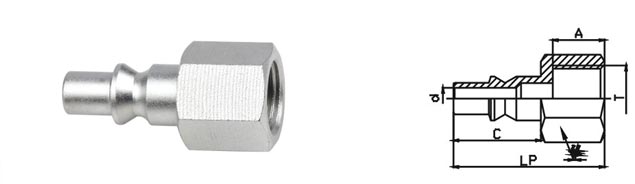

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 3

PART NO. LP C HEX1 A T d
LSQ-300-02PF 38 22 17 13 G1/4 ¢5.4
LSQ-300-03PF 38 22 19 13 G3/8 ¢5.4

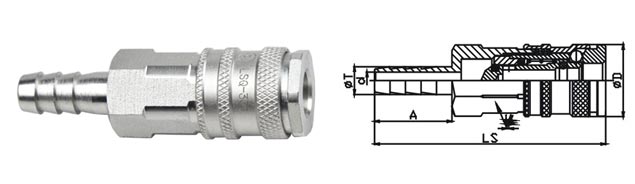

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 4

PART NO. LS ¢D ¢CP A ¢T d
LSQ-300-01SH 69.8 23.3 20 20 7 ¢4
LSQ-300-02SH 74.8 23.3 20 25 9 ¢5.5
LSQ-300-03SH 74.8 23.3 20 25 11 ¢7.5

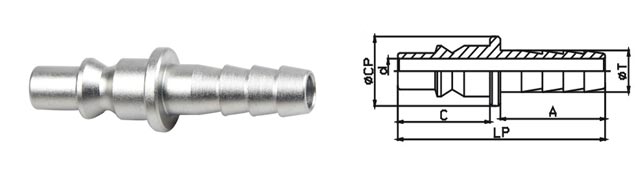

1.6 Mpa Pneumatic Quick Connect Coupling , LSQ-300 CEJN 300 Type Quick Connect Coupling 5

PART NO. LP C ¢CP A ¢T d
LSQ-300-01PH 44.5 22 15 20 7 ¢5.4
LSQ-300-02PH 49.5 22 15 25 9 ¢5.4
LSQ-300-03PH 49.5 22 15 25 11 ¢5.4
