Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-25
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assbemly workshop
Standard: |
Rectus 25KA |
WP: |
1.6Mpa |
Material: |
BRASS |
WT: |
-20C To +120C |
Standard: |
Rectus 25KA |
WP: |
1.6Mpa |
Material: |
BRASS |
WT: |
-20C To +120C |

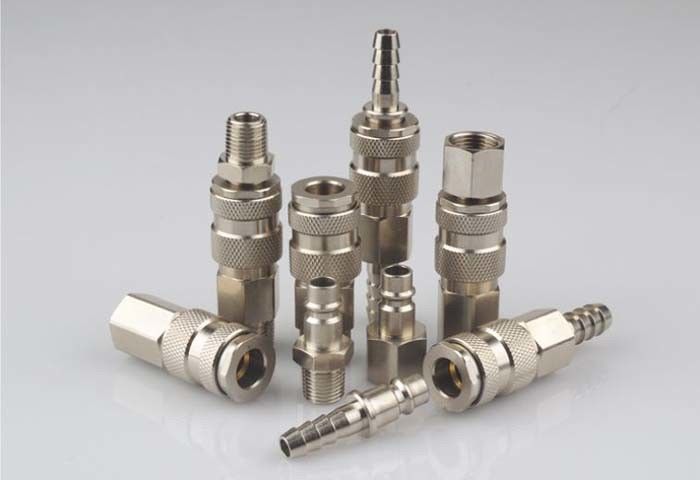

LSQ-25 Rectus 25KA, Pneumatic Couplings in Brass, Nickle plated
Descripton:
LSQ-25 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: it is widely used in Europe Market.
→ Advantages: Simple structure, High flow valve, various of interchang- eability and connection.
→ Application: pneumatic tools, producing and assembly line, machinery equipments.
→ Interchangeability: CEJN 320 Series, Rectus 25KA series and 26KA Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-25-02SM | 61.5 | 23.3 | 19 | 13 | ZG 1/4 | Φ7 |
| LSQ-25-03SM | 60 | 23.3 | 19 | 13 | ZG 3/8 | Φ11 |
| LSQ-25-04SM | 57.5 | 23.3 | 22 | 14 | ZG 1/2 | Φ14 |
| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-25-02PM | 39.5 | 20.5 | 17 | 13 | ZG 1/4 | Φ7.5 |
| LSQ-25-03PM | 40 | 20.5 | 17 | 13 | ZG 3/8 | Φ7.5 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-25-02SF | 55.5 | 23.3 | 19 | 10 | G 1/4 | Φ14 |
| LSQ-25-03SF | 54.5 | 23.3 | 19 | 9 | G 3/8 | Φ14 |
| LSQ-25-04SF | 57.5 | 23.3 | 24 | 12 | G 1/2 | Φ14 |
| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-25-02PF | 36.5 | 20.5 | 17 | 13 | G 1/4 | Φ7.5 |
| LSQ-25-03PF | 36.5 | 20.5 | 19 | 13 | G 3/8 | Φ7.5 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-25-02SH | 70 | 23.3 | 19 | 20 | 7 | Φ4 |
| LSQ-25-03SH | 73.5 | 23.3 | 19 | 25 | 9 | Φ5 |
| LSQ-25-04SH | 73.5 | 23.3 | 19 | 25 | 11 | Φ7.5 |
| PART NO. | LP | C | CP | A | T | d |
| LSQ-25-01PH | 43 | 20.5 | 15 | 20 | 7 | Φ7.5 |
| LSQ-25-02PH | 48 | 20.5 | 15 | 25 | 9 | Φ7.5 |
| LSQ-25-03PH | 48 | 20.5 | 15 | 25 | 11 | Φ7.5 |
