LSQ-23 Rectus 23KA, ISO6150B Standard, Pneumatic Couplings in Brass, Nickle plated
Descripton:
LSQ-23 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: alid diameter 5.3mm,ISO6150B standard.
→ Advantages: large flow valve, single hand operation.
→ Application: pneumatic tools, automotive, machinery equipment.
→ Interchangeability: Parker 20Series,Rectus 23KA Series, Hansen 3000 Series, CEJN 310Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.

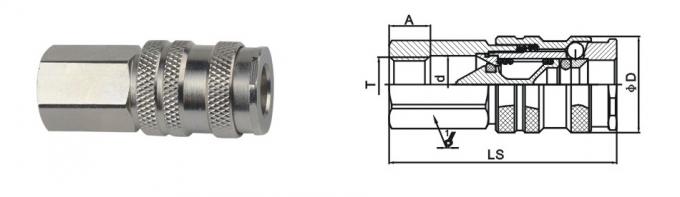

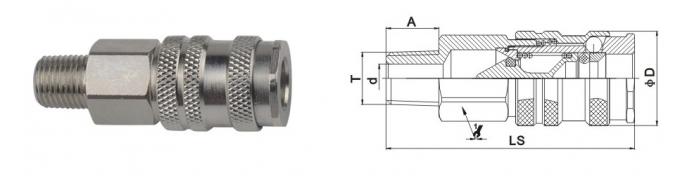

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SM | 61 | 23.3 | 19 | 13 | ZG 1/4 | Φ7 |
| LSQ-23-03SM | 59.5 | 23.3 | 19 | 13 | ZG 3/8 | Φ11 |
| LSQ-23-04SM | 57 | 23.3 | 22 | 14 | ZG 1/2 | Φ14 |
| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-23-02PM | 43 | 24 | 14 | 13 | ZG 1/4 | Φ5.2 |
| LSQ-23-03PM | 43.5 | 24 | 17 | 13 | ZG 3/8 | Φ5.2 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SF | 55 | 23.3 | 19 | 10 | G 1/4 | Φ14 |
| LSQ-23-03SF | 54 | 23.3 | 19 | 9 | G 3/8 | Φ14 |
| LSQ-23-04SF | 57 | 23.3 | 24 | 12 | G 1/2 | Φ14 |

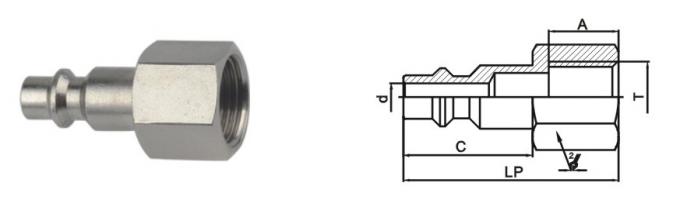

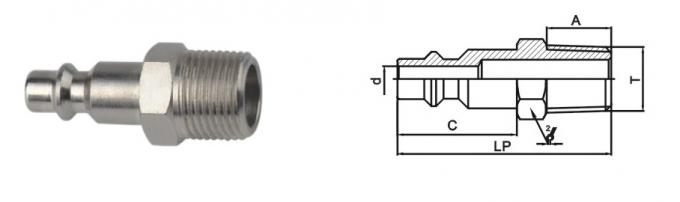

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-23-02PF | 40 | 24 | 17 | 13 | G 1/4 | Φ5.2 |
| LSQ-23-03PF | 40 | 24 | 19 | 13 | G 3/8 | Φ5.2 |

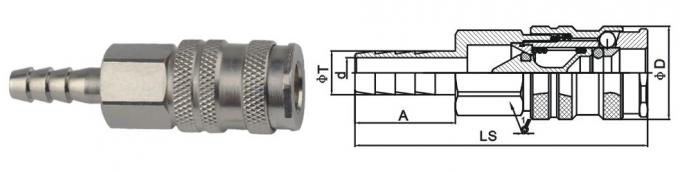

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SH | 69.5 | 23.3 | 19 | 20 | 7 | Φ4 |
| LSQ-23-03SH | 73 | 23.3 | 19 | 25 | 9 | Φ5 |
| LSQ-23-04SH | 73 | 23.3 | 19 | 25 | 11 | Φ7.5 |

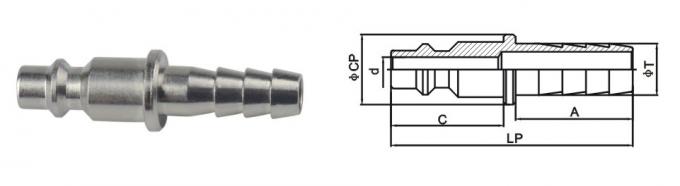

| PART NO. | LP | C | CP | A | T | d |
| LSQ-23-01PH | 46.5 | 24 | 15 | 20 | 7 | Φ5.2 |
| LSQ-23-02PH | 51.5 | 24 | 15 | 25 | 9 | Φ5.2 |
| LSQ-23-03PH | 51.5 | 24 | 15 | 25 | 11 | Φ5.2 |
