LSQ-PD 1/4'' Flush Face Hydraulic Quick Couplers Locking Balls Connect Carbon Steel / Chrome Three

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-PD

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

1/4'' Flush Face Hydraulic Quick Couplers

,

LSQ-PD Flush Face Hydraulic Quick Couplers

,

Locking balls Connect flush face coupler

Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 6,000 Psi (414 Bar)
Material:
Carbon Steel
Size:
1/4'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 6,000 Psi (414 Bar)
Material:
Carbon Steel
Size:
1/4'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
LSQ-PD 1/4'' Flush Face Hydraulic Quick Couplers Locking Balls Connect Carbon Steel / Chrome Three

LSQ-PD, Flat Face Type Hydraulic Quick Couplings in Carbon Steel, Chrome Three



Descripton:



Flush Face Hydraulic Quick Couplers are a type of hydraulic coupling that provides a reliable and leak-free connection in high-pressure hydraulic applications. These couplers are designed to connect hydraulic hoses and pipes quickly and easily, without the need for tools or special equipment.

Flush Face design ensures a clean and easy connection, minimizing the risk of fluid loss or contamination
Made from high-grade materials such as stainless steel and brass, ensuring durability and long service life
Rated for high pressure applications, typically up to 10,000 psi
Available in a variety of sizes and configurations to suit different hydraulic systems and applications
Interchangeable with other standard flush face couplers



Features:

Carbon steel plugs provide high strength for the couplings, while brass is available upon request for water applications.
Features a ball locking mechanism for a secure connection.
The valve face flushes the poppet, minimizing fluid loss and air impurity during connection.
Designed for easy disassembly and cleaning.
Sealing and locking grooves are induction hardened to resist mechanical abuse and brinelling, avoiding resilience.
Equipped with a safety sleeve lock to prevent accidental disconnection.
The push-on operation allows for convenient one-handed use.
Compatible with Fast DF series, Parker PD series, and Aeroquip PD 90 series couplings





Applications

Compatible with FASTER DF Series,PARKER PD Series, AEROQUIP PD 90 Series.

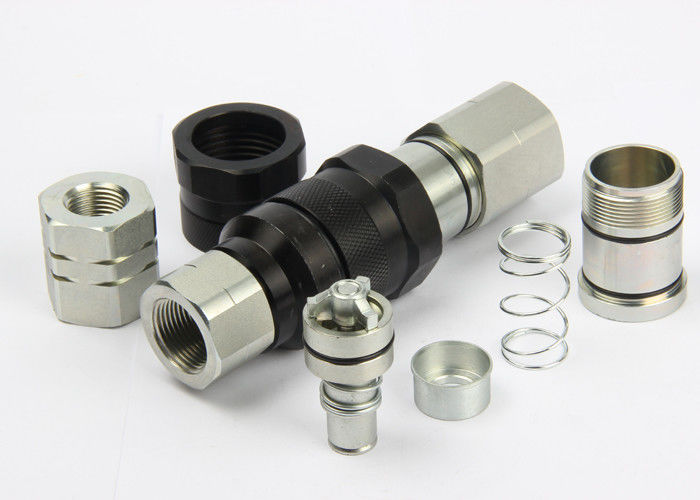

LSQ-PD 1/4'' Flush Face Hydraulic Quick Couplers Locking Balls Connect Carbon Steel / Chrome Three 0

Body Size(in) 1/4
Rated Pressure(PSI) 6000
Rated Flow(GPM) 0.53
Temperature Range (std seals) -20℃ to +120℃
Standard seal material NBR

LSQ-PD 1/4'' Flush Face Hydraulic Quick Couplers Locking Balls Connect Carbon Steel / Chrome Three 1

PART NO T D HEX1 HEX2 L LS LP
LSQ-PD NPT1/8 24 S21 S19 78.5 50 42.8
LSQ-PD NPT1/4 24 S21 S19 78.5 50 42.8
