All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-VEP

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
Highlight:

Non - Spill Flat Face Hydraulic Connectors

,

All Fluid Flush Face Hydraulic Quick Couplers

,

Thread Locked Hydraulic Quick Couplers

Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/2' - 1-1/2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Thread Lock
Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/2' - 1-1/2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Thread Lock
All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type

LSQ-VEP, Flush Face and Thread LockedType Hydraulic Couplings in Carbon Steel, Chrome Three and Black Zinc Nickle Plated



Descripton:



Applications

LSQ-VEP Series widely used in below public equipments:

Protable construction equipments

Hydraulic tools

Vehicles



Features:

1, New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.

2, Special nipple design for connecting under pressure, allows connection and disconnection with high residual pressures.

3, the LSQ-VEP series employs a threaded sleeve locking mechanism, mates with matching male threads on the coupler. The two haves must be manually threaded together from connection.

4, new chrome plating treatment provides advanced anti-rust performance

5, LSQ-VEP series couplings employ flush valving when connecting or disconnecting,This means only small amounts of fluid can be lost during disconnecting or air inclusion during reconnection.

6, This Anti-Blowout BFT bonded seal is designed to prevent blow-out or damage during severe service conditions.

7, Machined form solid steel barstock for durability Compatible with STCCHI VEP Series



Body Size(in)
1/2(04)
5/8(06)
3/4(08)
1(10)
1-1/2(12)
Rated Pressure(PSI)
7000
7000
7000
6000
5000
Rated Flow(GPM)
12
28
50
88
152
Temperature Range
-20℃ to +120℃
Standard seal material NBR



Benefits



• Flat face is easy to clean, helping to reduce the inclusion of contamination in the hydraulic circuit.
• Minimal fluid loss during connection / disconnection, reducing fluid loss to the environment.
• Minimal air inclusion during connection / disconnection, enhancing correct function of the circuit.
• Internal flow of valve design creates minimal pressure drop, maintaining circuit efficiency in the system.
• Internal pressure release valve system allows an easy connection with high internal residual pressure.
• The modular design allows for broad range of port configurations.
• High resistance with impulse pressures.
• Safe and simple to use.



Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa

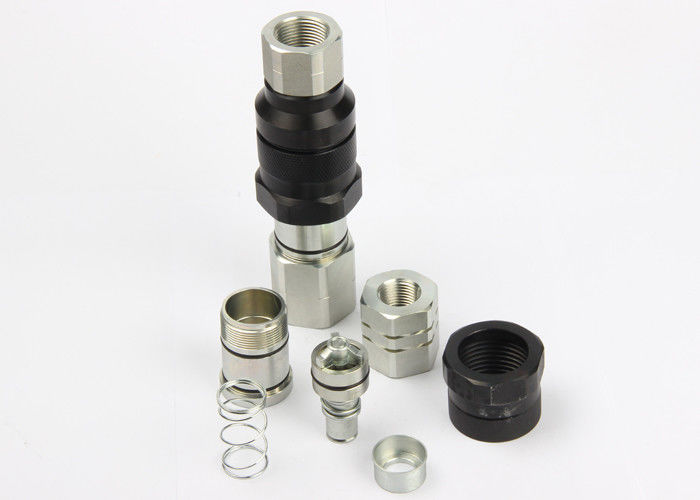

All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type 0
All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type 1




ISO
PART NO
LS
D
HEX1
HEX2
A
T
13
LSQ-VEP-04SF
103.5
Φ49
S36
S46
16.5
G1/2 NPT1/2
16
LSQ-VEP-06SF
114
Φ53.7
S41
S50
20
G3/4 NPT3/4
19
LSQ-VEP-08SF
133.5
Φ58.8
S46
S55
21
G1 NPT1
25
LSQ-VEP-10SF
145.2
Φ68.7
S55
S65
21
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12SF
187.5
Φ92
S65
S85
21
G1-1/2 NPT1-1/2



All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type 2




ISO
PART NO
LS
C
d
E
HEX2
A
T
13
LSQ-VEP-04PF
95
18.8
24.54
M40*3
S36
16.5
G1/2 NPT1/2
16
LSQ-VEP-06PF
98.8
19.5
27.04
M45*3
S36
20
G3/4 NPT3/4
19
LSQ-VEP-08PF
113.9
24
29.95
M50*3
S46
21
G1 NPT1
25
LSQ-VEP-10PF
123.5
24.8
36.05
M58*3
S55
21
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12PF
150
31.5
57
Tr80*4
S65
21
G1-1/2 NPT1-1/2



All Fluid Non - Spill Flat Face Hydraulic Connectors LSQ-VEP Thread Locked Type 3




ISO
PART NO
L
D
HEX1
HEX2
HEX3
T
13
LSQ-VEP-04
154.5
Φ49
S36
S46
S36
G1/2 NPT1/2
16
LSQ-VEP-06
164.3
Φ53.7
S41
S50
S36
G3/4 NPT3/4
19
LSQ-VEP-08
189.4
Φ58.8
S46
S55
S46
G1 NPT1
25
LSQ-VEP-10
207.2
Φ68.7
S55
S65
S55
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12
263.5
Φ92
S65
S85
S65
G1-1/2 NPT1-1/2
