Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type

Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type
Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type

Large Image :  Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-VEP
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: ISO 16028 Series, Flat Face WP: Working Pressures To 5,000 Psi (345 Bar)
Material: Carbon Steel Size: 1/2' - 1-1/2'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Thread Lock
High Light:

Avoiding Toughness Flat Faced Hydraulic Coupler

,

Hydraulic Coupler Chrome Three LSQ-VEP

,

Thread Locked Type Hydraulic Coupler

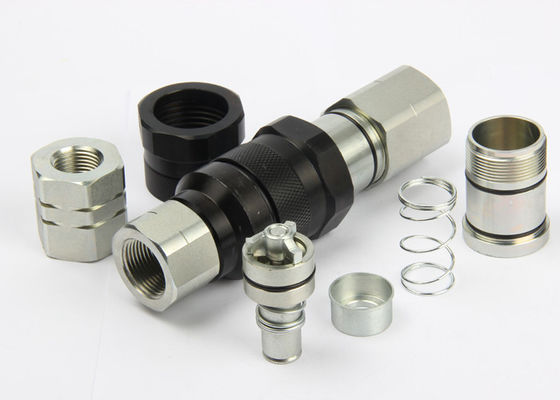

LSQ-VEP, Flush Face and Thread LockedType Hydraulic Couplings in Carbon Steel, Chrome Three and Black Zinc Nickle Plated



Descripton:



Applications

LSQ-VEP Series widely used in below public equipments:

Protable construction equipments

Hydraulic tools

Vehicles



Features:



Compatible with STCCHI VEP Series



HOW TO USE
• Before connecting clean the flat mating surface of coupling to avoid inclusion of contamination in the circuit.
• To couple pull forward the connection sleeve of the female coupling. Align the female and male coupling holding forward the connection sleeve and thread together turning the sleeve.

  Keep couplers aligned during connection process. Do not push to connect couplings.
  The screwing of the threads should be done by hand without the use of the tools for the first part of the      connection.
  The use of tools for the second part of connection can be necessary if there is high residual pressure in    the circuit.
  Screw the connecting sleeve of the female until metal surface contact with the male coupling is complete.
  Tighten the sleeve to the base of the male using the tightening torque spec. as indicated in the table

   below.
• To uncouple turn sleeve from contact position using a wrench, then unscrew making sure the couplings stay aligned through the entire process.



Body Size(in)
1/2(04)
5/8(06)
3/4(08)
1(10)
1-1/2(12)
Rated Pressure(PSI)
7000
7000
7000
6000
5000
Rated Flow(GPM)
12
28
50
88
152
Temperature Range
-20℃ to +120℃
Standard seal material NBR



Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa
Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type 0
Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type 1




ISO
PART NO
LS
D
HEX1
HEX2
A
T
13
LSQ-VEP-04SF
103.5
Φ49
S36
S46
16.5
G1/2 NPT1/2
16
LSQ-VEP-06SF
114
Φ53.7
S41
S50
20
G3/4 NPT3/4
19
LSQ-VEP-08SF
133.5
Φ58.8
S46
S55
21
G1 NPT1
25
LSQ-VEP-10SF
145.2
Φ68.7
S55
S65
21
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12SF
187.5
Φ92
S65
S85
21
G1-1/2 NPT1-1/2



Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type 2




ISO
PART NO
LS
C
d
E
HEX2
A
T
13
LSQ-VEP-04PF
95
18.8
24.54
M40*3
S36
16.5
G1/2 NPT1/2
16
LSQ-VEP-06PF
98.8
19.5
27.04
M45*3
S36
20
G3/4 NPT3/4
19
LSQ-VEP-08PF
113.9
24
29.95
M50*3
S46
21
G1 NPT1
25
LSQ-VEP-10PF
123.5
24.8
36.05
M58*3
S55
21
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12PF
150
31.5
57
Tr80*4
S65
21
G1-1/2 NPT1-1/2



Avoiding Toughness Flat Faced Hydraulic Coupler Chrome Three LSQ-VEP Thread Locked Type 3




ISO
PART NO
L
D
HEX1
HEX2
HEX3
T
13
LSQ-VEP-04
154.5
Φ49
S36
S46
S36
G1/2 NPT1/2
16
LSQ-VEP-06
164.3
Φ53.7
S41
S50
S36
G3/4 NPT3/4
19
LSQ-VEP-08
189.4
Φ58.8
S46
S55
S46
G1 NPT1
25
LSQ-VEP-10
207.2
Φ68.7
S55
S65
S55
G1-1/4 NPT1-1/4
31.5
LSQ-VEP-12
263.5
Φ92
S65
S85
S65
G1-1/2 NPT1-1/2
