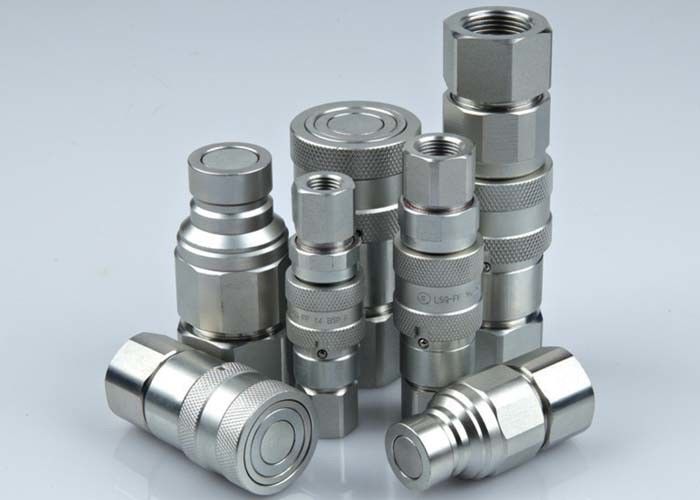

LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-FF

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

2 Inch Flush Face Hydraulic Quick Couplers

,

LSQ-FF flat face hydraulic connectors

,

ISO16028 Standard Hydraulic Quick Couplers

Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 16028 Series, Flat Face
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard

LSQ-FF, ISO16028, Flush Face Type Hydraulic Couplings in Carbon Steel, Chrome Three



Descripton:

Applications:
Songqiao LSQ-FF Series couplings are widely used in the public utility market where hydraulic oil spillage can constitute a serious safety hazard, particularly in overhead bucket hoists that are used for maintenance of high-voltage power transmission lines.These couplings are also used for quick change of hydraulic Tools in construction, railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments.

Body Size(in) 1/4(02) 3/8(03) 1/2(04) 5/8(06) 3/4(08) 1(10) 1-1/2(12) 2(16)
Rated Pressure(PSI) 5000 4350

4350



3625 3625 3000 3000 3000
Rated Flow(GPM) 3 6 12 20 28 50 80 100
Spillage (ML) 0.006 0.012 0.02 0.026 0.032 0.035 0.05 0.1
(max. per disconnect)
Temperature Range -20℃ to +120℃
Standard seal material NBR

New valve design. it can resistance damage from high flow and the pressure of impulse that providing advanced performance.
Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground.
Sleeve mechanism is designed to prevent dirt from entering the internal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also incorporates a dust seal in the spring area.
Steel construction, zinc plated with yellow chromate finish. hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
This Anti –Blowout Nitrile/PTFE bonded seal is designed to prevent blow-out or damage during severe service conditions.
Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. CAUTION: These products are not not to be used as swivels. Rotation under pressure will result in excessive and premature wear.
LSQ-FF Series couplings employ flush valving when connecting or disconnecting. This means that the valves are mated together so that only small amounts of fluid can be lost during disconnection or air inclusion during reconnection.
New chrome plating treatment provides advanced anti-rust performance.
LSQ-FF series conforms to standard of ISO16028.
Compatible with PARKER FEM Series,STUCCHI FIRG Series, AEROQUIP FD89 Series and HANSEN FF Series.


LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard 0
LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard 1

ISO PART NO LS D HEX1 A T
6.3 LSQ-FF-02SF 58.2 28 20 14 G1/4 NPT1/4
10 LSQ-FF-03SF 68.2 32 24 14 G3/8 NPT3/8
10 LSQ-FF-03SF 72.2 32 27 18 G1/2 NPT1/2
12.5 LSQ-FF-04SF 75 38 32 18 G1/2 NPT1/2
12.5 LSQ-FF-04SF 79 38 36 22 G3/4 NPT3/4
16 LSQ-FF-06SF 80 42 36 22 G3/4 NPT3/4
19 LSQ-FF-08SF 99.8 48 41 22 G3/4 NPT3/4
19 LSQ-FF-08SF 99.8 48 41 23.5 G1 NPT1
25 LSQ-FF-10SF 111.5 56 55 24 G1-1/4 NPT1-1/4
- LSQ-FF-12SF 150 79.5 65 30 G1-1/2 NPT1-1/2
- LSQ-FF-16SF 167 98.5 85 31 G2 NPT2




LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard 2

ISO PART NO LP d C HEX2 A T
6.3 LSQ-FF-02PF 49.2 16.1 15.2 20 14 G1/4 NPT1/4
10 LSQ-FF-03PF 55.8 19.7 19.5 24 14 G3/8 NPT3/8
10 LSQ-FF-03PF 59.8 19.7 19.5 27 18 G1/2 NPT1/2
12.5 LSQ-FF-04PF 72 24.5 21.6 32 18 G1/2 NPT1/2
12.5 LSQ-FF-04PF 76 24.5 21.6 36 22 G3/4 NPT3/4
16 LSQ-FF-06PF 75.5 27 21.6 36 22 G3/4 NPT3/4
19 LSQ-FF-08PF 93.8 30 29 41 22 G3/4 NPT3/4
19 LSQ-FF-08PF 93.8 30 29 41 23.5 G1 NPT1
25 LSQ-FF-10PF 90 36 34 55 24 G1-1/4 NPT1-1/4
- LSQ-FF-12PF 112 57 38 65 30 G1-1/2 NPT1-1/2
- LSQ-FF-16PF 123.9 73 40.5 75 31 G2 NPT2


LSQ-FF 2 Inch Flush Face Hydraulic Quick Couplers Professional ISO16028 Standard 3

ISO PART NO L D HEX1 HEX2 T
6.3 LSQ-FF-02 96.2 28 20 20 G1/4 NPT1/4
10 LSQ-FF-03 108.4 32 24 24 G3/8 NPT3/8
10 LSQ-FF-03 116.4 32 27 27 G1/2 NPT1/2
12.5 LSQ-FF-04 129.3 38 32 32 G1/2 NPT1/2
12.5 LSQ-FF-04 137.3 38 36 36 G3/4 NPT3/4
16 LSQ-FF-06 138 42 36 36 G3/4 NPT3/4
19 LSQ-FF-08 172.1 48 41 41 G3/4 NPT3/4
19 LSQ-FF-08 172.1 48 41 41 G1 NPT1
25 LSQ-FF-10 178 56 55 55 G1-1/4 NPT1-1/4
- LSQ-FF-12 233.4 79.5 65 65 G1-1/2 NPT1-1/2
- LSQ-FF-16 251.7 98.5 85 75 G2 NPT2
