ISO 7241-B Hydraulic Quick Coupling with 2000 Psi Pressure and PARKER 60 Series Compatibility

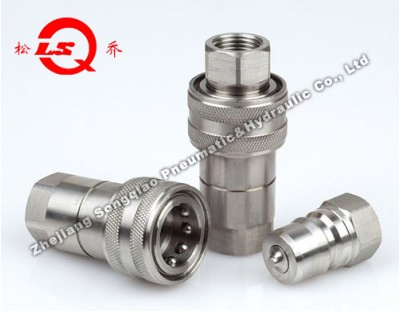

LSQ-S2-SS Close Type Hydraulic Quick Coupling (STAINLESS STEEL 316)

Product Description

The LSQ-S2-SS close type hydraulic quick coupling is constructed from durable stainless steel 316, designed for demanding hydraulic applications where fluid transfer lines require frequent connection and disconnection.

Applications

Ideal for use in:

Construction equipment
Forestry equipment
Agricultural machinery
Oil tools and equipment
Steel mill machinery
Other hydraulic applications requiring minimal fluid loss

Temperature Range (std seals): -20°C to +180°C
Standard seal material: Flourocarbon (VITON)

Technical Specifications

Body Size (in)	1/8	1/4	3/8	1/2	3/4	1
Rated Pressure (PSI)	2000	2000	1500	1500	1000	2000
Rated Flow (GPM)	1	3	6	12	28	50

Key Features

Poppet valves prevent uncoupled leakage
Automatic valve opening when coupled within rated working pressure
Reliable ball-locking mechanism for secure connection
Precision machined from solid bar stock
Conforms to ISO 7241-B standard
Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

Socket Dimensions

ISO	PARTNO.	LS	¢D	HEX1	A	T
5	LSQ-S2-SS-01SF	50	24	17	10	G1/8 NPT1/8
6.3	LSQ-S2-SS-02SF	58	28.5	19	13	G1/4 NPT1/4
10	LSQ-S2-SS-03SF	65	35	24	13	G3/8 NPT3/8
12.5	LSQ-S2-SS-04SF	73.4	42	30	17	G1/2 NPT1/2
20	LSQ-S2-SS-06SF	92	54	36	22	G3/4 NPT3/4
25	LSQ-S2-SS-08SF	103	65	41	23	G1 NPT1

Plug Dimensions

ISO	PARTNO.	LP	d	C	HEX2	A	T
5	LSQ-S2-SS-01PF	31	10.8	19	14	10	G1/8 NPT1/8
6.3	LSQ-S2-SS-02PF	36	14.2	22.8	19	13	G1/4 NPT1/4
10	LSQ-S2-SS-03PF	40	19	25	24	13	G3/8 NPT3/8
12.5	LSQ-S2-SS-04PF	46.5	23.5	28	27	17	G1/2 NPT1/2
20	LSQ-S2-SS-06PF	56	31.5	36	36	22	G3/4 NPT3/4
25	LSQ-S2-SS-08PF	63	37.8	35.5	41	23	G1" NPT1"

Complete Coupling Dimensions

ISO	PARTNO.	L	¢D	HEX1	HEX2	T
5	LSQ-S2-SS-01	62.5	24	17	14	G1/8 NPT1/8
6.3	LSQ-S2-SS-02	72.2	28.5	19	19	G1/4 NPT1/4
10	LSQ-S2-SS-03	80.5	35	24	24	G3/8 NPT3/8
12.5	LSQ-S2-SS-04	91.5	42	30	27	G1/2 NPT1/2
20	LSQ-S2-SS-06	112.5	54	36	36	G3/4 NPT3/4
25	LSQ-S2-SS-08	126.5	65	41	41	G1 NPT1
