Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-S2

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

parker 60 series quick disconnect

,

High Flow Hydraulic Quick Couplers

,

Construction Equipment Hydraulic Quick Connect Couplings

Standard:
ISO 7241-1 Series “B”, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/8' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 7241-1 Series “B”, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/8' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment

LSQ-S2, ISO7241-B Hydraulic Quick Couplings, General Purpose, Parker 60Series



Descripton:

LSQ-S2 Close Type Hydraulic Quick Coupling(Steel)



Applications:

• Industrial hydraulic lines
• Food and chemical processing
• Water and coolant lines
• Mobile equipment
• May be used with some gases



Specifications

Body Size(in) 1/8 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 5000 4000 4000 3000 3000
Rated Flow(GPM) 1 3 6 12 28 50
Temperature Range -20℃ to +120℃
Seal material NBR



LSQ-S2 Series couplings feature:

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-S2 series conforms to the standard of ISO 7241-B.
7.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.



Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa

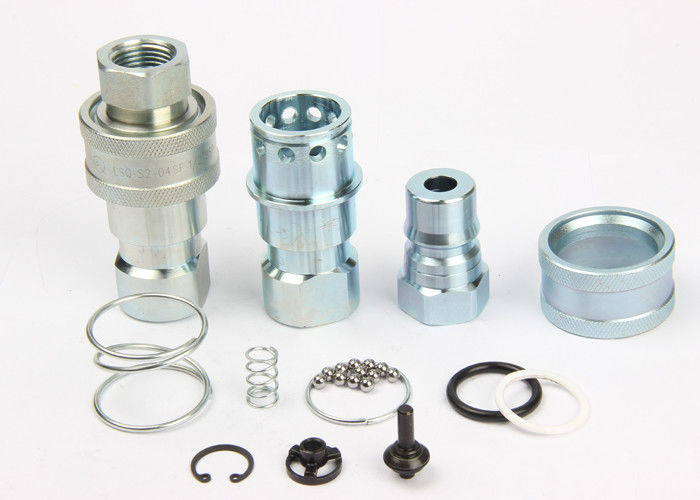

Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment 0

LSQ-S2 Series(1/4",3/8",1/2",3/4",1")

Socket

Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment 1

ISO PARTNO. LS ¢D HEX1 A T
5 LSQ-S2-01SF 48 24 17 9.5 G1/8 NPT1/8
6.3 LSQ-S2-02SF 58 28.5 19 13 G1/4 NPT1/4
10 LSQ-S2-03SF 65 35 24 13 G3/8 NPT3/8
12.5 LSQ-S2-04SF 74 44.5 28.5 20.5 G1/2 NPT1/2
20 LSQ-S2-06SF 92 54 36 22 G3/4 NPT3/4
25 LSQ-S2-08SF 103 63.5 41 23 G1 NPT1



Plug

Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment 2

ISO PARTNO. LP d C HEX2 A T
5 LSQ-S2-01PF 29 10.8 19 14 9.5 G1/8 NPT1/8
6.3 LSQ-S2-02PF 36 14.2 22.8 19 13 G1/4 NPT1/4
10 LSQ-S2-03PF 40 19 25 24 13 G3/8 NPT3/8
12.5 LSQ-S2-04PF 46.5 23.5 28 28.5 20.5 G1/2 NPT1/2
20 LSQ-S2-06PF 56 31.5 36 36 22 G3/4 NPT3/4
25 LSQ-S2-08PF 63 37.8 45 41 23 G1" NPT1"



Coupled

Parker 60 Series High Flow Hydraulic Quick Couplers For Construction Equipment 3

ISO PARTNO. L ¢D HEX1 HEX2 T
5 LSQ-S2-01 58.5 24 17 14 G1/8 NPT1/8
6.3 LSQ-S2-02 72 28.5 19 19 G1/4 NPT1/4
10 LSQ-S2-03 80.5 35 24 24 G3/8 NPT3/8
12.5 LSQ-S2-04 93.5 44.5 28.5 28.5 G1/2 NPT1/2
20 LSQ-S2-06 112.5 54 36 36 G3/4 NPT3/4
25 LSQ-S2-08 126.5 63.5 41 41 G1 NPT1
