Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings

Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings
Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings

Large Image :  Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-ISOA
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: ISO 7241-1 Series “A”, Poppet Valve WP: Working Pressures To 5,000 Psi (345 Bar)
Material: Carbon Steel Size: 1/4' - 1'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls
High Light:

hydraulic line quick connect

,

hydraulic quick release coupling

LSQ-ISOA Hydraulic Couplings in ISO A Carbon Steel, Chrome Three

Descripton:

LSQ-ISOA CLOSE TYPE HYDRAULIC QUICK COUPLING(STEEL)(NEW)
Applications: The LSQ-ISOA Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery, and other demanding hydraulic applications.

Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals)     -20℃to+120℃
Standard seal material     NBR


LSQ-ISOA Series couplings feature:
·New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.
·Poppet valves available to prevent uncoupled leakage.
·Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
·Critical parts are hardened for durability.
·Dependable ball-locking mechanism holds the mating halves together.
·Socket and plug are precision machined from solid bar stock.
·New Chrome plating treatment provides advanced anti-rust performance
·LSQ-ISOA series conforms to the standard of ISO 7241-A
·Compatible with PARKER 6600 Series,FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series

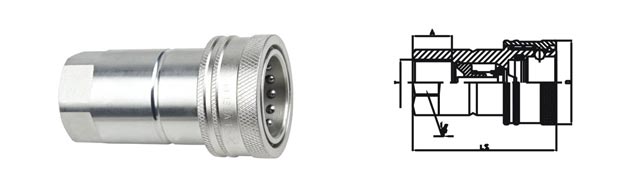

Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings 0
Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings 1

ISO PARTNO. LS ΦD HEX1 A T
6.3 LSQ-ISOA-02SF 50 Φ26 19 13 G1/4 NPT1/4
10 LSQ-ISOA-03SF 57.1 Φ31.5 22 16 G3/8 NPT3/8
12.5 LSQ-ISOA-04SF 66 Φ38.5 27 18 G1/2 NPT1/2
20 LSQ-ISOA-06SF 82.5 Φ48 34 20.5 G3/4 NPT3/4
25 LSQ-ISOA-08SF 100 Φ58 41 20.5 G1 NPT1

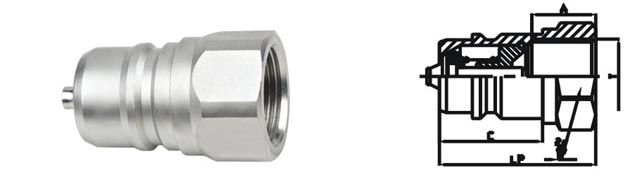

Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings 2

ISO PARTNO. LP d C HEX2 A T
6.3 LSQ-ISOA-02PF 38.5 11.8 15 19 13 G1/4 NPT1/4
10 LSQ-ISOA-03PF 39 17.3 19 22 16 G3/8 NPT3/8
12.5 LSQ-ISOA-04PF 44 20.5 29 27 18 G1/2 NPT1/2
20 LSQ-ISOA-06PF 55 29 29 34 20.5 G3/4 NPT3/4
25 LSQ-ISOA-08PF 66 34.3 35 41 20.5 G1 NPT1

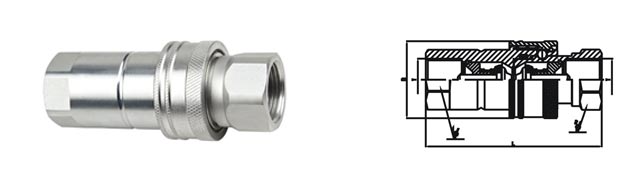

Carbon Steel Hydraulic Quick Connect Couplings , LSQ-ISOA Hydraulic Quick Disconnect Fittings 3

ISO PARTNO. L ¢D HEX1 HEX2 T
6.3 LSQ-ISOA-02 74.2 Φ26 19 19 G1/4 NPT1/4
10 LSQ-ISOA-03 78.5 Φ31.5 22 22 G3/8 NPT3/8
12.5 LSQ-ISOA-04 88.2 Φ38.5 27 27 G1/2 NPT1/2
20 LSQ-ISOA-06 110.4 Φ48 34 34 G3/4 NPT3/4
25 LSQ-ISOA-08 132.9 Φ56 41 41

G1 NPT1
