Minimum Order Quantity: 1
Price: 1
Model NO.: |
LSQ-RD (NON VALVE BRASS) |
Working Pressures: |
1000 To 2000 Psi |
Mechanical Connection: |
Locking Balls |
Body Size: |
1/8, 1/4, 3/8, 1/2 |
Rate Pressure: |
1000-2000 PSI |
Rated Flow: |
3, 6, 12, 12 GPM |
Temperature Range: |
-20ºC To +120ºC |
Test Fluid: |
Oil-200SUS |
Flow Conversion: |
1GPM=3.78L/Min |
Pressure Conversion: |
1PSID=0.0069MPa |
Material Options: |
Brass, 304 Stainless Steel |
Compatibility: |
NITTO TSP Series |
Part Dimensions: |
Multiple Sizes (see Tables) |
Thread Sizes: |
ZG1/8, ZG1/4, ZG3/8, ZG1/2, ZG3/4, ZG1 |
Production Capacity: |
100000 Set/Month |
Model NO.: |
LSQ-RD (NON VALVE BRASS) |
Working Pressures: |
1000 To 2000 Psi |
Mechanical Connection: |
Locking Balls |
Body Size: |
1/8, 1/4, 3/8, 1/2 |
Rate Pressure: |
1000-2000 PSI |
Rated Flow: |
3, 6, 12, 12 GPM |
Temperature Range: |
-20ºC To +120ºC |
Test Fluid: |
Oil-200SUS |
Flow Conversion: |
1GPM=3.78L/Min |
Pressure Conversion: |
1PSID=0.0069MPa |
Material Options: |
Brass, 304 Stainless Steel |
Compatibility: |
NITTO TSP Series |
Part Dimensions: |
Multiple Sizes (see Tables) |
Thread Sizes: |
ZG1/8, ZG1/4, ZG3/8, ZG1/2, ZG3/4, ZG1 |
Production Capacity: |
100000 Set/Month |

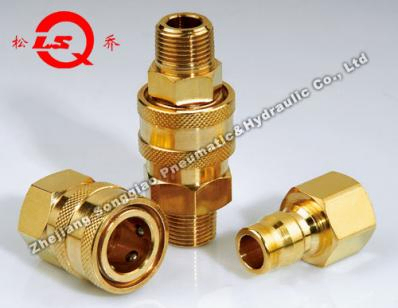

The LSQ-RD Series are non-valved couplings designed for applications requiring maximum flow. Their smooth, open bore offers the lowest pressure drop of any quick coupling design, making them ideal for high-pressure water and steam washers, carpet cleaners, mold coolant lines, and other non-valved applications.
| Body Size (in) | 1/8 | 1/4 | 3/8 | 1/2 |
|---|---|---|---|---|
| Rated Pressure (PSI) Brass Cplr/Npl |
1000 | 1000 | 1000 | 1000 |
| Rated Pressure (PSI) SS Cplr/Npl |
2000 | 2000 | 1500 | 1500 |
| Rated Flow (GPM) | 3 | 6 | 12 | 12 |
| Temperature Range (std seals) | -20ºC to +120ºC | |||
Test Fluid: Oil-200SUS
1GPM = 3.78L/Min
1PSID = 0.0069MPa
| PART NO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01SF | 27 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SF | 32 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SF | 35.8 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SF | 42.6 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SF | 49.5 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SF | 59.3 | 57.8 | 50 | 22 | ZG1 |
| PART NO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01SM | 30 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SM | 42 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SM | 46.3 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SM | 56.1 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SM | 61 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SM | 67.3 | 57.8 | 50 | 22 | ZG1 |
| PART NO. | LP | C | HEX2 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01PF | 26 | 15.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02PF | 35 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PF | 38 | 21.2 | 21 | 13 | ZG3/8 |
| LSQ-RD-04PF | 45 | 24.5 | 29 | 17 | ZG1/2 |
| LSQ-RD-06PF | 50 | 28 | 32 | 18 | ZG3/4 |
| LSQ-RD-08PF | 61 | 36 | 41 | 22 | ZG1 |
| PART NO. | LP | C | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01PM | 32 | 15.5 | 12 | 9 | ZG1/8 |
| LSQ-RD-02PM | 38 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PM | 43 | 21.2 | 19 | 13 | ZG3/8 |
| LSQ-RD-04PM | 52 | 24.5 | 23 | 17 | ZG1/2 |
| LSQ-RD-06PM | 56 | 28 | 29 | 18 | ZG3/4 |
| LSQ-RD-08PM | 73 | 36 | 41 | 22 | ZG1 |
