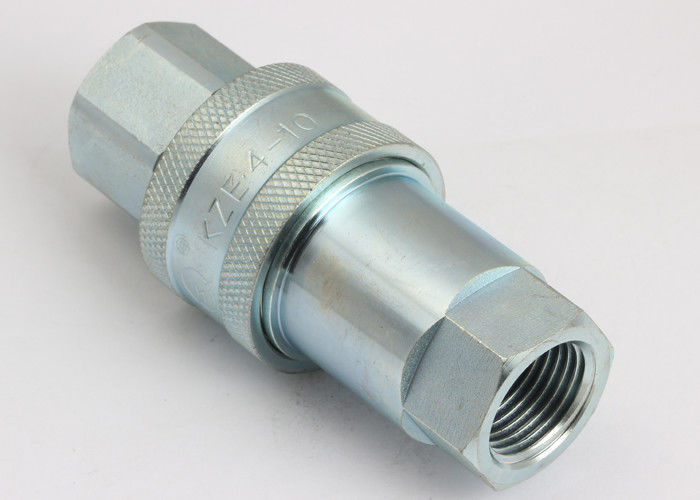

KZE Chinese Type Hydraulic Quick Connect Couplings For Construction Equipment

KZE Chinese Type Hydraulic Quick Connect Couplings For Construction Equipment
KZE Chinese Type Hydraulic Quick Connect Couplings For Construction Equipment

Large Image :  KZE Chinese Type Hydraulic Quick Connect Couplings For Construction Equipment

Product Details:
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: KZE
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Compatible With Chinese Standard WP: Working Pressure To 5000 Psi (345 Bar)
Material: Carbon Steel Size: 1/4"-2"
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls
High Light:

Construction equipment hydraulic quick coupler

,

Chinese Type hydraulic quick release coupling

,

KZE close type Hydraulic Quick Connect Couplings

KZE Chinese Type Hydraulic Quick Released Couplings in Carbon Steel, Chrome Three



Descripton:

KZE close type hydraulic quick coupling(steel)



Applications:

Construction equipment

Forestry equipment

Agricultural machinery


Specifications:

Body Size(in) 1/8 1/4 3/8 1/2 1" 1-1/4" 1-1/2" 2"
Rated Pressure(PSI) 5000 3000 3000 3000 3000 2000 2000 1500
Temperature Range(std seals) -20℃ to +120℃
Standard seal material is NBR



Socket

PARTNO. LS ¢D HEX1 A T
KZE-01SF 49 28 17 9 G1/8
KZE-02SF 58.2 27 19 12.5 G1/4
KZE-03SF 65 35 22 13 G3/8
KZE-04SF 66.2 39.5 27 17 G1/2
KZE-06SF 79.2 49 34 18 G3/4
KZE-08SF 94 56 41 21 1
KZE-10SF 115 69 54 27 G1-1/4
KZE-12SF 124 79 60 27 G1-1/2
KZE-16SF 132.3 102 77 30 G2



Plug
KZE Chinese Type Hydraulic Quick Connect Couplings For Construction Equipment 0



PARTNO. LP C HEX2 A T
KZE-01PF 36 17 17 9 G1/8
KZE-02PF 36 22.5 19 12.5 G1/4
KZE-03PF 40 25 22 13 G3/8
KZE-04PF 46 25 27 17 G1/2
KZE-06PF 55 26 34 18 G3/4
KZE-08PF 59.5 36 41 21 1
KZE-10PF 70 45 52 27 G1-1/4
KZE-12PF 75 49 60 27 G1-1/2
KZE-16PF 80 52 77 30 G2
