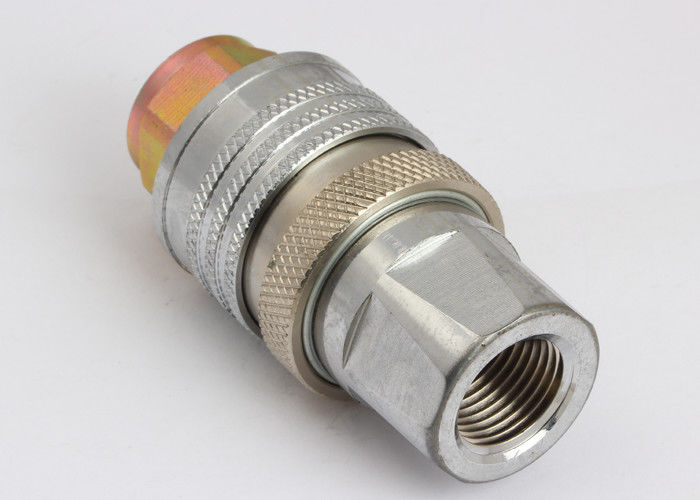

1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings

1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings
1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings

Large Image :  1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings

Product Details:
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-TM
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Compatible With TEMA TH Series WP: Working Pressure To 3000psi (207 Bar)
Material: Carbon Steel Size: 1/2"-1"
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls
High Light:

1 2 hydraulic line quick connect

,

1" hydraulic quick release coupling

,

LSQ-TM Hydraulic Quick Disconnect Fittings

LSQ-TM, TEMA TH Type, Hydraulic Quick Action Couplings in Carbon Steel, Chrome Three



Specifications:

Body Size(in) 1/2 3/4 1
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal NBR



LSQ-TM Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings 0
TPL series (1/2")
1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings 1

PARTNO. T ¢D HEX1 HEX2 L LS LP
LSQ-TM-04 G1/2 40 S30 S27 83.4 66.7 41.5
LSQ-TM-06 G3/4 52 S38.3 S36 94.5 76.4 47
LSQ-TM-08 G1 62 S45 S45 113.8 92.4

56.5
