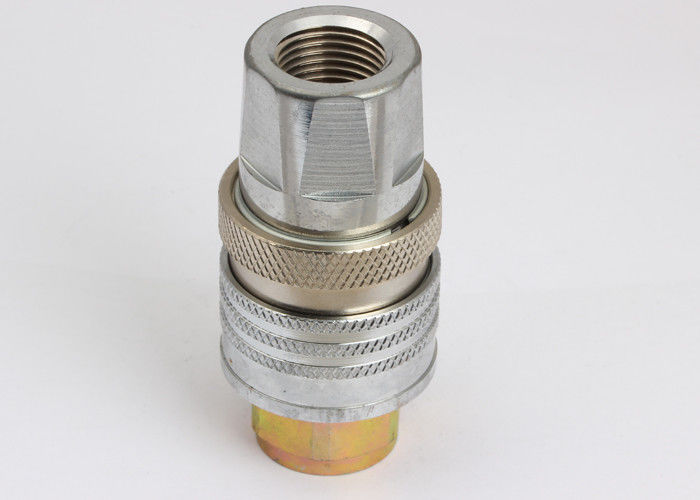

TEMA TH Type High Flow Hydraulic Quick Couplers Chrome Three For Construction Equipment

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-TM

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

TEMA TH Type hydraulic line quick connect

,

Construction Equipment hydraulic quick release coupling

,

hydraulic quick release coupling Chrome Three

Standard:
Compatible With TEMA TH Series
WP:
Working Pressure To 3000psi (207 Bar)
Material:
Carbon Steel
Size:
1/2"-1"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
Compatible With TEMA TH Series
WP:
Working Pressure To 3000psi (207 Bar)
Material:
Carbon Steel
Size:
1/2"-1"
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
TEMA TH Type High Flow Hydraulic Quick Couplers Chrome Three For Construction Equipment

LSQ-TM, TEMA TH Type, Hydraulic Quick Couplings in Carbon Steel, Chrome Three



Descripton:

LSQ-TM close type hydraulic quick coupling(steel)
Applications: The LSQ-TM Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.


Specifications:

Body Size(in) 1/2 3/4 1
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal NBR



LSQ-TM Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.



How to USE:

1. Before connecting clean the mating parts of the couplings to avoid contamination in the circuit.
2. To couple pull back the sleeve of the female coupling, align the female with the male coupling

and push one into the other until both halves are fully connected and release the sleeve.
3. To uncouple pull back the sleeve of the female coupling, pull out the mating half.


Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
TEMA TH Type High Flow Hydraulic Quick Couplers Chrome Three For Construction Equipment 0
TPL series (1/2")
TEMA TH Type High Flow Hydraulic Quick Couplers Chrome Three For Construction Equipment 1

PARTNO. T ¢D HEX1 HEX2 L LS LP
LSQ-TM-04 G1/2 40 S30 S27 83.4 66.7 41.5
LSQ-TM-06 G3/4 52 S38.3 S36 94.5 76.4 47
LSQ-TM-08 G1 62 S45 S45 113.8 92.4

56.5
