Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange Chrome Three

China Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange Chrome Three supplier

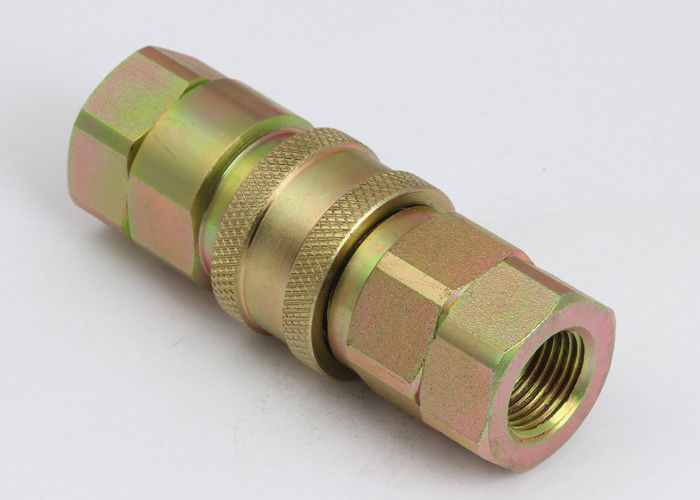

Large Image :  Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange Chrome Three

Product Details:

Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S9

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With FASTER TNV Series, Poppet Valve WP: Working Pressures To 4,000 Psi (275 Bar)
Material: Carbon Steel Size: 1/4' - 1/2'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls

LSQ-S9 Faster TNV Interchange Hydraulic Quick Couplings Chrome Three



Descripton:



LSQ-S9 close type hydraulic quick coupling(steel)


Applications:

Construction equipment

Forestry equipment

Agricultural machinery


Specifications:

Body Size(in) 1/4 3/8 1/2
Rated Pressure(PSI) 4000 4000 4000
Rated Flow(GPM) 3 6 12
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



LSQ-S9 Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with FASTER TNV Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange Chrome Three
LSQ-S9 series (3/8",1/2")


Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange Chrome Three

PART NO. T HEX1 HEX2 ¢D L LS LP
LSQ-S9-02 NPT1/4 22 22 25.2 82.5 49.8 48
LSQ-S9-03 NPT3/8 25.4 25.4 30.5 81.7 50.6 48.8
LSQ-S9-04 NPT1/2 30.2 30.2 35 93.4 57.2 54.5
