KZF, ISO7241-B Hydraulic Quick Action Couplings in FeMale Thread, Stainless Steel SS304
Descripton:
KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.
Specifications
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1(1/4) | 1(1/2) | 2 |
| Rated Pressure(PSI) | 2000 | 2000 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 |
| Temperature Range(std seals) | -20℃ to +120℃ | ||||||||
| Standard seal material | VITON | ||||||||
KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
How to USE:
1. Before connecting clean the mating parts of the couplings to avoid contamination in the circuit.
2. To couple pull back the sleeve of the female coupling, align the female with the male coupling
and push one into the other until both halves are fully connected and release the sleeve.
3. To uncouple pull back the sleeve of the female coupling, pull out the mating half.

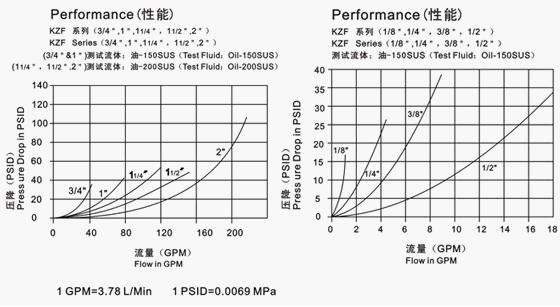

KZF (1/8",1/4",3/8",1/2") KZF (3/4",1",11/4",12/2",2")

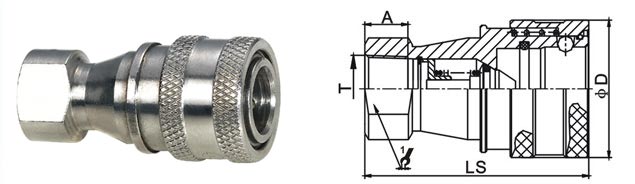

Socket
| ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
| 5 | KZF-01SF | 48 | 24 | 14 | 8 | G1/8 |
| 6.3 | KZF-02SF | 58 | 27 | 19 | 12.5 | ZG1/4 |
| 10 | KZF-03SF | 65 | 35 | 22 | 13 | ZG3/8 |
| 12.5 | KZF-04SF | 72.5 | 45 | 29 | 14 | ZG1/2 |
| 20 | KZF-06SF | 88 | 54 | 36 | 17 | ZG3/4 |
| 25 | KZF-08SF | 102 | 64.5 | 41 | 23 | ZG1 |
| 31.5 | KZF-10SF | 115 | 69 | 54 | 27 | ZG1-1/4 |
| 40 | KZF-12SF | 124 | 79 | 60 | 27 | ZG1-1/2 |
| 50 | KZF-16SF | 132 | 102 | 77 | 30 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | ||||||

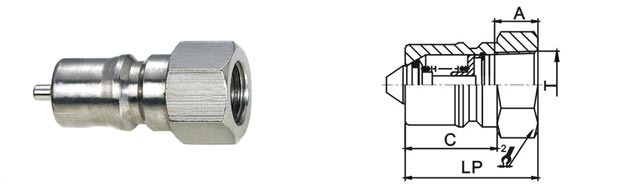

Plug
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 5 | KZF-01PF | 29 | 10.8 | 19 | 14 | 8 | G1/8 |
| 6.3 | KZF-02PF | 36 | 14.2 | 22.5 | 17 | 12.5 | ZG1/4 |
| 10 | KZF-03PF | 40 | 19 | 25 | 22 | 13 | ZG3/8 |
| 12.5 | KZF-04PF | 44 | 23.5 | 28 | 27 | 14 | ZG1/2 |
| 20 | KZF-06PF | 52 | 31.4 | 36 | 36 | 17 | ZG3/4 |
| 25 | KZF-08PF | 62 | 37.8 | 40 | 41 | 23 | ZG1 |
| 31.5 | KZF-10PF | 70 | 45 | 45 | 52 | 27 | ZG1-1/4 |
| 40 | KZF-12PF | 75 | 50 | 49 | 60 | 27 | ZG1-1/2 |
| 50 | KZF-16PF | 80 | 70 | 52 | 77 | 30 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | |||||||

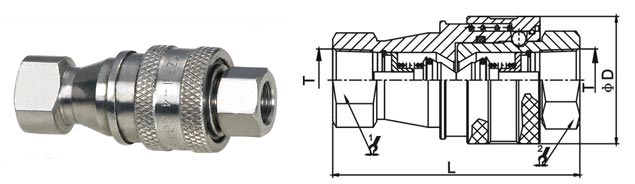

Coupling Fitting
| ISO | PART NO. | L | ￠D | HEX1 | HEX2 | T |
| 5 | KZF-01 | 58.5 | 24 | 14 | 14 | G1/8 |
| 6.3 | KZF-02 | 72.5 | 28 | 19 | 17 | ZG1/4 |
| 10 | KZF-03 | 80.5 | 35 | 22 | 22 | ZG3/8 |
| 12.5 | KZF-04 | 89 | 45 | 29 | 27 | ZG1/2 |
| 20 | KZF-06 | 105 | 54 | 36 | 36 | ZG3/4 |
| 25 | KZF-08 | 124.5 | 64.5 | 41 | 41 | ZG1 |
| 31.5 | KZF-10 | 140.5 | 69 | 54 | 52 | ZG1-1/4 |
| 40 | KZF-12 | 150.5 | 79 | 60 | 60 | ZG1-1/2 |
| 50 | KZF-16 | 160.5 | 102 | 77 | 77 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | ||||||
