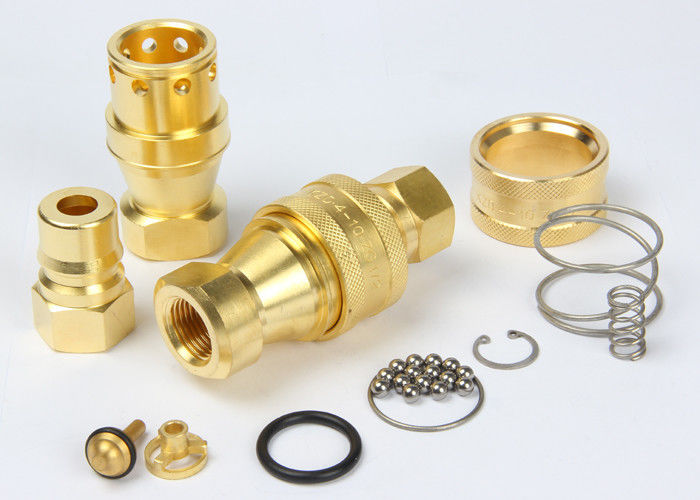

Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water

Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water
Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water

Large Image :  Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: KZD
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: ISO 7241-1 Series “B”, Poppet Valve WP: Working Pressures To 1,000 Psi (69 Bar)
Material: Brass Size: 1/8' - 2'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls
High Light:

Brass Hydraulic Quick Couplers

,

NPTF Female Thread Hydraulic Quick Couplers

,

Medium pressure Hydraulic Quick Connect Couplings

KZD, ISO7241-B Hydraulic Quick Connect Couplings in Female Thread, Brass

Descripton:



KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications:

Chemicals, Water, Steam, and some gases.



Specifications

Body Size(in) 1/8 1/4 3/8 1/2 3/4 1 1(1/4) 1(1/2) 2
Rated Pressure(PSI) 1000 1000 1000 1000 1000 1000 800 800 800
Rated Flow(GPM) 1 3 6 12 28 50 75 100 150
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



KZD Series couplings feature:

1. Poppet valves available to prevent uncoupled leakage.

2. Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.

3. Dependable ball-locking mechanism holds the mating halves together.

4. Socket and plug are precision machined from solid bar stock.

5. KZD series conforms to the standard ISO7241-B.

6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.



Performance: Test Fluid:Oil-150SUS.

Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water 0



                   KZD (1/8",1/4",3/8",1/2")                                        KZD (3/4",1",11/4",11/2",2")

Socket

Brass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water 1

ISO PARTNO. LS ¢D HEX1 A T
5 KZD-01SF 48 24 14 8 G1/8
6.3 KZD-02SF 58 27 19 12.5 ZG1/4
10 KZD-03SF 65 35 22 13 ZG3/8
12.5 KZD-04SF 72.5 45 29 14 ZG1/2
20 KZD-06SF 88 54 36 17 ZG3/4
25 KZD-08SF 102 64.5 41 23 ZG1
31.5 KZD-10SF 115 69 54 27 ZG1-1/4
40 KZD-12SF 124 79 60 27 ZG1-1/2
50 KZD-16SF 132 102 77 30 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

PlugBrass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water 2

ISO PARTNO. LP d C HEX2 A T
5 KZD-01PF 29 10.8 19 14 8 G1/8
6.3 KZD-02PF 36 14.2 22.5 17 12.5 ZG1/4
10 KZD-03PF 40 19 25 22 13 ZG3/8
12.5 KZD-04PF 44 23.5 28 27 14 ZG1/2
20 KZD-06PF 52 31.4 36 36 17 ZG3/4
25 KZD-08PF 62 37.8 40 41 23 ZG1
31.5 KZD-10PF 70 45 45 52 27 ZG1-1/4
40 KZD-12PF 75 50 49 60 27 ZG1-1/2
50 KZD-16PF 80 70 52 77 30 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

CoupledBrass Hydraulic Quick Couplers Under Pressure NPTF Female Thread For Water 3

ISO PARTNO. L ¢D HEX1 HEX2 T
5 KZD-01 58.5 24 14 14 G1/8
6.3 KZD-02 72.5 28 19 17 ZG1/4
10 KZD-03 80.5 35 22 22 ZG3/8
12.5 KZD-04 89 45 29 27 ZG1/2
20 KZD-06 105 54 36 36 ZG3/4
25 KZD-08 124.5 64.5 41 41 ZG1
31.5 KZD-10 140.5 69 54 52 ZG1-1/4
40 KZD-12 150.5 79 60 60 ZG1-1/2
50 KZD-16 160.5 102 77 77 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B
