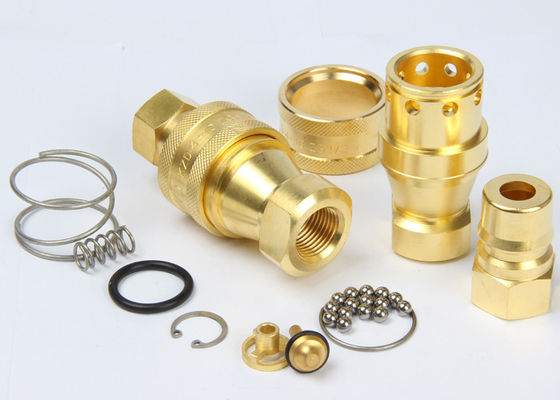

Precision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: KZD

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
Highlight:

2'' Brass hydraulic line quick connect

,

Hydraulic Quick Connect Couplings KZD

,

Equipment Maintenance Hydraulic Quick Connect Couplings

Standard:
ISO 7241-1 Series “B”, Poppet Valve
WP:
Working Pressures To 1,000 Psi (69 Bar)
Material:
Brass
Size:
1/8' - 2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 7241-1 Series “B”, Poppet Valve
WP:
Working Pressures To 1,000 Psi (69 Bar)
Material:
Brass
Size:
1/8' - 2'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Precision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance

KZD, ISO7241-B Hydraulic Quick Release Couplings in Female Thread, Brass



Descripton:



KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications: KZD couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases.





Specifications

Body Size(in) 1/8 1/4 3/8 1/2 3/4 1 1(1/4) 1(1/2) 2
Rated Pressure(PSI) 1000 1000 1000 1000 1000 1000 800 800 800
Rated Flow(GPM) 1 3 6 12 28 50 75 100 150
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



KZD Series couplings feature:

1.KZD series conforms to the standard ISO7241-B.

2.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.



Performance: Test Fluid:Oil-150SUS.

Precision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance 0



                   KZD (1/8",1/4",3/8",1/2")                                        KZD (3/4",1",11/4",11/2",2")

Socket

Precision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance 1

ISO PARTNO. LS ¢D HEX1 A T
5 KZD-01SF 48 24 14 8 G1/8
6.3 KZD-02SF 58 27 19 12.5 ZG1/4
10 KZD-03SF 65 35 22 13 ZG3/8
12.5 KZD-04SF 72.5 45 29 14 ZG1/2
20 KZD-06SF 88 54 36 17 ZG3/4
25 KZD-08SF 102 64.5 41 23 ZG1
31.5 KZD-10SF 115 69 54 27 ZG1-1/4
40 KZD-12SF 124 79 60 27 ZG1-1/2
50 KZD-16SF 132 102 77 30 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

PlugPrecision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance 2

ISO PARTNO. LP d C HEX2 A T
5 KZD-01PF 29 10.8 19 14 8 G1/8
6.3 KZD-02PF 36 14.2 22.5 17 12.5 ZG1/4
10 KZD-03PF 40 19 25 22 13 ZG3/8
12.5 KZD-04PF 44 23.5 28 27 14 ZG1/2
20 KZD-06PF 52 31.4 36 36 17 ZG3/4
25 KZD-08PF 62 37.8 40 41 23 ZG1
31.5 KZD-10PF 70 45 45 52 27 ZG1-1/4
40 KZD-12PF 75 50 49 60 27 ZG1-1/2
50 KZD-16PF 80 70 52 77 30 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

CoupledPrecision Machining Hydraulic Quick Connect Couplings KZD For Equipment Maintenance 3

ISO PARTNO. L ¢D HEX1 HEX2 T
5 KZD-01 58.5 24 14 14 G1/8
6.3 KZD-02 72.5 28 19 17 ZG1/4
10 KZD-03 80.5 35 22 22 ZG3/8
12.5 KZD-04 89 45 29 27 ZG1/2
20 KZD-06 105 54 36 36 ZG3/4
25 KZD-08 124.5 64.5 41 41 ZG1
31.5 KZD-10 140.5 69 54 52 ZG1-1/4
40 KZD-12 150.5 79 60 60 ZG1-1/2
50 KZD-16 160.5 102 77 77 ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B
