Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: KZD
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
ISO 7241-1 Series “B”, Poppet Valve |
WP: |
Working Pressures To 1,000 Psi (69 Bar) |
Material: |
Brass |
Size: |
1/8' - 2' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
Standard: |
ISO 7241-1 Series “B”, Poppet Valve |
WP: |
Working Pressures To 1,000 Psi (69 Bar) |
Material: |
Brass |
Size: |
1/8' - 2' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |

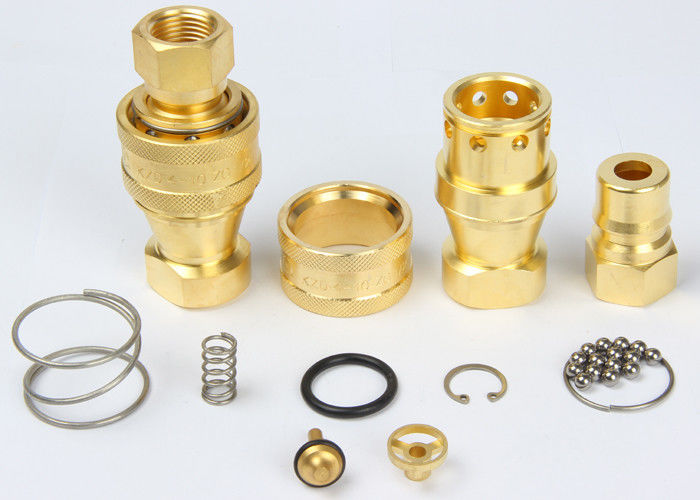

KZD, ISO7241-B Hydraulic Quick Couplings in Female Thread, Brass
Descripton:
KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications: KZD coupling a poppet valve quick couplings series interchangeable with international standard ISO 7241-1 “B”, manufactured in brass. “KZD” series offers corrosive resistance for applications compatible with brass in industrial applications.
Specifications
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1(1/4) | 1(1/2) | 2 |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 |
| Temperature Range(std seals) | -20℃ to +120℃ | ||||||||
| Standard seal material | NBR | ||||||||
KZD Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZD series conforms to the standard ISO7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Performance: Test Fluid:Oil-150SUS.
KZD (1/8",1/4",3/8",1/2") KZD (3/4",1",11/4",11/2",2")
Socket
| ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
| 5 | KZD-01SF | 48 | 24 | 14 | 8 | G1/8 |
| 6.3 | KZD-02SF | 58 | 27 | 19 | 12.5 | ZG1/4 |
| 10 | KZD-03SF | 65 | 35 | 22 | 13 | ZG3/8 |
| 12.5 | KZD-04SF | 72.5 | 45 | 29 | 14 | ZG1/2 |
| 20 | KZD-06SF | 88 | 54 | 36 | 17 | ZG3/4 |
| 25 | KZD-08SF | 102 | 64.5 | 41 | 23 | ZG1 |
| 31.5 | KZD-10SF | 115 | 69 | 54 | 27 | ZG1-1/4 |
| 40 | KZD-12SF | 124 | 79 | 60 | 27 | ZG1-1/2 |
| 50 | KZD-16SF | 132 | 102 | 77 | 30 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | ||||||
Plug
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 5 | KZD-01PF | 29 | 10.8 | 19 | 14 | 8 | G1/8 |
| 6.3 | KZD-02PF | 36 | 14.2 | 22.5 | 17 | 12.5 | ZG1/4 |
| 10 | KZD-03PF | 40 | 19 | 25 | 22 | 13 | ZG3/8 |
| 12.5 | KZD-04PF | 44 | 23.5 | 28 | 27 | 14 | ZG1/2 |
| 20 | KZD-06PF | 52 | 31.4 | 36 | 36 | 17 | ZG3/4 |
| 25 | KZD-08PF | 62 | 37.8 | 40 | 41 | 23 | ZG1 |
| 31.5 | KZD-10PF | 70 | 45 | 45 | 52 | 27 | ZG1-1/4 |
| 40 | KZD-12PF | 75 | 50 | 49 | 60 | 27 | ZG1-1/2 |
| 50 | KZD-16PF | 80 | 70 | 52 | 77 | 30 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | |||||||
Coupled
| ISO | PARTNO. | L | ￠D | HEX1 | HEX2 | T |
| 5 | KZD-01 | 58.5 | 24 | 14 | 14 | G1/8 |
| 6.3 | KZD-02 | 72.5 | 28 | 19 | 17 | ZG1/4 |
| 10 | KZD-03 | 80.5 | 35 | 22 | 22 | ZG3/8 |
| 12.5 | KZD-04 | 89 | 45 | 29 | 27 | ZG1/2 |
| 20 | KZD-06 | 105 | 54 | 36 | 36 | ZG3/4 |
| 25 | KZD-08 | 124.5 | 64.5 | 41 | 41 | ZG1 |
| 31.5 | KZD-10 | 140.5 | 69 | 54 | 52 | ZG1-1/4 |
| 40 | KZD-12 | 150.5 | 79 | 60 | 60 | ZG1-1/2 |
| 50 | KZD-16 | 160.5 | 102 | 77 | 77 | ZG2 |
| Note: Only size 01 to 08 conform to the standard of ISO 7241-B | ||||||
