LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-S6

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
Highlight:

LSQ-S6 Hydraulic Quick Action Couplings

,

Carbon Steel hydraulic hose quick release coupling

,

1'' Hydraulic Quick Action Couplings

Standard:
ISO 7241-1 Series “A”, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 7241-1 Series “A”, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size

LSQ-S6 Hydraulic Quick Action Couplings in ISO A Carbon Steel, Chrome Three, Middle East Type

Descripton:

LSQ-S6 close type hydraulic quick coupling(steel)
The LSQ-S6 Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR

LSQ-S6 Series couplings feature:
• Interchangeability: ISO 7241-1 series “A” •
• Valve system: Poppet valve
• Surface treatment: CrIII zinc plated
• Mechanical connection: Locking balls •

Connection system: Pulling back the sleeve and pushing one half towards the other
• Seals: standard in NBR (Nitrile)
• Disconnection system: Pulling back the sleeve
• Connection with residual pressure: Not allowed •
• Disconnection with residual pressure: Not allowed
• Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

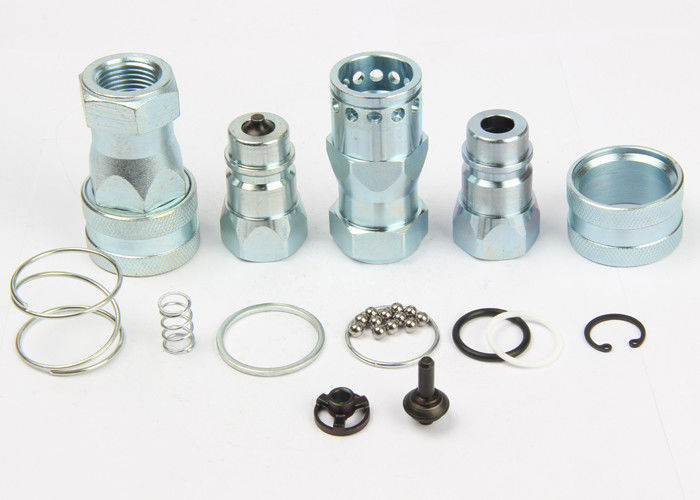

LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size 0
LSQ-S6 Series(1/4",3/8",1/2",3/4",1")
Socket
LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size 1
ISO PARTNO. LS ¢D HEX1 A T
6.3 LSQ-S6-02SF 50 26 19 13 G1/4 NPT1/4
10 LSQ-S6-03SF 56 31.5 24 14 G3/8 NPT3/8
12.5 LSQ-S6-04SF 66 38.6 30 16 G1/2 NPT1/2
20 LSQ-S6-06SF 82 46.5 38 20 G3/4 NPT3/4
25 LSQ-S6-08SF 96.5 56 45 22 G1" NPT1"
Plug
LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size 2
ISO PARTNO. LP d C HEX2 A T
6.3 LSQ-S6-02PF 35.5 11.8 15.2 19 13 G1/4 NPT1/4
10 LSQ-S6-03PF 36.5 17.3 21.4 22 14 G3/8 NPT3/8
12.5 LSQ-S6-04PF 46 20.5 29 27 16 G1/2 NPT1/2
20 LSQ-S6-06PF 54.5 29 28 34 20 G3/4 NPT3/4
25 LSQ-S6-08PF 62 34.3 35.5 41 22 G1" NPT1"
Coupled
LSQ-S6 Hydraulic Quick Action Couplings Carbon Steel 1/4'' - 1'' Size 3
ISO PARTNO. L ¢D HEX1 HEX2 T
6.3 LSQ-S6-02 71.1 26 19 19 G1/4 NPT1/4
10 LSQ-S6-03 75 31.5 24 22 G3/8 NPT3/8
12.5 LSQ-S6-04 90.5 38.6 30 27 G1/2 NPT1/2
20 LSQ-S6-06 109.5 46.5 38 34 G3/4 NPT3/4
25 LSQ-S6-08 122 56 45 41 G1" NPT1"
