1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel

Name: 1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel
Brand: SONGQIAO
SKU: LSQ-S5/LSQ-S5C
Rating: 4.8 (143 reviews)

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-S5/LSQ-S5C

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                1/2 Inch Hydraulic Quick Release Coupling, Series A hydraulic quick release coupling, Locking Balls Connection Hydraulic Coupling


Standard:	ISO 5675 Series, Poppet Valve	WP:	Working Pressures To 3,000 Psi (207 Bar)
Material:	Carbon Steel	Size:	1/2''
Thread:	BSPP, BSPT, NPT, NPTF, SAE	Connection:	Locking Balls

Standard:	ISO 5675 Series, Poppet Valve
WP:	Working Pressures To 3,000 Psi (207 Bar)
Material:	Carbon Steel
Size:	1/2''
Thread:	BSPP, BSPT, NPT, NPTF, SAE
Connection:	Locking Balls

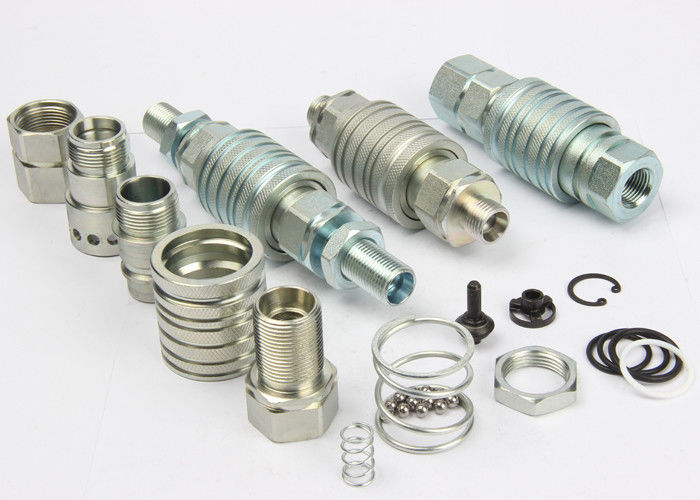

1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel

LSQ-S5/LSQ-S5C(Bulkhead), ISO5675, Push/Pull/Breakaway Sleeve Type Hydraulic Quick Couplings

Descripton:

Applications: “LSQ-S5/LSQS5C” is a ball or poppet valve female coupling with a panel mounting double acting sleeve that allows connection and disconnection operation with a push-pull action that acts as a
breakaway function. They are mainly used in agricultural tractor applications where the breakaway function is requested to avoid breakage of the hydraulic connections during unintended disconnection.
It is available in size 1/2 for interchangeability in according ISO 7241-1 series “A”.

Applications:

• Hydraulic Loaders
• Add-on hydraulic circuits
• Implement breakaway
• Hydraulic tools

Specifications:

Body Size(in)	1/2
Rated Pressure(PSI)	3000
Rated Flow(GPM)	12
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

LSQ-S5 and LSQ-S5C Series Couplings feature:
1. Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4. Critical parts are hardened for durability.
5. Dependable ball-locking mechanism holds the mating halves together.
6. Socket and plug are precision machined from solid bar stock.
7. LSQ-S5 series conforms to the standard of ISO5675.

8. Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

Performance:Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 0
LSQ-S5 Series(1/2")

Socket

ISO	PARTNO.	LS	￠D	HEX1	T
12.5	LSQ-S5-04SF3/8	66	38	27	3/8BSP NPT3/8
12.5	LSQ-S5-04SF1/2	66	38	27	1/2BSP NPT1/2
12.5	LSQ-S5-04SF3/4	69	38	34	3/4BSP NPT3/4
12.5	LSQ-S5-04SFM14	66	38	27	M14*1.5
12.5	LSQ-S5-04SFM16	66	38	27	M16*1.5
12.5	LSQ-S5-04SFM18	66	38	27	M18*1.5
12.5	LSQ-S5-04SFM22	66	38	27	M22*1.5

Plug
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 2

ISO	PARTNO.	LP	d	C	HEX2	T
12.5	LSQ-S5-04PF3/8	61.5	20.5	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04PF1/2	44	20.5	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04PF3/4	64.5	20.5	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04PFM14	61.5	20.5	27	27	M14*1.5
12.5	LSQ-S5-04PFM16	61.5	20.5	27	27	M16*1.5
12.5	LSQ-S5-04PFM18	61.5	20.5	27	27	M18*1.5
12.5	LSQ-S5-04PFM22	44	20.5	27	27	M22*1.5

Coupled
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 3

ISO	PARTNO.	L	￠D	HEX1	HEX2	T
12.5	LSQ-S5-04F3/8	105.5	38	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04F1/2	105.5	38	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04F3/4	105.5	38	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04FM14	105.5	38	27	27	M14*1.5
12.5	LSQ-S5-04FM16	105.5	38	27	27	M16*1.5
12.5	LSQ-S5-04FM18	105.5	38	27	27	M18*1.5
12.5	LSQ-S5-04FM22	105.5	38	27	27	M22*1.5

|--LSQ-S5 Socket--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 4

ISO	PARTNO.	LS	￠D	HEX1	A	T
12.5	LSQ-S5-04SM8L	73.5	38	27	12	M14*1.5
12.5	LSQ-S5-04SM10L	73.5	38	27	12	M16*1.5
12.5	LSQ-S5-04SM12L	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM15L	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM18L	75.5	38	27	14	M26*1.5
12.5	LSQ-S5-04SM10S	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM12S	73.5	38	27	12	M20*1.5
12.5	LSQ-S5-04SM14S	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM16S	75.5	38	27	14	M24*1.5
12.5	LSQ-S5-04SM20S	77.5	38	30	16	M30*2

|--LSQ-S5 Plug--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 5

ISO	PARTNO.	LP	d	C	HEX1	A	T
12.5	LSQ-S5-04PM8L	58.5	20.5	27	27	12	M14*1.5
12.5	LSQ-S5-04PM10L	58.5	20.5	27	27	12	M16*1.5
12.5	LSQ-S5-04PM12L	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM15L	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM18L	60.5	20.5	27	27	14	M26*1.5
12.5	LSQ-S5-04PM10S	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM12S	58.5	20.5	27	27	12	M20*1.5
12.5	LSQ-S5-04PM14S	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM16S	60.5	20.5	27	27	14	M24*1.5
12.5	LSQ-S5-04PM20S	62.5	20.5	27	30	16	M30*2

|--LSQ-S5 Coupled--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 6

ISO	PARTNO.	L	D	HEX1	HEX2	T
12.5	LSQ-S5-04-8L	109.5	38	27	27	M14*1.5
12.5	LSQ-S5-04-10L	109.5	38	27	27	M16*1.5
12.5	LSQ-S5-04-12L	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-15L	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-18L	113.5	38	27	27	M26*1.5
12.5	LSQ-S5-04-10S	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-12S	109.5	38	27	27	M20*1.5
12.5	LSQ-S5-04-14S	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-16S	113.5	38	27	27	M24*1.5
12.5	LSQ-S5-04-20S	115.5	38	30	30	M30*2

|--LSQ-S5C Socket--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 7

ISO	PARTNO.	LS	￠D	HEX1	HEX2	T
12.5	LSQ-S5C-04SM8L	87	38	27	19	M14*1.5
12.5	LSQ-S5C-04SM10L	87	38	27	24	M16*1.5
12.5	LSQ-S5C-04SM12L	87	38	27	24	M18*1.5
12.5	LSQ-S5C-04SM15L	89	38	27	27	M22*1.5
12.5	LSQ-S5C-04SM18L	89	38	27	30	M26*1.5
12.5	LSQ-S5C-04SM10S	87	38	27	24	M18*1.5
12.5	LSQ-S5C-04SM12S	87	38	27	27	M20*1.5
12.5	LSQ-S5C-04SM14S	89	38	27	27	M22*1.5
12.5	LSQ-S5C-04SM16S	89	38	27	30	M24*1.5
12.5	LSQ-S5C-04SM20S	96	38	30	36	M30*2

|--LSQ-S5C Plug--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 8

ISO	PARTNO.	LP	d	C	HEX1	HEX3	T
12.5	LSQ-S5C-04PM8L	72	20.5	27	19	27	M14*1.5
12.5	LSQ-S5C-04PM10L	72	20.5	27	24	27	M16*1.5
12.5	LSQ-S5C-04PM12L	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM15L	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM18L	74	20.5	27	30	27	M26*1.5
12.5	LSQ-S5C-04PM10S	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM12S	72	20.5	27	27	27	M20*1.5
12.5	LSQ-S5C-04PM14S	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM16S	74	20.5	27	30	27	M24*1.5
12.5	LSQ-S5C-04PM20S	81	20.5	27	36	30	M30*2

|--LSQ-S5C Coupling Fitting--|
1/2 Inch Hydraulic Quick Release Coupling Locking Balls Connection In Carbon Steel 9

ISO	PART NO.	L	￠D	HEX1	HEX2	HEX3	T
12.5	LSQ-S5C-04-8L	137.5	38	27	19	27	M14*1.5
12.5	LSQ-S5C-04-10L	137.5	38	27	24	27	M16*1.5
12.5	LSQ-S5C-04-12L	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-15L	143.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-18L	143.5	38	27	30	27	M26*1.5
12.5	LSQ-S5C-04-10S	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-12S	137.5	38	27	27	27	M20*1.5
12.5	LSQ-S5C-04-14S	137.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-16S	143.5	38	27	30	27	M24*1.5
12.5	LSQ-S5C-04-20S	145.5	38	30	36	30	M30*2
