Metric High Pressure Hydraulic Couplings 1/8" LKJI Locking Balls Connection

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LKJI

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

quick connect coupling high pressure

,

high pressure hydraulic quick release couplings

Standard:
High Pressure, Poppet Valve
WP:
Working Pressures To10,000 Psi (700 Bar)
Material:
Carbon Steel
Size:
1/8'
Thread:
Metric
Connection:
Locking Balls
Standard:
High Pressure, Poppet Valve
WP:
Working Pressures To10,000 Psi (700 Bar)
Material:
Carbon Steel
Size:
1/8'
Thread:
Metric
Connection:
Locking Balls
Metric High Pressure Hydraulic Couplings 1/8" LKJI Locking Balls Connection

LKJI High Pressure, Hydraulic Couplings in Carbon Steel, Chrome Three



Descripton:

Applications:LSQ-TE series couplings are found in the construction, railway maintenance and
House moving industries. Used on hydraulic jacking equipment, these couplers eliminate costly
Down time caused by improperly connected threaded types. For use where high pressure capability is required coupled with positive coupling action. Considerably faster to use than threaded types.



LSQ-TE Features:
1. Positive valve stop, the perch maintains valve alignment and provides metal to metal valve stop to ensure that the valves open fully, every time.
2. Precision machined valves with electrometric seal provide for positive shut-off upon disconnection.
3. Hardened nipples and sleeves and solid barstock construction make for a quality coupling with maximum resistance to damage from hydraulic and mechanical shock.
4. Durable ball-locking mechanism assures reliable connection every time. A large number of locking balls distributes and work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life.
5. Sleeve locking mechanism prevents accidental disconnection when coupling is dragged along the ground.

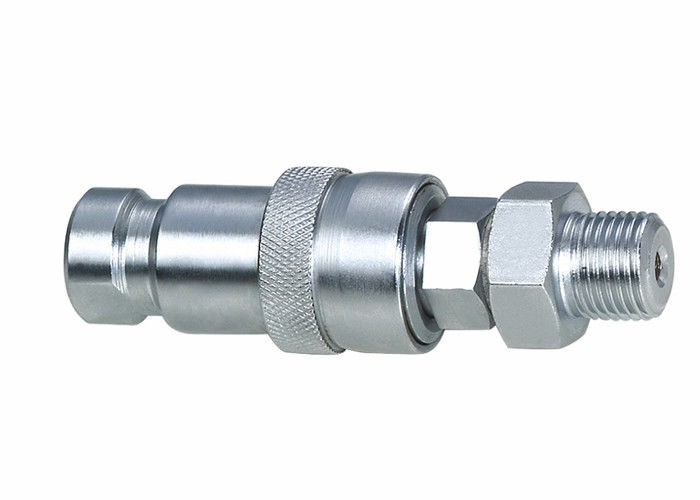

Metric High Pressure Hydraulic Couplings 1/8" LKJI Locking Balls Connection 0
Applicable for the connectors between equipment of hydraulic pipe in super high pressure separate type.
