Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-PK

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

hydraulic quick coupler

,

hydraulic line quick connect

Standard:
ISO 5675 Series, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls
Standard:
ISO 5675 Series, Poppet Valve
WP:
Working Pressures To 5,000 Psi (345 Bar)
Material:
Carbon Steel
Size:
1/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Locking Balls

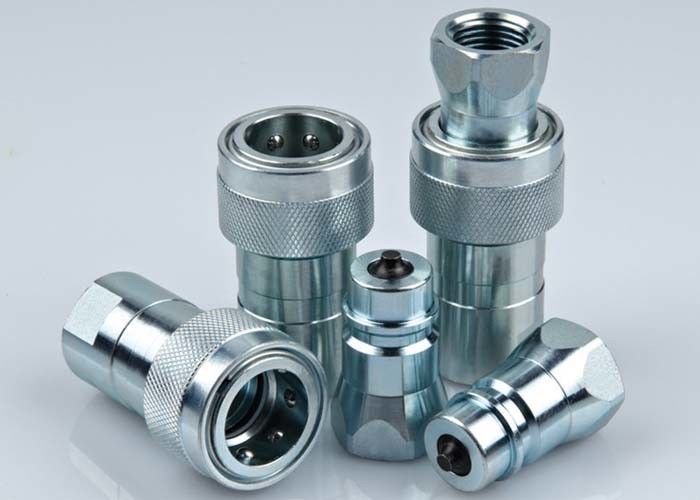

Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread

LSQ-PK, ISO5675, Poppet Valve Type Hydraulic Couplings in Carbon Steel, Chrome Three

Descripton:
LSQ-PK Close Type Hydraulic Quick Coupling (Steel)
Applications: The LSQ-PK Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR


LSQ-PK Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socket and plug are precision machined from solid bar stock.
6. LSQ-PK series conforms to the standard of ISO5675.
7. Compatible with PARKER 4000 Series and FASTER NV/NS Series
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread 0
LSQ-PK Series(1/4",3/8",1/2",3/4",1")
Socket
Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread 1

ISO PARTNO. LS ¢D HEX1 A T
6.3 LSQ-PK-02SF 55.5 27.6 22.2 12.5 G1/4 NPT1/4
10 LSQ-PK-03SF 60.5 34 24 13 G3/8 NPT3/8
12.5 LSQ-PK-04SF 68 38 27 16 G1/2 NPT1/2
20 LSQ-PK-06SF 83 47.5 35 18 G3/4 NPT3/4
20 LSQ-PK-06SF(E) 82.5 48.2 34 19 G3/4 NPT3/4
25 LSQ-PK-08SF 97.5 56.2 41 21 G1 NPT1
Note:LSQ-PK-06SF PARKER interchange,LSQ-PK-06SF(E) FASTER) interchange


Plug
Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread 2

ISO PARTNO. LP d C HEX2 A T
6.3 LSQ-PK-02PF 36 14.2 18.5 19 12.5 G1/4 NPT1/4
10 LSQ-PK-03PF 40 19 22 24 13 G3/8 NPT3/8
12.5 LSQ-PK-04PF 46 20.5 29 27 18 G1/2 NPT1/2
20 LSQ-PK-06PF 51 26.9 28.5 33.3 18 G3/4 NPT3/4
20 LSQ-PK-06PF(E) 53.5 28 32 34 19 G3/4 NPT3/4
25 LSQ-PK-08PF 64 31.3 34 41 21 G1" NPT1"
Note:LSQ-PK-06PF PARKER interchange,LSQ-PK-06PF(E) FASTER) interchange


Coupled
Single Handed Operation Hydraulic Connectors Fittings LSQ-PK NPTF Thread 3

ISO PARTNO. L ¢D HEX1 HEX2 T
6.3 LSQ-PK-02 74.2 27.6 22.2 19 G1/4 NPT1/4
10 LSQ-PK-03 80.2 34 24 24 G3/8 NPT3/8
12.5 LSQ-PK-04 92.3 38.5 27 27 G1/2 NPT1/2
20 LSQ-PK-06 102.2 47.5 35 33.3 G3/4 NPT3/4
20 LSQ-PK-06(E) 107.8 48.2 34 34 G3/4 NPT3/4
25 LSQ-PK-08 128.8 56.2 41 41 G1 NPT1
Note:LSQ-PK-06 PARKER interchange,LSQ-PK-06 (E) FASTER) interchange
